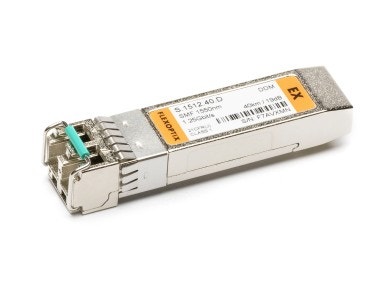

1G SFP EX 40 km, λ1550 nm, DDM, LC-Duplex, Singlemode
- 1550 nm
- 40 km
- 1.25 G
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | EX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 40 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 19 dB |
| Transmit min/max per lane | -5 dBm / 0 dBm |
| Receiver min/max per lane | -24 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1500 - 1580 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1260 - 1600 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Transmit and Dispersion Penalty | 1 dB |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Accedian Networks 7SP-000 compatible
- Advantech SFP-GXD/LC-50 compatible
- Alcatel-Lucent Ent. SFP-GIG-LH40 compatible
- Allied Telesis AT-SPLX40/1550 compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Aruba Networks(ex. HP Network) J4860C compatible
- Avaya (ex. Nortel) AA1419052-E6 compatible
- Brocade / Ruckus E1MG-LHA-OM compatible
- Ciena XCVR-040U55 compatible
- Cisco (ex. Meraki) MA-SFP-1GB-LX10 compatible
- Cisco Systems GLC-EX-SMD compatible
- Cisco Systems ONS-SE-GE-ZX compatible
- Dell (ex. Force10) GP-SFP2-1Z compatible
- Dell 320-2879 compatible
- Extreme (ex. Enterasys) MGBIC-LC08 compatible
- Extreme 10053 compatible
- FibroLAN SF1G-LX3 compatible
- HP H3C JD062A compatible
- Huawei S-SFP-GE-LH40-SM1550 compatible
- Juniper SFP-1GE-LH compatible
- Keymile 37973037 compatible
- Keysight (ex. Ixia) SM1310 compatible
- Korenix SFPGXD50D compatible
- MikroTik S-31DLC20D compatible
- Moxa SFP-1GLHXLC compatible
- MRV SFP-GD-XD compatible
- Net Insight NPA0012-L101 compatible
- Netgear AGM733 compatible
- NetOptics SFPKT-LX compatible
- Nokia (ex. Alcatel-Lucent) 1AB376720002 compatible
- Nokia (ex. Alcatel-Lucent) 3FE25775AA compatible
- Nokia-Siemens (ex. Atrica) AT10027-ID-R compatible
- Nortel / Juniper / NSN SFP-EX compatible
- Planet MGB-L50 compatible
- RAD SFP-8D compatible
- Raisecom USFP-GB/S54-DL compatible
- Redback SFP-GE-ZX compatible
- Ribbon (ex. ECI) OTGBE_EX compatible
- Siemens 6GK5992-1AN00-8AA0 compatible
- Teleste MSG224A compatible
- TP-LINK TL-SM311LS compatible
- Westermo 1100-0542 compatible
- Zyxel SFP-ZX-40 compatible
