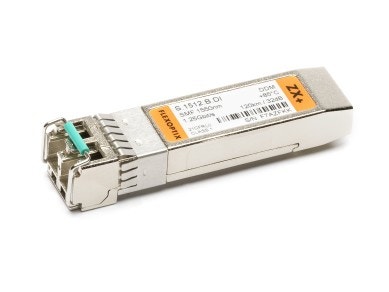

1G SFP ZX+ Industrial 120 km, λ1550 nm, DDM, LC-Duplex, Singlemode
- 1550 nm
- 120 km
- 1.25 G
- Industrial
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | ZX+ |
| Operating Temperature | Industrial |
| Modulation | NRZ |
| Distance | 120 km |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 1.06 Gbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 32 dB |
| Transmit min/max per lane | 0 dBm / 5 dBm |
| Receiver min/max per lane | -32 dBm / -10 dBm (overload) @1G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1500 - 1580 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1260 - 1610 nm |
| Laser | DFB |
| Receiver Type | APD |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # compatible
- Accedian Networks 7SS-000 compatible
- ADTRAN # compatible
- ADVA 0061003011 compatible
- Allied Telesis # compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Arris # compatible
- Aruba Networks # compatible
- Aruba Networks(ex. HP Network) # compatible
- Avaya (ex. Nortel) AA1419052-E6 compatible
- Bluecoat # compatible
- Broadcom # compatible
- Brocade # compatible
- Brocade / Ruckus E1MG-LHB compatible
- Calix 100-01665 compatible
- Chelsio # compatible
- Ciena # compatible
- Ciena (ex. Nortel) # compatible
- Cisco (ex. Meraki) # compatible
- Cisco Systems (ex. Linksys) # compatible
- Cisco Systems GLC-ZX-SMD compatible
- Cumulus Networks # compatible
- D-LINK # compatible
- Dell # compatible
- Dell (ex. Force10) # compatible
- Edge Core # compatible
- Ericsson # compatible
- Extreme # compatible
- Extreme (ex. Enterasys) MGBIC-LC07 compatible
- F5 Networks # compatible
- FiberPlex SFP-SC24XC-5555-H compatible
- FibroLAN SF1G-LX5 compatible
- Fluke Networks # compatible
- Fortinet # compatible
- Fujitsu # compatible
- H3C (ex. 3COM) # compatible
- Hirschmann M-SFP-LH+/LC compatible
- HP H3C # compatible
- Huawei eSFP-GE-ZX100-SM1550 compatible
- Infinera (ex. Transmode) # compatible
- Intel # compatible
- Juniper # compatible
- Juniper (ex BTI Systems) # compatible
- Keymile # compatible
- Keysight (ex. Ixia) # compatible
- Korenix # compatible
- KTI Networks # compatible
- LANCOM # compatible
- Lenovo (ex. Blade Network) # compatible
- LevelOne SFP-3711 compatible
- Lynx # compatible
- McAfee # compatible
- MikroTik # compatible
- Motorola # compatible
- Moxa SFP-1GEZXLC-120 compatible
- MRV # compatible
- NetApp # compatible
- Netgear # compatible
- NetOptics # compatible
- Nokia (ex. Alcatel-Lucent) 3HE01389AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE01389CA compatible
- Nokia Siemens Networks # compatible
- Nokia-Siemens (ex. Atrica) AT10012-0D compatible
- Nortel / Juniper / NSN SFP-EZX compatible
- Nvidia (ex. Mellanox) # compatible
- Obsidian # compatible
- Oracle # compatible
- Orckit-Corrigent # compatible
- Packetlight # compatible
- Palo Alto Networks # compatible
- Planet # compatible
- QLogic # compatible
- Quanta # compatible
- RAD SFP-20EDH compatible
- Radware # compatible
- Raisecom # compatible
- Ribbon (ex. ECI) # compatible
- SIAE MICROELETTRONICA # compatible
- SonicWALL # compatible
- Sophos # compatible
- Symantec # compatible
- Telco Systems BTI-MGBIC-EZX-DD-LC compatible
- TP-LINK # compatible
- Transition Networks # compatible
- TRENDnet # compatible
- Ubiquiti Networks # compatible
- Volktek GBM-104-10 compatible
- WatchGuard # compatible
- Waystream (ex. Packetfront) # compatible
- Westermo 1100-0171 compatible
- Zhone # compatible
- Zyxel # compatible
