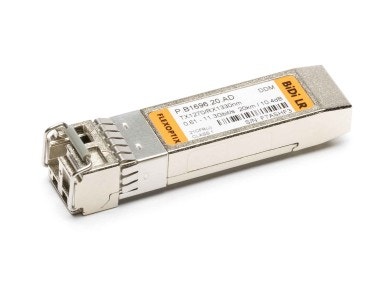

10G SFP+ BiDi LR 20 km, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Singlemode
- 1270 nm
- 20 km
- 11.3 G
- BiDi
- 10G ETH
- 10G FC
- 1G ETH
- 8G FC
- CPRI
- OBSAI
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LR |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 614 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 10.4 dB |
| Transmit min/max per lane | -4 dBm / 0.5 dBm |
| Receiver min/max per lane | -14.4 dBm / 0.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1270 nm |
| Wavelength TX (Range) | 1260 - 1280 nm |
|---|---|
| Wavelength RX (Typical) | 1330 nm |
| Wavelength RX (Range) | 1320 - 1340 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # 12778 compatible
- ADVA 1061701851-02 compatible
- Allied Telesis AT-SP10LR compatible
- Arista 3rd_Party SFP-10G-LR compatible
- Arista SFP-10G-LR compatible
- Aruba Networks(ex. HP Network) J9151A compatible
- Avaya (ex. Nortel) # 12783 compatible
- Brocade / Ruckus 10G-SFPP-LR compatible
- Brocade 10G-SFPP-LR compatible
- Calix 100-02168 compatible
- Check Point # 12785 compatible
- Chelsio # 12786 compatible
- Ciena (ex. Nortel) NTTP30CFE6 compatible
- Ciena XCVR-S10U27 compatible
- Cisco Systems SFP-10G-BXU-I compatible
- Cisco Systems SFP-10G-LR compatible
- D-LINK DEM-436XT-BXU compatible
- Dell (ex. Force10) GP-10GSFP-1L compatible
- Dell 331-5310 compatible
- Dell 407-BBOP compatible
- Extreme (ex. Enterasys) 10GB-LR-SFP compatible
- Extreme 10302 compatible
- F5 Networks # 12790 compatible
- FibroLAN SFPP-S12-20 compatible
- Fluke Networks OPVXG-SFP-PLUS-LR compatible
- Fortinet FN-TRAN-SFP+LR compatible
- Fujitsu S26361-F3986-E4 compatible
- HP H3C JD094B compatible
- Huawei OSX010000 compatible
- Huawei SFP-10G-BXU1 compatible
- Infinera (ex. Coriant) 81.73T-BX2733LR-R6 compatible
- Infinera (ex. Transmode) TRX100100 compatible
- Intel E10GSFPLR compatible
- Juniper SFP-10GE-LR compatible
- Keymile 37973134 compatible
- KTI Networks # 12800 compatible
- LANCOM SFP-BiDi1310-LC10 compatible
- Lenovo (ex. Blade Network) # 12797 compatible
- LevelOne # 12802 compatible
- MikroTik S+23LC10D compatible
- Moxa # 12804 compatible
- MRV # 12805 compatible
- Netgear AXM762 compatible
- Nokia (ex. Alcatel-Lucent) 3HE05037AA compatible
- Nokia Networks FORX 473757A.101 compatible
- Nokia Siemens Networks # 12806 compatible
- Nokia Siemens Networks 3FE62600DA compatible
- Nvidia (ex. Mellanox) MFM1T02A-LR compatible
- Palo Alto Networks PAN-SFP-PLUS-LRD compatible
- Planet MTB-LA20 compatible
- QNAP SFP+ Bidi U compatible
- Radware # 12808 compatible
- Sophos ASG0000LR compatible
- Supermicro # 12809 compatible
- Transition Networks TN-10GSFP-LRB21 compatible
- Ubiquiti Networks UF-SM-10G-S BU compatible
- Waystream (ex. Packetfront) SFP-10GE-BX-U compatible
- Zyxel SFP10G-LR compatible
