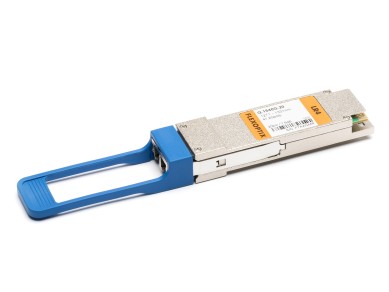

40G QSFP+ LR4 20 km, λ1271-1331 nm, LC-Duplex, Singlemode
- int. Mux
- 20 km
- 41.2 G
- LC
- 10G ETH
- 40G ETH
-
Alternatives
-
Matching Products
-
~Jun 3, 2025+44 pcs
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | QSFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | LR4 |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | 0°C - 70°C |
| Lane Count | 4x (Tx/Rx) |
| Bandwidth | 41.2 Gbit/s |
|---|---|
| Bandwidth Per Lane | 10.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 3.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 7.5 dB |
| Transmit min/max per lane | -4 dBm / 2.3 dBm |
| Receiver min/max per lane | -11.5 dBm / 2.3 dBm (overload) @40G |
|---|---|
| Wavelength TX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Wavelength RX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @40G |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 40G Ethernet, 10G Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # compatible
- Alcatel-Lucent Ent. QSFP-40G-LR compatible
- Arista 3rd_Party QSFP-40G-LR4 compatible
- Arista QSFP-40G-LR4 compatible
- Avaya (ex. Nortel) AA1404001-E6 compatible
- Bittware QSFP+ LR4 compatible
- Brocade 40G-QSFP-LR4 compatible
- Check Point # compatible
- Chelsio SM40G-LR compatible
- Cisco Systems QSFP-40G-LR4 compatible
- Cisco Systems QSFP-40G-LR4-S compatible
- Cumulus Networks QSFP+ LR4 compatible
- D-LINK # compatible
- Dell (ex. Force10) # compatible
- Dell 407-BBGN compatible
- Edge Core QSFP+ LR4 compatible
- Extreme (ex. Enterasys) 40GB-LR4-QSFP compatible
- Extreme 10320 compatible
- F5 Networks # compatible
- Fortinet FG-TRAN-QSFP+LR compatible
- HP H3C JG661A compatible
- Huawei QSFP-40G-LR4 compatible
- Infinera (ex. Transmode) TRX100257 compatible
- Juniper JNP-QSFP-40G-LR4 compatible
- Keymile QSFP+ LR4 compatible
- Keysight (ex. Ixia) # compatible
- Lenovo (ex. Blade Network) 00D6222 compatible
- MRV QSFP-40G-LR compatible
- NetOptics QSFP+KT-LR compatible
- Nvidia (ex. Mellanox) MC2210511-LR4 compatible
- Oracle # compatible
- Packetlight QSFP+-LR-1102 compatible
- Palo Alto Networks # compatible
- Planet QSFP-40G-LR4 compatible
- QLogic QSFP+ LR4 compatible
- Quanta QSFP+ LR4 compatible
- Radware 9062216 compatible
- Raisecom # compatible
- Solarflare QSFP+ LR4 compatible
- Spirent ACC-6077A compatible
- Zyxel # compatible
