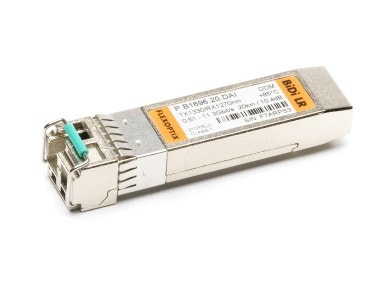

10G SFP+ BiDi LR Industrial 20 km, ᵀˣ1330 / ᴿˣ1270 nm, LC-Simplex, Singlemode
- 1330 nm
- 20 km
- 11.3 G
- Industrial
- 10G ETH
- 10G FC
- 1G ETH
- 8G FC
- CPRI
- OBSAI
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LR |
| Operating Temperature | Industrial |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 614 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 10.4 dB |
| Transmit min/max per lane | -4 dBm / 0.5 dBm |
| Receiver min/max per lane | -14.4 dBm / 0.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1330 nm |
| Wavelength TX (Range) | 1320 - 1340 nm |
|---|---|
| Wavelength RX (Typical) | 1270 nm |
| Wavelength RX (Range) | 1260 - 1280 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Transmit and Dispersion Penalty | 2 dB |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Aruba Networks(ex. HP Network) J9151A compatible
- Aruba Networks(ex. HP Network) J9151E_CX compatible
- Brocade / Ruckus 10G-SFPP-LR compatible
- Brocade 10G-SFPP-LR compatible
- Calix 100-02169 compatible
- Ciena (ex. Nortel) NTTP30CFE6 compatible
- Cisco Systems SFP-10G-LR compatible
- Hirschmann M-SFP-10-LR/LC EEC compatible
- Huawei OSX010000 compatible
- Huawei SFP-10G-BXD1 compatible
- Juniper Juniper - SFP-10GE-LR compatible
- Keymile 37973134 compatible
- MikroTik S+32LC10D compatible
- Netgear AXM762 compatible
- Nokia (ex. Alcatel-Lucent) 3FE62600DA compatible
- Nokia (ex. Alcatel-Lucent) 3HE05037AB compatible
- Nokia (ex. Alcatel-Lucent) 3HE12111AB compatible
- Nokia Networks AOXE 475342A.101 compatible
- Nokia Networks FORW 473756A.101 compatible
- Palo Alto Networks PAN-SFP-PLUS-LRU compatible
- Ubiquiti Networks UF-SM-10G-S RD compatible
- Zyxel SFP10G-LR compatible
