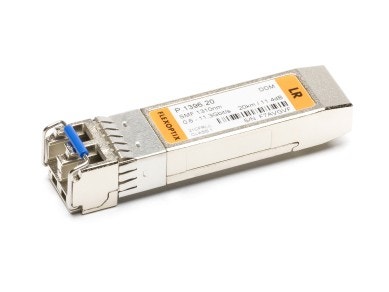

10G SFP+ LR 20 km, λ1310 nm, LC-Duplex, Singlemode
- 1310 nm
- 20 km
- 11.3 G
- 10G ETH
- 10G FC
- 1G ETH
- 8G FC
- CPRI
- OBSAI
-
Alternatives
-
Matching Products
-
~Jun 27, 2025+163 pcs
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | LR |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 600 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.3 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 11.4 dB |
| Transmit min/max per lane | -3 dBm / 2 dBm |
| Receiver min/max per lane | -14.4 dBm / 0.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1270 - 1355 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1565 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Transmit and Dispersion Penalty | 3.2 dB |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks AXSK-SFP+ LR compatible
- ADTRAN 1442420G1 compatible
- ADVA 1061701851-02 compatible
- Alcatel-Lucent Ent. SFP-10G-LR compatible
- Allied Telesis AT-SP10LR20 compatible
- Arista 3rd_Party SFP-10G-LR compatible
- Arista SFP-10G-LR compatible
- Aruba Networks(ex. HP Network) J9151A compatible
- Avaya (ex. Nortel) AA1403011-E6 compatible
- Brocade / Ruckus 10G-SFPP-LR compatible
- Brocade 10G-SFPP-LR compatible
- Brocade XBR-000174 compatible
- Calix 100-01903 compatible
- Check Point # 11822 compatible
- Chelsio SM10G-LR compatible
- Ciena (ex. Nortel) # 10002 compatible
- Ciena XCVR-S10V31 compatible
- Cisco (ex. Meraki) MA-SFP-10GB-LR compatible
- Cisco Systems SFP-10G-LR compatible
- Cyan 280-0092-00 compatible
- D-LINK DEM-432XT-DD compatible
- Dell (ex. Force10) GP-10GSFP-1L compatible
- Dell 330-2409 compatible
- Dell 331-5310 compatible
- Dell 407-BBOP compatible
- Edge Core ET5402-LR compatible
- Extreme (ex. Enterasys) 10GB-LR-SFPP compatible
- Extreme 10302 compatible
- F5 Networks OPT-0017 compatible
- FibroLAN SFPP-13-10 compatible
- Fluke Networks OPVXG-SFP-PLUS-LR compatible
- Fortinet FG-TRAN-SFP+LR compatible
- Fujitsu S26361-F3986-E4 compatible
- HP H3C JD094B compatible
- IBM Storage 45W0260 compatible
- IBM Storage 45W2283 compatible
- Infinera (ex. Transmode) TRX100100 compatible
- Intel E10GSFPLR compatible
- Juniper SFP-10GE-LR compatible
- Keymile 37973134 compatible
- Keysight (ex. Ixia) SM1310-PLUS compatible
- KTI Networks SFP-10G-LR-A compatible
- LANCOM SFP-LX-LC10 compatible
- LAWO 981/60-81 compatible
- Lenovo (ex. Blade Network) # 11836 compatible
- LevelOne SFP-6121 compatible
- MikroTik S+31DLC10D compatible
- Motorola # compatible
- Moxa SFP-10GLRLC compatible
- MRV SFP-10GD-LR compatible
- Netgear AXM762 compatible
- Nokia (ex. Alcatel-Lucent) 1AB429380001 compatible
- Nokia (ex. Alcatel-Lucent) 3FE62600DA compatible
- Nokia (ex. Alcatel-Lucent) 3HE04823AA compatible
- Nokia Networks FOUA 473840A.101 compatible
- Nokia Siemens Networks # 11845 compatible
- Nvidia (ex. Mellanox) MFM1T02A-LR compatible
- Oracle # compatible
- Packetlight SL110 compatible
- Packetlight SL112 compatible
- Palo Alto Networks PAN-SFP-PLUS-LR compatible
- PulseSecure SFP+ LR compatible
- Radware 9062196 compatible
- Solarflare SFM10G-LR20 compatible
- Supermicro AOC-E10GSFPLR compatible
- TP-LINK TXM431-LR compatible
- Transition Networks TN-10GSFP-LR2 compatible
- Ubiquiti Networks SFP+ LR compatible
- Versa Networks SFP+ LR compatible
- Weidmüller IE-SFP-10GE-SM-20 compatible
- Zhone MXK-10GE-SFP+-20KM-1310 compatible
- ZTE SFP-10GE-S10K compatible
- Zyxel SFP10G-LR compatible
