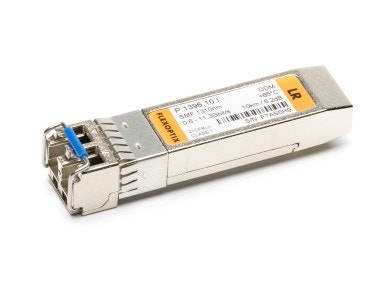

10G SFP+ LR Industrial 10 km, λ1310 nm, LC-Duplex, Singlemode

Universal SFP+ Transceiver
Use FLEXBOX to configure to almost any vendor
For 10GBASE-LR Ethernet links
Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Operating Temperature from -40°C to 85°C
Specs
  • 1310 nm
  • 10 km
  • 11.3 G
  • Industrial
Protocols
  • 10G ETH
  • 10G FC
  • 1G ETH
  • 8G FC
  • CPRI
  • OBSAI
Request compatibility
Part number
P.1396.10.I-ATE01
In stock
1460 pcs
Back In Stock
  • ~May 23, 2025
    +30 pcs
  • ~Aug 8, 2025
    +1590 pcs
Your price
51.98 EUR
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

  • Alternatives

  • Matching Products

Lower Temperature Range
10G SFP+ LR 10 km, λ1310 nm, LC-Duplex, Singlemode
10G SFP+ LR | 10 km, λ1310 nm, LC-Duplex, Singlemode
10615 pcs in stock As low as 40.54 EUR
Higher Power Budget
10G SFP+ LR Industrial 20 km, λ1310 nm, LC-Duplex, Singlemode
10G SFP+ LR Industrial | 20 km, λ1310 nm, LC-Duplex, Singlemode
85 pcs in stock As low as 56.13 EUR
LWL Fibre Cleaner LC / Belt clip edition
LWL Fibre Cleaner LC / Belt clip edition
44 pcs in stock 89.10 EUR
LC-Duplex to LC-Duplex Singlemode cable A1 9/125 µm, yellow, 0.25 m - 100 m
LC-Duplex to LC-Duplex Singlemode cable | A1 9/125 µm, yellow, 0.25 m - 100 m
As low as 10.76 EUR

Specification

Form Factor SFP+
Connector / Polish LC-Duplex PC
Interface Singlemode
Compliance Code LR
Operating Temperature Industrial
Modulation NRZ
Distance 10 km
Temperature Range -40°C - 85°C
Bandwidth 600 Mbit/s - 11.3 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 1 W
CDR none
SGMII No
Inbuilt FEC No
Powerbudget (dB) 6.2 dB
Transmit min/max per lane -8.2 dBm / 0.5 dBm
Receiver min/max per lane -14.4 dBm / 0.5 dBm (overload) @10G
Wavelength TX (Typical) 1310 nm
Wavelength TX (Range) 1270 - 1355 nm
Wavelength RX (Typical) 1310 nm
Wavelength RX (Range) 1260 - 1565 nm
Laser DFB
Receiver Type PIN
Modulation NRZ @10G
Transmit and Dispersion Penalty 3.2 dB
Extinction Ratio 3.5 dB
Supported Protocols 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again
How to get your free FLEXBOX
