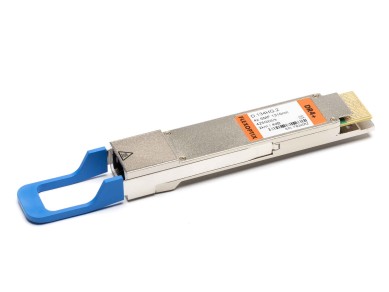

400G QSFP-DD DR4+ with dual CDR 2 km, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode

Universal QSFP-DD Transceiver
Use FLEXBOX in combination with FLEXSOX to configure to almost any vendor
For 400GBASE-DR4+ Ethernet links
Integrated Clock-Data-Recovery (CDR)
PAM4 modulated signal
Supported Data Rates: 425 Gbit/s (4x 106.25 Gbit/s)
Up to 2 km via Singlemode OS2
Use ONLY with MTP/MPO-8/12 APC connectors
Specs
  • 4x 1310 nm
  • 2 km
  • 425 G
  • MTP/MPO-8/12
Protocols
  • 100G ETH
  • 400G ETH
  • 4x 100G ETH
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Request compatibility
Part number
D.134HG.2:Sx

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
Cancel OK
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

  • Alternatives

  • Matching Products

Higher Power Budget
400G QSFP-DD PLR4 with dual CDR 10 km, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode
400G QSFP-DD PLR4 with dual CDR | 10 km, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode
141 pcs in stock As low as 1,367.05 EUR
Lower Power Budget
400G QSFP-DD DR4 with dual CDR 500 m, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode
400G QSFP-DD DR4 with dual CDR | 500 m, 4x λ1310 nm, MTP/MPO-8/12 APC, Singlemode
1275 pcs in stock As low as 852.86 EUR
100G QSFP28 FR with dual CDR 2 km, λ1310 nm, LC-Duplex, Singlemode
100G QSFP28 FR with dual CDR | 2 km, λ1310 nm, LC-Duplex, Singlemode
777 pcs in stock As low as 272.56 EUR
MTP® APC to 4x LC-Duplex Singlemode Breakout cable 8 Cores, MPO compliant, A1 9/125 µm, yellow, 0.5 m - 100 m
MTP® APC to 4x LC-Duplex Singlemode Breakout cable | 8 Cores, MPO compliant, A1 9/125 µm, yellow, 0.5 m - 100 m
As low as 130.68 EUR

Specification

Form Factor QSFP-DD
Connector / Polish MTP/MPO-8/12 APC
Interface Singlemode
Compliance Code DR4+
Distance 2 km
Temperature Range 0°C - 70°C
Lane Count 4x (Tx/Rx)
Bandwidth 425 Gbit/s
Bandwith Per Lane 106.25 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 12 W
CDR TX and RX
SGMII No
Inbuilt FEC Yes, KP4
Powerbudget (dB) 4 dB
Transmit min/max per lane -2.4 dBm / 4 dBm
Receiver min/max per lane -6.4 dBm / 4.5 dBm (overload) @400G
Wavelength TX (Typical) 4x 1310 nm
Wavelength TX (Range) 1304.5 - 1317.5 nm
Wavelength RX (Typical) 4x 1310 nm
Laser EML
Receiver Type PIN
Modulation PAM4 @400G
Transmit and Dispersion Penalty 3.4 dB
Extinction Ratio 3.4 dB
Supported Protocols 4x 100G Ethernet, 400G Ethernet, 100G Ethernet

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again
How to get your free FLEXBOX

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • Arista 3rd_Party QDD-400G-XDR4 compatible
  • Arista QDD-400G-XDR4 compatible
  • Cisco Systems QDD-4X100G-FR-S compatible
  • Edge Core ET502-FR4 compatible
  • Juniper QDD-400G-DR4 compatible
  • Juniper QDD-4X100G-FR compatible
  • Nokia Networks 3HE15274AA compatible
