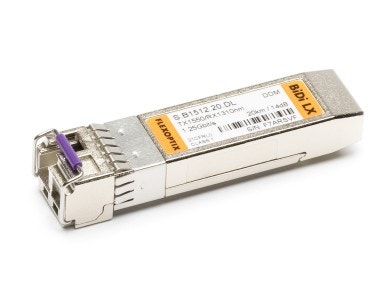

1G SFP BiDi LX 20 km, ᵀˣ1550 / ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode
- 1550 nm
- 20 km
- 1.25 G
- BiDi
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
-
~Jun 4, 2025+102 pcs
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 1.05 Gbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 14 dB |
| Transmit min/max per lane | -8 dBm / -3 dBm |
| Receiver min/max per lane | -22 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1520 - 1580 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1360 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1442120G1 compatible
- ADVA 0061003013 compatible
- Allied Telesis AT-SPBD20-14 compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Aruba Networks(ex. HP Network) J4859C compatible
- barox AC-SFP-BIB-LXE compatible
- Bintec SFP-LC-TX/LX/LH compatible
- Blackbox LFP420 compatible
- Brocade / Ruckus E1MG-BXD compatible
- Brocade E1MG-LX-OM compatible
- Cisco Systems GLC-BX-D compatible
- ComNet SFP-12B compatible
- Coriant (ex. Tellabs) 81.S1GBEBX1153S compatible
- Coriant (ex. Tellabs) 82.S1GBEBX1153S compatible
- CTC Union ISFP-S7020-WB-D compatible
- Dell 407-10588 compatible
- Dell 407-BB00 compatible
- Dell 407-BBOO compatible
- DrayTek SFP.0BL.621.202 compatible
- Edge Core ET4203-BX20D compatible
- Extreme 10056 compatible
- FiberPlex SFP-SC24BD-5531-B compatible
- FibroLAN SF1G-SF15 compatible
- Fortinet FG-TRAN-LX compatible
- HP H3C JD119B compatible
- Huawei SFP-GE-LX-SM1550-BIDI compatible
- Infinera (ex. Transmode) TRX100075 compatible
- Intel SFP LX compatible
- Juniper SFP-GE20KT15R13 compatible
- Korenix SFPGLX20B15D compatible
- LANCOM SFP-LX-LC1 compatible
- LevelOne SFP-9331 compatible
- Marconi SU57AE compatible
- MikroTik S-53LC20D compatible
- Moxa SFP-1G20BLC compatible
- Netgear AGM732F compatible
- Nokia (ex. Alcatel-Lucent) 1AB393080006 compatible
- Nokia (ex. Alcatel-Lucent) 3FE25772AB compatible
- Nokia (ex. Alcatel-Lucent) SFP-GIG-BX-D compatible
- Nokia Siemens Networks V50017-U412-K500 compatible
- Nokia-Siemens (ex. Atrica) AT10077-0D-R compatible
- Planet MGB-LB20 compatible
- RAD SFP-17BD compatible
- Raisecom USFP-GB/SS532-DL compatible
- Siemens 6GK6000-8FB52-0AA0 compatible
- Transition Networks TN-SFP-LXB22 compatible
- TRENDnet TEG-MGBS10D5 compatible
- Ubiquiti Networks UF-SM-1G-S YE compatible
- Waystream (ex. Packetfront) SFP-1000BASE-BX20-D1550LC compatible
- Westermo 1100-0559 compatible
- Zyxel SFP-BX1550-20-D compatible
