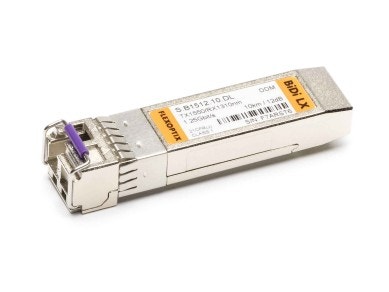

1G SFP BiDi LX 10 km, ᵀˣ1550 / ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode
- 1550 nm
- 10 km
- 1.25 G
- BiDi
- 100M ETH
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
-
~Jun 3, 2025+800 pcs
-
~Jun 18, 2025+1050 pcs
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 10 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 12 dB |
| Transmit min/max per lane | -9 dBm / -3 dBm |
| Receiver min/max per lane | -21 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1520 - 1580 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1360 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1442110G1 compatible
- ADVA 0061003013 compatible
- Alcatel-Lucent Ent. SFP-GIG-BX-D compatible
- Allied Telesis AT-SPBD10-14 compatible
- Allnet ALL4762 compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Aruba Networks(ex. HP Network) J4859C compatible
- Avaya (ex. Nortel) AA1419070-E6 compatible
- Blackbox LFP403 compatible
- Blackbox LFP420 compatible
- Brocade / Ruckus E1MG-BXD compatible
- Brocade E1MG-LX-OM compatible
- Calix 100-01667 compatible
- Ceragon SFP-GE-LX compatible
- Ciena XCVR-010U49 compatible
- Ciena XCVR-B10U49 compatible
- Cisco (ex. Meraki) MA-SFP-1GB-LX10 compatible
- Cisco Systems (ex. Linksys) MGBBX2 compatible
- Cisco Systems GLC-BX-D compatible
- Coriant (ex. Tellabs) 81.S1GBEBX1153S compatible
- Coriant (ex. Tellabs) 82.S1GBEBX1153S compatible
- D-LINK DEM-330T compatible
- Dell 407-10588 compatible
- Dell 407-BBOO compatible
- Edge Core ET4204-BX10D compatible
- Ericsson RDH10248/2 compatible
- Extreme (ex. Enterasys) MGBIC-BX10-D compatible
- Extreme 10056 compatible
- FibroLAN SF1G-SF15 compatible
- Fluke Networks SFP-1000ZX compatible
- Fortinet FG-TRAN-LX compatible
- Fortinet FN-TRAN-LX compatible
- Hirschmann M-SFP-BIDI Type B LX/LC EEC compatible
- HP H3C JD099B compatible
- HP Storage (C-Series) 453151-B21 compatible
- Huawei SFP-GE-LX-SM1550-BIDI compatible
- Infinera (ex. Transmode) TRX100081 compatible
- Intel SFP BIDI 1550 compatible
- Juniper (ex BTI Systems) BP3AM5LB compatible
- Juniper EX-SFP-GE10KT15R13 compatible
- Juniper SFP-GE10KT15R13 compatible
- Korenix SFPGLX10B15D compatible
- kvm-tec KT-7011 compatible
- LANCOM SFP-LX-LC1 compatible
- Lenovo (ex. IBM) 26R0808 compatible
- Lenovo (ex. IBM) 90Y9424 compatible
- LevelOne SFP-9231 compatible
- Longshine LCS-MGBIC-LX-10 compatible
- MikroTik S-53LC20D compatible
- Moxa SFP-1G10BLC compatible
- MRV SFP-GD-BX43 compatible
- Net Insight NPA0012-L101 compatible
- Netgear AGM732F compatible
- Netonix SFP BIDI 1550 compatible
- Nexans 88646075 compatible
- Nokia (ex. Alcatel-Lucent) 1AB350870002 compatible
- Nokia (ex. Alcatel-Lucent) 3FE25772AB compatible
- Nokia (ex. Alcatel-Lucent) 3HE00868CB compatible
- Nokia Siemens Networks V50017-U412-K500 compatible
- Nokia-Siemens (ex. Atrica) AT10077-0D-R compatible
- Nvidia (ex. Mellanox) MC3208011-LX compatible
- Nvidia (ex. Mellanox) MC3208011-SX compatible
- OpenGear 569025 compatible
- Palo Alto Networks PAN-SFP-LX compatible
- Perle PSFP-1000D-S1LC10D-XT compatible
- Planet MGB-LB10 compatible
- RAD SFP-28BD compatible
- SonicWALL 01-SSC-9790 compatible
- Sophos ASG0000LX compatible
- Supermicro AOC-E10GSFPLR compatible
- Telco Systems BTI-SFP-GBD10L-55/31S compatible
- TP-LINK TL-SM321A compatible
- Transition Networks TN-SFP-LXB12 compatible
- TRENDnet TEG-MGBS10D5 compatible
- Turris Omnia SFP BIDI 1550 compatible
- Ubiquiti Networks UF-SM-1G-S YE compatible
- Volktek GBM-123RS compatible
- Westermo 1100-0559 compatible
- Zyxel SFP-BX1550-10 compatible
