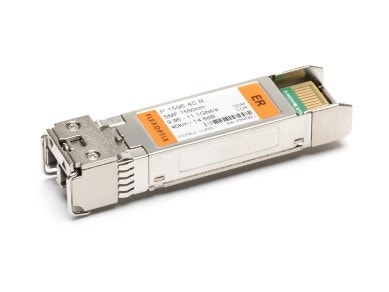

10G SFP+ ER with dual CDR 40 km, λ1550 nm, LC-Duplex, Singlemode
- 1550 nm
- 40 km
- 11.1 G
- 10G ETH
- OTU2
- STM-64
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | ER |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 40 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 9.95 Gbit/s - 11.1 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.5 W |
| CDR | TX and RX |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 14.8 dB |
| Transmit min/max per lane | -1 dBm / 2 dBm |
| Receiver min/max per lane | -15.8 dBm / -1 dBm (overload) @10G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1530 - 1565 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1530 - 1565 nm |
| Laser | EML |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Transmit and Dispersion Penalty | 2 dB |
| Extinction Ratio | 8.2 dB |
| Supported Protocols | 10G Ethernet, OTU2, STM-64 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks AXSK-SFP+ LR compatible
- ADTRAN 1442440G1 compatible
- ADVA 1061701861-01 compatible
- Alcatel-Lucent Ent. SFP-10G-ER compatible
- Allied Telesis AT-SP10ER40/I compatible
- Arista 3rd_Party SFP-10G-ER compatible
- Arista SFP-10G-ER compatible
- Avaya (ex. Nortel) AA1403013-E6 compatible
- Brocade / Ruckus 10G-SFPP-ER compatible
- Brocade 10G-SFPP-ER compatible
- Brocade XBR-000174 compatible
- Calix 100-01511 compatible
- Check Point # compatible
- Chelsio # compatible
- Ciena (ex. Nortel) # compatible
- Ciena XCVR-S40V55 compatible
- Cisco Systems ONS-SC+-10G-ER compatible
- Cisco Systems SFP-10G-ER compatible
- D-LINK DEM-433XT-DD compatible
- Dell (ex. Force10) GP-10GSFP-1E compatible
- Dell 430-4585 compatible
- Edge Core # compatible
- Extreme (ex. Enterasys) 10GB-ER-SFPP compatible
- Extreme 10309 compatible
- F5 Networks # compatible
- FibroLAN SFPP-15-80 compatible
- Fluke Networks # compatible
- Fortinet FG-TRAN-SFP+LR compatible
- Fujitsu FIM35032/110 compatible
- HP H3C JG234A compatible
- HP Storage (B-Series) AW538A compatible
- Huawei OSX040N01 compatible
- Infinera (ex. Transmode) TRX100114 compatible
- Intel E10GSFPER compatible
- Juniper SFP-10GE-ER compatible
- Keymile # compatible
- KTI Networks SFP-10G-ER-A compatible
- LANCOM # compatible
- Lenovo (ex. Blade Network) BN-CKM-SP-ER compatible
- Lenovo (ex. IBM) 45W2283[8G] compatible
- Lenovo (ex. IBM) 90Y9415 compatible
- LevelOne SFP-6141 compatible
- MikroTik # compatible
- Motorola # compatible
- Moxa SFP-10GERLC compatible
- MRV SFP-10GD-ER compatible
- Netgear AXM762 compatible
- Nokia (ex. Alcatel-Lucent) 3HE05036AA compatible
- Nokia Siemens Networks V50017-U624-K500 compatible
- Nvidia (ex. Mellanox) # compatible
- Oracle # compatible
- Packetlight SL112 compatible
- Palo Alto Networks # compatible
- Radware # compatible
- Ribbon (ex. ECI) OTPMR_PS5 compatible
- Solarflare # compatible
- Supermicro # compatible
- TP-LINK # compatible
- Transition Networks # compatible
- Viavi (ex. JDSU) CSFPPLUS-10G-5-1 compatible
- Zyxel SFP10G-ER compatible
