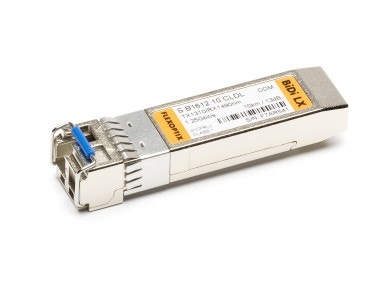

1G SFP BiDi LX 10 km, ᵀˣ1310 / ᴿˣ1490 nm, DDM, LC-Simplex, Singlemode
- 1310 nm
- 10 km
- 1.25 G
- BiDi
- 100M ETH
- 1G ETH
- 1G FC
-
Alternativen
-
Passende Produkte
Geh einfach zum Warenkorb und klicke auf Angebot erstellen.
-
Alternativen
-
Passende Produkte
Spezifikation
Form Factor | SFP |
---|---|
Connector / Polish | LC-Simplex UPC |
Interface | Singlemode BiDi |
Type | BiDi LX |
Distance | 10 km |
Temperature Range | 0°C - 70°C |
Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1 W |
---|---|
CDR | none |
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 13 dB |
Transmit min/max per lane | -9 dBm / -3 dBm |
Receiver min/max per lane | -22 dBm / -3 dBm (overload) |
Wavelength TX (Typical) | 1310 nm |
Wavelength TX (Range) | 1270 - 1350 nm |
---|---|
Wavelength RX (Typical) | 1490 nm |
Wavelength RX (Range) | 1450 - 1530 nm |
Laser | FP |
Receiver Type | PIN |
Modulation | NRZ |
Extinction Ratio | 9 dB |
Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
TRANSCEIVER KONFIGURATION MIT DER FLEXBOX
SO EINFACH GEHT'S!- Lade unsere App herunter und starte sie: FLEXOPTIX App
- Connect your FLEXBOX via USB
- Stecke einen Universal Transceiver ein
- Suche dir einfach Hersteller und Kompatibilität aus
- Drücke Play
- Die Konfiguration dauert nur ein paar Sekunden
- Benutze den Transceiver in deinem Gerät. Das war's!
- Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder
Kompatibiltät
Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.
- MSA Standard kompatibel
- Accedian Networks 7ST-000 kompatibel
- ADTRAN 1200487G10 kompatibel
- ADTRAN 1200487G20 kompatibel
- ADTRAN 1442110G2 kompatibel
- ADVA 0061003014 kompatibel
- ADVA 1061705876-01 kompatibel
- Alcatel-Lucent Ent. SFP-GIG-BX-U kompatibel
- Allied Telesis AT-SPBD10-13 kompatibel
- Arista 3rd_Party SFP-1G-LX kompatibel
- Aruba Networks(ex. HP Network) J4859C kompatibel
- Aruba Networks(ex. HP Network) J9143B kompatibel
- Avaya (ex. Nortel) AA1419069-E6 kompatibel
- AVM Fritz!SFP AON kompatibel
- Axis T8611 kompatibel
- Brocade / Ruckus E1MG-BXU kompatibel
- Calix 100-01956 kompatibel
- Ciena (ex. Nortel) AA1419069-E6 kompatibel
- Ciena (ex. Nortel) NTTP58BD kompatibel
- Ciena XCVR-010U31 kompatibel
- Cisco (ex. Meraki) MA-SFP-1GB-LX10 kompatibel
- Cisco Systems (ex. Linksys) MGBBX1 kompatibel
- Cisco Systems (ex. Viptela) VIP-SFP-1GE-LX kompatibel
- Cisco Systems GLC-BX-U kompatibel
- Clear-Com SFP-SMFO-1G-LX kompatibel
- Coriant (ex. Tellabs) 81.S1GBEBX1133S kompatibel
- Coriant (ex. Tellabs) TR-0026-U kompatibel
- Cyan 280-0106-00 kompatibel
- Dell (ex. Force10) GP-SFP2-1Y-BXU kompatibel
- Edge Core ET4204-BX10 kompatibel
- Ericsson RDH10248/1 kompatibel
- Extreme (ex. Enterasys) MGBIC-BX10-U kompatibel
- Extreme 10057 kompatibel
- Fortinet FG-TRAN-LX kompatibel
- HP H3C JD098B kompatibel
- HP Storage (C-Series) 453151-B21 kompatibel
- Huawei OGEBIDI10 kompatibel
- Huawei SFP-GE-LX-SM1310-BIDI kompatibel
- Infinera (ex. Transmode) TRX100080 kompatibel
- Intel SFP LX kompatibel
- Juniper (ex BTI Systems) BP3AM5PB kompatibel
- Juniper EX-SFP-GE10KT13R14 kompatibel
- Juniper SFP-GE10KT13R14 kompatibel
- Keymile 37973096 kompatibel
- LANCOM SFP-LX-LC1 kompatibel
- Lenovo (ex. IBM) 26R0808 kompatibel
- LevelOne SFP-9221 kompatibel
- MikroTik S-35LC20D kompatibel
- Moxa SFP-1G10ALC kompatibel
- MRV SFP-GD-BX34 kompatibel
- Net Insight NPA0012-L101 kompatibel
- Nexans 88645870 kompatibel
- Nokia (ex. Alcatel-Lucent) 1AB350870001 kompatibel
- Nokia (ex. Alcatel-Lucent) 3FE25772AA kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE00868AA kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE00868CA kompatibel
- Nokia Siemens Networks V50017-U402-K500 kompatibel
- Nvidia (ex. Mellanox) MC3208011-SX kompatibel
- Orckit-Corrigent YTR00096 kompatibel
- Perle PSFP-1000-S1LC10U kompatibel
- Perle PSFP-1000D-S1LC10U-XT kompatibel
- Planet MGB-TLA10 kompatibel
- RAD SFP-17AD kompatibel
- SonicWALL 01-SSC-9790 kompatibel
- Sophos ITFZTCHLX kompatibel
- Telco Systems BTI-SFP-GBD10L-DD-31/49S kompatibel
- TP-LINK TL-SM321B kompatibel
- Transition Networks TN-SFP-BXU kompatibel
- Ubiquiti Networks SFP-BIDI-1310-10 kompatibel
- Waystream (ex. Packetfront) SFP-1000BASE-BX-U kompatibel
- Westermo 1100-0558 kompatibel
- Zyxel SFP-BX1310-10-D kompatibel
