CWDM / DWDM Channels

Universal Transceiver - Ein Transceiver für diverse Switch-Hersteller

Habt ihr genug davon, den für euer System passenden Transceiver zu suchen?
Mit unseren Universal Transceivern, welche in Geräten von fast 200 Herstellern einwandfrei funktionieren, hat die ewige Suche ein Ende.
Nutzt unsere FLEXBOX, um einen Transceiver für euer System zu konfigurieren oder bestellt alternativ Transceiver von uns bereits vorkonfiguriert.

Für DWDM bieten wir auch Tunable DWDM transceiver an. Damit kann man zusätzlich zur Herstellerkompatibilität auch die Wellenlänge tunen innerhalb von Sekunden.

Flexbox

Wie man Universal Transceiver konfiguriert

Schließe die FLEXBOX an deinen Computer/Smartphone an, stecke einen Universal Transceiver in die Box und konfiguriere ihn mit unserer FLEXOPTIX-App.
Transceiver-Konfiguration und -Tuning mit der FLEXBOX und der FLEXOPTIX-App

DWDM Channel Grid

DWDM ITU Channel Wellenlänge (in nm) Frequenz (in THz) Cisco DWDM Channel
(Catalyst, Nexus,
NC, ASR, ME Serie)
Cisco DWDM Channel
(ONS Serie)
ADVA DWDM Channel
1604.03 186.90 Cisco L-Band Channel 32
1603.17 187.00 Cisco L-Band Channel 31 ADVA Channel 18700 (#D64)
1602.31 187.10 Cisco L-Band Channel 30 ADVA Channel 18710 (#D63)
1601.46 187.20 Cisco L-Band Channel 29 ADVA Channel 18720 (#D62)
1600.60 187.30 Cisco L-Band Channel 28 ADVA Channel 18730 (#D61)
1599.75 187.40 Cisco L-Band Channel 27 ADVA Channel 18740 (#DL8)
1598.89 187.50 Cisco L-Band Channel 26 ADVA Channel 18750 (#D60)
1598.04 187.60 Cisco L-Band Channel 25 ADVA Channel 18760 (#D59)
1597.19 187.70 Cisco L-Band Channel 24 ADVA Channel 18770 (#D58)
1596.34 187.80 Cisco L-Band Channel 23 ADVA Channel 18780 (#D57)
1595.49 187.90 Cisco L-Band Channel 22 ADVA Channel 18790 (#DL7)
1594.64 188.00 Cisco L-Band Channel 21 ADVA Channel 18800 (#D56)
1593.79 188.10 Cisco L-Band Channel 20 ADVA Channel 18810 (#D55)
1592.95 188.20 Cisco L-Band Channel 19 ADVA Channel 18820 (#D54)
1592.10 188.30 Cisco L-Band Channel 18 ADVA Channel 18830 (#D53)
1591.26 188.40 Cisco L-Band Channel 17 ADVA Channel 18840 (#DL6)
1590.41 188.50 Cisco L-Band Channel 16 ADVA Channel 18850 (#D52)
1589.57 188.60 Cisco L-Band Channel 15 ADVA Channel 18860 (#D51)
1588.73 188.70 Cisco L-Band Channel 14 ADVA Channel 18870 (#D50)
1587.88 188.80 Cisco L-Band Channel 13 ADVA Channel 18880 (#D49)
1587.04 188.90 Cisco L-Band Channel 12 ADVA Channel 18890 (#DL5)
1586.20 189.00 Cisco L-Band Channel 11 ADVA Channel 18900 (#DL9)
1585.36 189.10 Cisco L-Band Channel 10 ADVA Channel 18910 (#DL4)
1584.53 189.20 Cisco L-Band Channel 9 ADVA Channel 18920 (#D48)
1583.69 189.30 Cisco L-Band Channel 8 ADVA Channel 18930 (#D47)
1582.85 189.40 Cisco L-Band Channel 7 ADVA Channel 18940 (#D46)
1582.02 189.50 Cisco L-Band Channel 6 ADVA Channel 18950 (#D45)
1581.18 189.60 Cisco L-Band Channel 5 ADVA Channel 18960 (#DL3)
1580.35 189.70 Cisco L-Band Channel 4 ADVA Channel 18970 (#D44)
1579.52 189.80 Cisco L-Band Channel 3 ADVA Channel 18980 (#D43)
1578.69 189.90 Cisco L-Band Channel 2 ADVA Channel 18990 (#D42)
1577.86 190.00 Cisco L-Band Channel 1 ADVA Channel 19000 (#D41)
DWDM ITU Channel 1 1577.03 190.10 ADVA Channel 19010 (#DL2)
DWDM ITU Channel 1.5 1576.61 190.15
DWDM ITU Channel 2 1576.20 190.20 ADVA Channel 19020 (#D40)
DWDM ITU Channel 2.5 1575.78 190.25
DWDM ITU Channel 3 1575.37 190.30 ADVA Channel 19030 (#D39)
DWDM ITU Channel 3.5 1574.95 190.35
DWDM ITU Channel 4 1574.54 190.40 ADVA Channel 19040 (#D38)
DWDM ITU Channel 4.5 1574.13 190.45
DWDM ITU Channel 5 1573.71 190.50 ADVA Channel 19050 (#D37)
DWDM ITU Channel 5.5 1573.30 190.55
DWDM ITU Channel 6 1572.89 190.60 ADVA Channel 19060 (#DL1)
DWDM ITU Channel 6.5 1572.48 190.65
DWDM ITU Channel 7 1572.06 190.70 ADVA Channel 19070 (#D36)
DWDM ITU Channel 7.5 1571.65 190.75
DWDM ITU Channel 8 1571.24 190.80 ADVA Channel 19080 (#D35)
DWDM ITU Channel 8.5 1570.83 190.85
DWDM ITU Channel 9 1570.42 190.90 ADVA Channel 19090 (#D34)
DWDM ITU Channel 9.5 1570.01 190.95
DWDM ITU Channel 10 1569.59 191.00 ADVA Channel 19100 (#D33)
DWDM ITU Channel 10.5 1569.18 191.05
DWDM ITU Channel 11 1568.77 191.10
DWDM ITU Channel 11.5 1568.36 191.15
DWDM ITU Channel 12 1567.95 191.20
DWDM ITU Channel 12.5 1567.54 191.25 ADVA Channel 19125
DWDM ITU Channel 13 1567.13 191.30 ADVA Channel 19130
DWDM ITU Channel 13.5 1566.72 191.35 Cisco Channel 1 ADVA Channel 19135
DWDM ITU Channel 14 1566.31 191.40 Cisco Channel 2 ADVA Channel 19140
DWDM ITU Channel 14.5 1565.90 191.45 Cisco Channel 3 ADVA Channel 19145
DWDM ITU Channel 15 1565.50 191.50 Cisco Channel 4 ADVA Channel 19150
DWDM ITU Channel 15.5 1565.09 191.55 Cisco Channel 5 ADVA Channel 19155
DWDM ITU Channel 16 1564.68 191.60 Cisco Channel 6 ADVA Channel 19160
DWDM ITU Channel 16.5 1564.27 191.65 Cisco Channel 7 ADVA Channel 19165
DWDM ITU Channel 17 1563.86 191.70 Cisco Channel 8 ADVA Channel 19170
DWDM ITU Channel 17.5 1563.45 191.75 Cisco Channel 9 ADVA Channel 19175
DWDM ITU Channel 18 1563.05 191.80 Cisco Channel 10 ADVA Channel 19180
DWDM ITU Channel 18.5 1562.64 191.85 Cisco Channel 11 ADVA Channel 19185
DWDM ITU Channel 19 1562.23 191.90 Cisco Channel 12 ADVA Channel 19190
DWDM ITU Channel 19.5 1561.83 191.95 Cisco Channel 13 ADVA Channel 19195
DWDM ITU Channel 20 1561.42 192.00 Cisco Channel 14 ADVA Channel 19200 (#D32)
DWDM ITU Channel 20.5 1561.01 192.05 Cisco Channel 15 ADVA Channel 19205
DWDM ITU Channel 21 1560.61 192.10 Cisco Channel 16 Cisco C-Band Channel 32 ADVA Channel 19210 (#D31)
DWDM ITU Channel 21.5 1560.20 192.15 Cisco Channel 17 ADVA Channel 19215
DWDM ITU Channel 22 1559.79 192.20 Cisco Channel 18 Cisco C-Band Channel 31 ADVA Channel 19220 (#D30)
DWDM ITU Channel 22.5 1559.39 192.25 Cisco Channel 19 ADVA Channel 19225
DWDM ITU Channel 23 1558.98 192.30 Cisco Channel 20 Cisco C-Band Channel 30 ADVA Channel 19230 (#D29)
DWDM ITU Channel 23.5 1558.58 192.35 Cisco Channel 21 ADVA Channel 19235
DWDM ITU Channel 24 1558.17 192.40 Cisco Channel 22 Cisco C-Band Channel 29 ADVA Channel 19240 (#DC8)
DWDM ITU Channel 24.5 1557.77 192.45 Cisco Channel 23 ADVA Channel 19245
DWDM ITU Channel 25 1557.36 192.50 Cisco Channel 24 ADVA Channel 19250 (#D28)
DWDM ITU Channel 25.5 1556.96 192.55 Cisco Channel 25 ADVA Channel 19255
DWDM ITU Channel 26 1556.55 192.60 Cisco Channel 26 Cisco C-Band Channel 28 ADVA Channel 19260 (#D27)
DWDM ITU Channel 26.5 1556.15 192.65 Cisco Channel 27 ADVA Channel 19265
DWDM ITU Channel 27 1555.75 192.70 Cisco Channel 28 Cisco C-Band Channel 27 ADVA Channel 19270 (#D26)
DWDM ITU Channel 27.5 1555.34 192.75 Cisco Channel 29 ADVA Channel 19275
DWDM ITU Channel 28 1554.94 192.80 Cisco Channel 30 Cisco C-Band Channel 26 ADVA Channel 19280 (#D25)
DWDM ITU Channel 28.5 1554.54 192.85 Cisco Channel 31 ADVA Channel 19285
DWDM ITU Channel 29 1554.13 192.90 Cisco Channel 32 Cisco C-Band Channel 25 ADVA Channel 19290 (#DC7)
DWDM ITU Channel 29.5 1553.73 192.95 Cisco Channel 33 ADVA Channel 19295
DWDM ITU Channel 30 1553.33 193.00 Cisco Channel 34 ADVA Channel 19300 (#D24)
DWDM ITU Channel 30.5 1552.93 193.05 Cisco Channel 35 ADVA Channel 19305
DWDM ITU Channel 31 1552.52 193.10 Cisco Channel 36 Cisco C-Band Channel 24 ADVA Channel 19310 (#D23)
DWDM ITU Channel 31.5 1552.12 193.15 Cisco Channel 37 ADVA Channel 19315
DWDM ITU Channel 32 1551.72 193.20 Cisco Channel 38 Cisco C-Band Channel 23 ADVA Channel 19320 (#D22)
DWDM ITU Channel 32.5 1551.32 193.25 Cisco Channel 39 ADVA Channel 19325
DWDM ITU Channel 33 1550.92 193.30 Cisco Channel 40 Cisco C-Band Channel 22 ADVA Channel 19330 (#D21)
DWDM ITU Channel 33.5 1550.52 193.35 Cisco Channel 41 ADVA Channel 19335
DWDM ITU Channel 34 1550.12 193.40 Cisco Channel 42 Cisco C-Band Channel 21 ADVA Channel 19340 (#DC6)
DWDM ITU Channel 34.5 1549.72 193.45 Cisco Channel 43 ADVA Channel 19345
DWDM ITU Channel 35 1549.32 193.50 Cisco Channel 44 ADVA Channel 19350 (#D20)
DWDM ITU Channel 35.5 1548.91 193.55 Cisco Channel 45 ADVA Channel 19355
DWDM ITU Channel 36 1548.51 193.60 Cisco Channel 46 Cisco C-Band Channel 20 ADVA Channel 19360 (#D19)
DWDM ITU Channel 36.5 1548.11 193.65 Cisco Channel 47 ADVA Channel 19365
DWDM ITU Channel 37 1547.72 193.70 Cisco Channel 48 Cisco C-Band Channel 19 ADVA Channel 19370 (#D18)
DWDM ITU Channel 37.5 1547.32 193.75 Cisco Channel 49 ADVA Channel 19375
DWDM ITU Channel 38 1546.92 193.80 Cisco Channel 50 Cisco C-Band Channel 18 ADVA Channel 19380 (#D17)
DWDM ITU Channel 38.5 1546.52 193.85 Cisco Channel 51 ADVA Channel 19385
DWDM ITU Channel 39 1546.12 193.90 Cisco Channel 52 Cisco C-Band Channel 17 ADVA Channel 19390 (#DC5)
DWDM ITU Channel 39.5 1545.72 193.95 Cisco Channel 53 ADVA Channel 19395
DWDM ITU Channel 40 1545.32 194.00 Cisco Channel 54 ADVA Channel 19400 (#DC9)
DWDM ITU Channel 40.5 1544.92 194.05 Cisco Channel 55 ADVA Channel 19405
DWDM ITU Channel 41 1544.53 194.10 Cisco Channel 56 Cisco C-Band Channel 16 ADVA Channel 19410 (#DC4)
DWDM ITU Channel 41.5 1544.13 194.15 Cisco Channel 57 ADVA Channel 19415
DWDM ITU Channel 42 1543.73 194.20 Cisco Channel 58 Cisco C-Band Channel 15 ADVA Channel 19420 (#D16)
DWDM ITU Channel 42.5 1543.33 194.25 Cisco Channel 59 ADVA Channel 19425
DWDM ITU Channel 43 1542.94 194.30 Cisco Channel 60 Cisco C-Band Channel 14 ADVA Channel 19430 (#D15)
DWDM ITU Channel 43.5 1542.54 194.35 Cisco Channel 61 ADVA Channel 19435
DWDM ITU Channel 44 1542.14 194.40 Cisco Channel 62 Cisco C-Band Channel 13 ADVA Channel 19440 (#D14)
DWDM ITU Channel 44.5 1541.75 194.45 Cisco Channel 63 ADVA Channel 19445
DWDM ITU Channel 45 1541.35 194.50 Cisco Channel 64 ADVA Channel 19450 (#D13)
DWDM ITU Channel 45.5 1540.95 194.55 Cisco Channel 65 ADVA Channel 19455
DWDM ITU Channel 46 1540.56 194.60 Cisco Channel 66 Cisco C-Band Channel 12 ADVA Channel 19460 (#DC3)
DWDM ITU Channel 46.5 1540.16 194.65 Cisco Channel 67 ADVA Channel 19465
DWDM ITU Channel 47 1539.77 194.70 Cisco Channel 68 Cisco C-Band Channel 11 ADVA Channel 19470 (#D12)
DWDM ITU Channel 47.5 1539.37 194.75 Cisco Channel 69 ADVA Channel 19475
DWDM ITU Channel 48 1538.98 194.80 Cisco Channel 70 Cisco C-Band Channel 10 ADVA Channel 19480 (#D11)
DWDM ITU Channel 48.5 1538.58 194.85 Cisco Channel 71 ADVA Channel 19485
DWDM ITU Channel 49 1538.19 194.90 Cisco Channel 72 Cisco C-Band Channel 9 ADVA Channel 19490 (#D10)
DWDM ITU Channel 49.5 1537.79 194.95 Cisco Channel 73 ADVA Channel 19495
DWDM ITU Channel 50 1537.40 195.00 Cisco Channel 74 ADVA Channel 19500 (#D09)
DWDM ITU Channel 50.5 1537.00 195.05 Cisco Channel 75 ADVA Channel 19505
DWDM ITU Channel 51 1536.61 195.10 Cisco Channel 76 Cisco C-Band Channel 8 ADVA Channel 19510 (#DC2)
DWDM ITU Channel 51.5 1536.22 195.15 Cisco Channel 77 ADVA Channel 19515
DWDM ITU Channel 52 1535.82 195.20 Cisco Channel 78 Cisco C-Band Channel 7 ADVA Channel 19520 (#D08)
DWDM ITU Channel 52.5 1535.43 195.25 Cisco Channel 79 ADVA Channel 19525
DWDM ITU Channel 53 1535.04 195.30 Cisco Channel 80 Cisco C-Band Channel 6 ADVA Channel 19530 (#D07)
DWDM ITU Channel 53.5 1534.64 195.35 Cisco Channel 81 ADVA Channel 19535
DWDM ITU Channel 54 1534.25 195.40 Cisco Channel 82 Cisco C-Band Channel 5 ADVA Channel 19540 (#D06)
DWDM ITU Channel 54.5 1533.86 195.45 Cisco Channel 83 ADVA Channel 19545
DWDM ITU Channel 55 1533.47 195.50 Cisco Channel 84 ADVA Channel 19550 (#D05)
DWDM ITU Channel 55.5 1533.07 195.55 Cisco Channel 85 ADVA Channel 19555
DWDM ITU Channel 56 1532.68 195.60 Cisco Channel 86 Cisco C-Band Channel 4 ADVA Channel 19560 (#DC1)
DWDM ITU Channel 56.5 1532.29 195.65 Cisco Channel 87 ADVA Channel 19565
DWDM ITU Channel 57 1531.90 195.70 Cisco Channel 88 Cisco C-Band Channel 3 ADVA Channel 19570 (#D04)
DWDM ITU Channel 57.5 1531.51 195.75 Cisco Channel 89 ADVA Channel 19575
DWDM ITU Channel 58 1531.12 195.80 Cisco Channel 90 Cisco C-Band Channel 2 ADVA Channel 19580 (#D03)
DWDM ITU Channel 58.5 1530.72 195.85 Cisco Channel 91 ADVA Channel 19585
DWDM ITU Channel 59 1530.33 195.90 Cisco Channel 92 Cisco C-Band Channel 1 ADVA Channel (#D02)
DWDM ITU Channel 59.5 1529.94 195.95 Cisco Channel 93 ADVA Channel 19595
DWDM ITU Channel 60 1529.55 196.00 Cisco Channel 94 ADVA Channel 19600 (#D01)
DWDM ITU Channel 60.5 1529.16 196.05 Cisco Channel 95
DWDM ITU Channel 61 1528.77 196.10 Cisco Channel 96
DWDM ITU Channel 61.5 1528.38 196.15
DWDM ITU Channel 62 1527.99 196.20
DWDM ITU Channel 62.5 1527.60 196.25
DWDM ITU Channel 63 1527.22 196.30
DWDM ITU Channel 63.5 1526.83 196.35
DWDM ITU Channel 64 1526.44 196.40
DWDM ITU Channel 64.5 1526.05 196.45
DWDM ITU Channel 65 1525.66 196.50
DWDM ITU Channel 65.5 1525.27 196.55
DWDM ITU Channel 66 1524.89 196.60
DWDM ITU Channel 66.5 1524.50 196.65
DWDM ITU Channel 67 1524.11 196.70
DWDM ITU Channel 67.5 1523.72 196.75
DWDM ITU Channel 68 1523.34 196.80
DWDM ITU Channel 68.5 1522.95 196.85
DWDM ITU Channel 69 1522.56 196.90
DWDM ITU Channel 69.5 1522.18 196.95
DWDM ITU Channel 70 1521.79 197.00
DWDM ITU Channel 70.5 1521.40 197.05
DWDM ITU Channel 71 1521.02 197.10
DWDM ITU Channel 71.5 1520.63 197.15
DWDM ITU Channel 72 1520.25 197.20
DWDM ITU Channel 72.5 1519.86 197.25
DWDM ITU Channel 73 1519.48 197.30
DWDM ITU Channel 73.5 1519.09 197.35
DWDM ITU Channel 74 1518.71 197.40
DWDM ITU Channel 74.5 1518.32 197.45
DWDM ITU Channel 75 1517.94 197.50
DWDM ITU Channel 75.5 1517.55 197.55
DWDM ITU Channel 76 1517.17 197.60
DWDM ITU Channel 76.5 1516.78 197.65
DWDM ITU Channel 77 1516.40 197.70
DWDM ITU Channel 77.5 1516.02 197.75
DWDM ITU Channel 78 1515.63 197.80
DWDM ITU Channel 78.5 1515.25 197.85
DWDM ITU Channel 79 1514.87 197.90
DWDM ITU Channel 79.5 1514.49 197.95

CWDM ITU Channels

Wellenlänge (in nm) Frequenz (in THz)
1271 235.87
1291 232.22
1311 228.67
1331 225.24
1351 221.90
1371 218.67
1391 215.52
1411 212.47
1431 209.50
1451 206.61
1471 203.80
1491 201.07
1511 198.41
1531 195.81
1551 193.29
1571 190.83
1591 188.43
1611 186.09

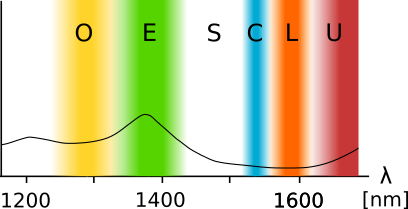

Information über die unterschiedlichen Wellenlängen-Bänder:

Wellenlängen-Bänder
  • O-Band: 1270nm bis 1370nm
  • E-Band: 1371nm bis 1470nm
  • S-Band: 1471nm bis 1530nm
  • C-Band: 1531nm bis 1570nm
  • L-Band: 1571nm bis 1611nm
