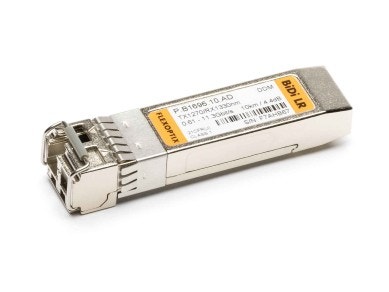

10G SFP+ BiDi LR 10 km, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Singlemode

Universal SFP+ BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 10GBASE-LR Ethernet links
Supported Data Rates: 614 Mbit/s - 11.3 Gbit/s
Up to 10 km via Singlemode OS2
LC-Simplex Connector
Specs
  • 1270 nm
  • 10 km
  • 11.3 G
  • BiDi
Protocols
  • 10G ETH
  • 10G FC
  • 1G ETH
  • 8G FC
  • CPRI
  • OBSAI
Auswahl "S2":
Ursprungsland
Deutschland,
Thailand,
Taiwan,
Vietnam und
Malaysia
Artikelnummer
P.B1696.10.AD:Sx

Produkt hinzufügen

If you add products discounts in this quote won't be valid anymore!
Du kannst ein Angebot von deinem Warenkorb aus erstellen.
Geh einfach zum Warenkorb und klicke auf Angebot erstellen.

Spezifikation

Form Factor SFP+
Connector / Polish LC-Simplex UPC
Interface Singlemode BiDi
Compliance Code BiDi LR
Operating Temperature Standard
Modulation NRZ
Distance 10 km
Temperature Range 0°C - 70°C
Bandwidth 614 Mbit/s - 11.3 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 1.5 W
CDR none
SGMII No
Inbuilt FEC No
Powerbudget (dB) 4.4 dB
Transmit min/max per lane -8.2 dBm / 0.5 dBm
Receiver min/max per lane -12.6 dBm / 0.5 dBm (overload) @10G
Wavelength TX (Typical) 1270 nm
Wavelength TX (Range) 1260 - 1280 nm
Wavelength RX (Typical) 1330 nm
Wavelength RX (Range) 1320 - 1340 nm
Laser DFB
Receiver Type PIN
Modulation NRZ @10G
Extinction Ratio 3.5 dB
Supported Protocols 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI

TRANSCEIVER KONFIGURATION MIT DER FLEXBOX

SO EINFACH GEHT'S!
Insert Transceiver into FLEXBOX
1. In die FLEXBOX einstecken
  • Lade unsere App herunter und starte sie: FLEXOPTIX App
  • Connect your FLEXBOX via USB
  • Stecke einen Universal Transceiver ein
Select and Configure
2. Auswählen und konfigurieren
  • Suche dir einfach Hersteller und Kompatibilität aus
  • Drücke Play
  • Die Konfiguration dauert nur ein paar Sekunden
Use with Device
3. verwenden
  • Benutze den Transceiver in deinem Gerät. Das war's!
  • Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder

Kompatibiltät

Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.

  • MSA Standard kompatibel
  • A10networks AXSK-SFP+ LR kompatibel
  • Accedian Networks 7ST-400 kompatibel
  • ADTRAN 1442410G1 kompatibel
  • ADVA 1061701851-02 kompatibel
  • Alcatel-Lucent Ent. SFP-10G-LR kompatibel
  • Allied Telesis AT-SP10LR kompatibel
  • Arista 3rd_Party SFP-10G-LR kompatibel
  • Arista SFP-10G-LR kompatibel
  • Aruba Networks(ex. HP Network) 455886-B21 kompatibel
  • Aruba Networks(ex. HP Network) J9151A kompatibel
  • Avaya (ex. Nortel) AA1403011-E6 kompatibel
  • Avaya (ex. Nortel) AA1403169-E6 kompatibel
  • Brocade / Ruckus 10G-SFPP-LR kompatibel
  • Brocade 10G-SFPP-LR kompatibel
  • Brocade XBR-000153 kompatibel
  • Calix 100-03498 kompatibel
  • Check Point CPAC-TR-10LR-C kompatibel
  • Chelsio SM10G-LR kompatibel
  • Ciena (ex. Nortel) NTTP30CFE6 kompatibel
  • Ciena 160-9108-900 kompatibel
  • Ciena XCVR-S10U27 kompatibel
  • Cisco (ex. Meraki) MA-SFP-10GB-LR kompatibel
  • Cisco Systems SFP-10G-BXU-I kompatibel
  • Cisco Systems SFP-10G-LR kompatibel
  • Clavister APP-SFP-10G-LR kompatibel
  • ComNet SFP-10G-BX10-U kompatibel
  • Cyan 280-0336-00 kompatibel
  • D-LINK DEM-432XT-DD kompatibel
  • Deciso 10G-BiDi-1270 kompatibel
  • Dell (ex. Force10) GP-10GSFP-1L kompatibel
  • Dell 331-5310 kompatibel
  • Dell 407-BBOP kompatibel
  • Delock 86171 kompatibel
  • Edge Core ET5402-LR kompatibel
  • Extreme (ex. Enterasys) 10GB-BX10-U kompatibel
  • Extreme 10302 kompatibel
  • F5 Networks OPT-0017 kompatibel
  • FibroLAN SFPP-S12-15 kompatibel
  • Fluke Networks # 12650 kompatibel
  • Fortinet FG-TRAN-SFP+LR kompatibel
  • Fortinet FN-TRAN-SFP+LR kompatibel
  • Fujitsu S26361-F3986-E4 kompatibel
  • Hitachi SFP-10GE-BIDI-U kompatibel
  • HP H3C JD094B kompatibel
  • HP H3C JL439A kompatibel
  • HP Storage (H-Series) 720999-002 kompatibel
  • Huawei SFP-10G-BXU1 kompatibel
  • IBM Storage 45W1216 kompatibel
  • Infinera (ex. Coriant) 81.73T-BX2733LR-R6 kompatibel
  • Infinera (ex. Transmode) TRX100100 kompatibel
  • Intel E10GSFPLR kompatibel
  • Juniper JNP-SFP-10G-BX10U kompatibel
  • Juniper SFP-10GE-LR kompatibel
  • Juniper SFPP-10GE-LR kompatibel
  • Keymile 37973134 kompatibel
  • KTI Networks # 12657 kompatibel
  • LANCOM # 12658 kompatibel
  • Lenovo (ex. Blade Network) BN-CKM-SP-LR kompatibel
  • Lenovo 90Y9412 kompatibel
  • LevelOne # 12659 kompatibel
  • MikroTik S+23LC10D kompatibel
  • Moxa # 12661 kompatibel
  • MRV SFP-10GD-BX23 kompatibel
  • Net Insight NPA0077-LRD1 kompatibel
  • Netgear AXM762 kompatibel
  • Niveo NVM10RLG kompatibel
  • Nokia (ex. Alcatel-Lucent) 3FE55743AB kompatibel
  • Nokia (ex. Alcatel-Lucent) 3FE62600DA kompatibel
  • Nokia (ex. Alcatel-Lucent) 3HE04823AA kompatibel
  • Nokia (ex. Alcatel-Lucent) 3HE05037AB kompatibel
  • Nokia Networks P206994 kompatibel
  • Nokia Siemens Networks V50017-U622-K500 kompatibel
  • Palo Alto Networks PAN-SFP-PLUS-LR kompatibel
  • QNAP SFP+ BIDI LR kompatibel
  • RAD SFP-P-5BDH kompatibel
  • Radware # 12664 kompatibel
  • Raisecom USFP+-192-S31-DL kompatibel
  • ReadyLinks 1/10-SM- 1310-10K kompatibel
  • Ribbon (ex. ECI) OTP10_S27BD kompatibel
  • Riedel 1990130 kompatibel
  • SolidRun SFP-10G-BXU kompatibel
  • SonicWALL 01-SSC-9786 kompatibel
  • Sophos ASG0000LR kompatibel
  • Supermicro AOC-E10GSFPLR kompatibel
  • Telco Systems BTI-SFP+-XBD10L-DD-27/33S kompatibel
  • TP-LINK TXM431-LR kompatibel
  • Transition Networks TN-10GSFP-LRB11 kompatibel
  • Ubiquiti Networks UF-SM-10G-S BU kompatibel
  • Waystream (ex. Packetfront) SFP-10GE-BX-U kompatibel
  • Zyxel SFP10G-LR kompatibel
Dein Hersteller / Kompatibilität fehlt?
