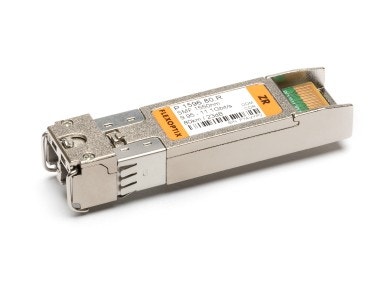

10G SFP+ ZR with dual CDR 80 km, λ1550 nm, LC-Duplex, Singlemode

- 1550 nm
- 80 km
- 11.1 G
- 10G ETH
- OTU2
- STM-64
-
Alternativen
-
Passende Produkte
-
Alternativen
-
Passende Produkte
Spezifikation
Form Factor | SFP+ |
---|---|
Connector / Polish | LC-Duplex PC |
Interface | Singlemode |
Compliance Code | ZR |
Distance | 80 km |
Temperature Range | 0°C - 70°C |
Bandwidth | 9.95 Gbit/s - 11.1 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 2.2 W |
CDR | TX and RX |
---|---|
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 23 dB |
Transmit min/max per lane | 0 dBm / 5 dBm |
Receiver min/max per lane | -23 dBm / -7 dBm (overload) @10G |
Wavelength TX (Typical) | 1550 nm |
Wavelength TX (Range) | 1530 - 1565 nm |
Wavelength RX (Typical) | 1550 nm |
Wavelength RX (Range) | 1530 - 1565 nm |
---|---|
Laser | EML |
Receiver Type | APD |
Modulation | NRZ @10G |
Transmit and Dispersion Penalty | 3 dB |
Extinction Ratio | 9 dB |
Supported Protocols | 10G Ethernet, OTU2, STM-64 |
TRANSCEIVER KONFIGURATION MIT DER FLEXBOX
SO EINFACH GEHT'S!- Lade unsere App herunter und starte sie: FLEXOPTIX App
- Connect your FLEXBOX via USB
- Stecke einen Universal Transceiver ein
- Suche dir einfach Hersteller und Kompatibilität aus
- Drücke Play
- Die Konfiguration dauert nur ein paar Sekunden
- Benutze den Transceiver in deinem Gerät. Das war's!
- Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder
Kompatibiltät
Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.
- MSA Standard kompatibel
- A10networks # kompatibel
- ADTRAN 1442440G1 kompatibel
- ADVA # kompatibel
- Allied Telesis AT-SP10ZR80/I kompatibel
- Avaya (ex. Nortel) AA1403016-E6 kompatibel
- Brocade # kompatibel
- Brocade / Ruckus 10G-SFPP-ZR kompatibel
- Calix 100-01971 kompatibel
- Check Point # kompatibel
- Chelsio # kompatibel
- Ciena (ex. Nortel) # kompatibel
- Ciena XCVR-S80V55 kompatibel
- Cisco Systems ONS-SC+-10G-ZR kompatibel
- Cisco Systems SFP-10G-ZR kompatibel
- D-LINK DEM-434XT kompatibel
- Dell # kompatibel
- Dell (ex. Force10) GP-10GSFP-1Z kompatibel
- Edge Core # kompatibel
- Extreme (ex. Enterasys) 10GB-ZR-SFPP kompatibel
- Extreme 10309 kompatibel
- F5 Networks # kompatibel
- FibroLAN SFPP-15-80 kompatibel
- Fluke Networks # kompatibel
- Fortinet # kompatibel
- Fujitsu FIM35051 kompatibel
- HP H3C # kompatibel
- Huawei OSX080N01 kompatibel
- Infinera (ex. Transmode) TRX100115 kompatibel
- Intel # kompatibel
- Juniper SFP-10GE-ZR kompatibel
- Keymile # kompatibel
- KTI Networks SFP-10G-ER-A kompatibel
- LANCOM # kompatibel
- Lenovo (ex. Blade Network) # kompatibel
- LevelOne # kompatibel
- MikroTik S+31DLC10D kompatibel
- Motorola # kompatibel
- Moxa # kompatibel
- MRV SFP-10GD-ZR kompatibel
- Netgear AXM762 kompatibel
- Nokia (ex. Alcatel-Lucent) 3FE65832AA kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE05894AA kompatibel
- Nokia Siemens Networks # kompatibel
- Nvidia (ex. Mellanox) # kompatibel
- Oracle # kompatibel
- Packetlight SL112 kompatibel
- Palo Alto Networks # kompatibel
- Radware # kompatibel
- Ribbon (ex. ECI) # kompatibel
- Solarflare # kompatibel
- Supermicro # kompatibel
- TP-LINK # kompatibel
- Transition Networks TN-10GSFP-LR7 kompatibel
- Viavi (ex. JDSU) CSFPPLUS-10G-5-2 kompatibel
- Zyxel # kompatibel
Was Kunden sagen
Wir sind in einem mehrjährigen Projekt zur Migration unserer Netzwerkinfrastruktur. Die programmierbaren Transceiver sollen uns dabei helfen zukünftig sehr viel Elektroschrott zu vermeiden. Positiv bisher: Die Anbindung und Programmierung per IOS und Windows App gelang mit der FlexBox sofort und ohne Probleme. Der Support hat schnell auf Anfragen reagiert und uns auf die richtige Konfiguration hingewiesen. Der Support hat für eines unsere DAC Kabel die Programmierung der Transceiver angepasst, so dass diese sauber erkannt werden. Der Bestellprozess passt gut zu unseren Bedürfnissen. Bisher sind wir sehr zufrieden!
