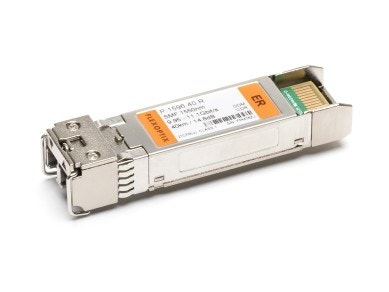

10G SFP+ ER with dual CDR 40 km, λ1550 nm, LC-Duplex, Singlemode
- 1550 nm
- 40 km
- 11.1 G
- 10G ETH
- OTU2
- STM-64
-
Alternativen
-
Passende Produkte
Geh einfach zum Warenkorb und klicke auf Angebot erstellen.
-
Alternativen
-
Passende Produkte
Spezifikation
Form Factor | SFP+ |
---|---|
Connector / Polish | LC-Duplex PC |
Interface | Singlemode |
Type | ER |
Distance | 40 km |
Temperature Range | 0°C - 70°C |
Bandwidth | 9.95 Gbit/s - 11.1 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1.5 W |
CDR | TX and RX |
---|---|
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 14.8 dB |
Transmit min/max per lane | -1 dBm / 4 dBm |
Receiver min/max per lane | -15.8 dBm / -1 dBm (overload) |
Wavelength TX (Typical) | 1550 nm |
Wavelength TX (Range) | 1530 - 1565 nm |
Wavelength RX (Typical) | 1550 nm |
Wavelength RX (Range) | 1530 - 1565 nm |
---|---|
Laser | EML |
Receiver Type | PIN |
Modulation | NRZ |
Transmit and Dispersion Penalty | 2 dB |
Extinction Ratio | 8.2 dB |
Supported Protocols | 10G Ethernet, OTU2, STM-64 |
TRANSCEIVER KONFIGURATION MIT DER FLEXBOX
SO EINFACH GEHT'S!- Lade unsere App herunter und starte sie: FLEXOPTIX App
- Connect your FLEXBOX via USB
- Stecke einen Universal Transceiver ein
- Suche dir einfach Hersteller und Kompatibilität aus
- Drücke Play
- Die Konfiguration dauert nur ein paar Sekunden
- Benutze den Transceiver in deinem Gerät. Das war's!
- Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder
Kompatibiltät
Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.
- MSA Standard kompatibel
- A10networks AXSK-SFP+ LR kompatibel
- ADTRAN 1442440G1 kompatibel
- ADVA 1061701861-01 kompatibel
- Alcatel-Lucent Ent. SFP-10G-ER kompatibel
- Allied Telesis AT-SP10ER40/I kompatibel
- Arista Networks SFP-10G-ER kompatibel
- Avaya (ex. Nortel) AA1403013-E6 kompatibel
- Brocade / Ruckus 10G-SFPP-ER kompatibel
- Brocade 10G-SFPP-ER kompatibel
- Brocade XBR-000174 kompatibel
- Calix 100-01511 kompatibel
- Check Point # kompatibel
- Chelsio # kompatibel
- Ciena (ex. Nortel) # kompatibel
- Ciena XCVR-S40V55 kompatibel
- Cisco Systems ONS-SC+-10G-ER kompatibel
- Cisco Systems SFP-10G-ER kompatibel
- D-LINK DEM-433XT-DD kompatibel
- Dell (ex. Force10) GP-10GSFP-1E kompatibel
- Dell 430-4585 kompatibel
- ECI OTPMR_PS5 kompatibel
- Edge Core # kompatibel
- Extreme (ex. Enterasys) 10GB-ER-SFPP kompatibel
- Extreme 10309 kompatibel
- F5 Networks # kompatibel
- FibroLAN SFPP-15-80 kompatibel
- Fluke Networks # kompatibel
- Fortinet # kompatibel
- Fujitsu FIM35032/110 kompatibel
- HP H3C JG234A kompatibel
- HP Storage (B-Series) AW538A kompatibel
- Huawei OSX040N01 kompatibel
- Infinera (ex. Transmode) TRX100114 kompatibel
- Intel E10GSFPER kompatibel
- Juniper SFP-10GE-ER kompatibel
- Keymile # kompatibel
- KTI Networks SFP-10G-ER-A kompatibel
- LANCOM # kompatibel
- Lenovo (ex. Blade Network) BN-CKM-SP-ER kompatibel
- Lenovo (ex. IBM) 45W2283[8G] kompatibel
- Lenovo (ex. IBM) 90Y9415 kompatibel
- LevelOne SFP-6141 kompatibel
- MikroTik # kompatibel
- Motorola # kompatibel
- Moxa SFP-10GERLC kompatibel
- MRV SFP-10GD-ER kompatibel
- Netgear AXM762 kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE05036AA kompatibel
- Nokia Siemens Networks V50017-U624-K500 kompatibel
- Nvidia (ex. Mellanox) # kompatibel
- Oracle # kompatibel
- Packetlight SL112 kompatibel
- Palo Alto Networks # kompatibel
- Radware # kompatibel
- Solarflare # kompatibel
- Supermicro # kompatibel
- TP-LINK # kompatibel
- Transition Networks # kompatibel
- Viavi (ex. JDSU) CSFPPLUS-10G-5-1 kompatibel
- Zyxel SFP10G-ER kompatibel
