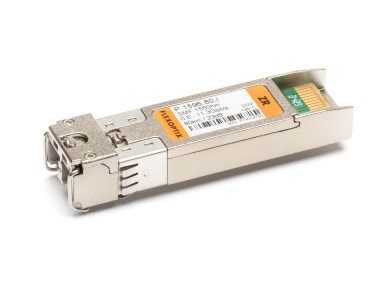

10G SFP+ ZR Industrial 80 km, λ1550 nm, LC-Duplex, Singlemode
- 1550 nm
- 80 km
- 11.3 G
- Industrial
- 10G ETH
- 10G FC
- 8G FC
- CPRI
- OBSAI
-
Alternativen
-
Passende Produkte
Geh einfach zum Warenkorb und klicke auf Angebot erstellen.
-
Alternativen
-
Passende Produkte
Spezifikation
Form Factor | SFP+ |
---|---|
Connector / Polish | LC-Duplex PC |
Interface | Singlemode |
Type | ZR |
Distance | 80 km |
Temperature Range | -40°C - 85°C |
Bandwidth | 600 Mbit/s - 11.3 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1.5 W |
CDR | none |
---|---|
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 23 dB |
Transmit min/max per lane | 0 dBm / 5 dBm |
Receiver min/max per lane | -23 dBm / -8 dBm (overload) |
Wavelength TX (Typical) | 1550 nm |
Wavelength TX (Range) | 1528 - 1565 nm |
Wavelength RX (Typical) | 1550 nm |
Wavelength RX (Range) | 1260 - 1600 nm |
---|---|
Laser | EML |
Receiver Type | APD |
Modulation | NRZ |
Transmit and Dispersion Penalty | 3 dB |
Extinction Ratio | 3.5 dB |
Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
TRANSCEIVER KONFIGURATION MIT DER FLEXBOX
SO EINFACH GEHT'S!- Lade unsere App herunter und starte sie: FLEXOPTIX App
- Connect your FLEXBOX via USB
- Stecke einen Universal Transceiver ein
- Suche dir einfach Hersteller und Kompatibilität aus
- Drücke Play
- Die Konfiguration dauert nur ein paar Sekunden
- Benutze den Transceiver in deinem Gerät. Das war's!
- Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder
Kompatibiltät
Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.
- MSA Standard kompatibel
- MSA Standard (8G) kompatibel
- A10networks # 12394 kompatibel
- Accedian Networks 7SP-402 kompatibel
- ADTRAN 1442440G1 kompatibel
- ADVA # 12395 kompatibel
- Allied Telesis AT-SP10ZR80/I kompatibel
- Arista Networks SFP-10G-ZR kompatibel
- Arris 781347 kompatibel
- Aruba Networks(ex. HP Network) J9153A kompatibel
- Avaya (ex. Nortel) AA1403016-E6 kompatibel
- Brocade / Ruckus 10G-SFPP-ZR kompatibel
- Brocade 10G-SFPP-ER kompatibel
- Brocade 10G-SFPP-ZR kompatibel
- Calix 100-01971 kompatibel
- Centec SFP+ ZR kompatibel
- Check Point # 12398 kompatibel
- Chelsio # 12399 kompatibel
- Ciena (ex. Nortel) # 12400 kompatibel
- Ciena XCVR-S80V55 kompatibel
- Cisco Systems ONS-SC+-10G-ZR kompatibel
- Cisco Systems SFP-10G-ZR kompatibel
- Cisco Systems SFP-10G-ZR-S kompatibel
- Cyan 280-0277-00 kompatibel
- D-LINK DEM-434XT kompatibel
- Dell # 12401 kompatibel
- Dell (ex. Force10) GP-10GSFP-1Z kompatibel
- ECI OTP10_ZR kompatibel
- Edge Core ET5402-ZR-I kompatibel
- Evertz SFP10G-TR15H kompatibel
- Extreme (ex. Enterasys) 10GB-ZR-SFPP kompatibel
- Extreme 10309 kompatibel
- F5 Networks # 12404 kompatibel
- FibroLAN SFPP-15-80 kompatibel
- Fluke Networks # 12406 kompatibel
- Fortinet # 12407 kompatibel
- Fujitsu FIM35051 kompatibel
- HP H3C JG234A kompatibel
- Huawei OSX080N01 kompatibel
- Huawei OSX080N04 kompatibel
- Infinera (ex. Transmode) TRX100115 kompatibel
- Intel E10GSFPLR kompatibel
- Juniper EX-SFP-10GE-ZR kompatibel
- Juniper SFP-10GE-ZR kompatibel
- Juniper SFPP-10GE-ZR kompatibel
- Keymile # 12412 kompatibel
- Keysight (ex. Ixia) SM1310-PLUS kompatibel
- KTI Networks SFP-10G-ER-A kompatibel
- LANCOM # 12414 kompatibel
- Lenovo (ex. Blade Network) # 12410 kompatibel
- LevelOne # 12415 kompatibel
- MikroTik S+31DLC10D kompatibel
- Motorola # kompatibel
- Moxa # 12417 kompatibel
- MRV SFP-10GD-ZR kompatibel
- Net Insight NPA0077-ZR01 kompatibel
- Netgear AXM762 kompatibel
- NetOptics SFP+KT-ER kompatibel
- Nokia (ex. Alcatel-Lucent) 3FE65832AA kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE09329AA kompatibel
- Nokia Siemens Networks # 12420 kompatibel
- Nortel / Juniper / NSN SFP+-ZR kompatibel
- Nvidia (ex. Mellanox) # kompatibel
- Oracle # kompatibel
- Packetlight SL112 kompatibel
- Palo Alto Networks PAN-SFP-ZX kompatibel
- RAD SFP-P-2DH kompatibel
- Radware # 12422 kompatibel
- Solarflare # kompatibel
- Supermicro # 12423 kompatibel
- Telco Systems BTI-10GEZR-DD-SFP+ kompatibel
- Telco Systems BTI-10GZR-DD-SFP+ kompatibel
- TP-LINK # kompatibel
- Transition Networks TN-10GSFP-LR7 kompatibel
- Zyxel # kompatibel
