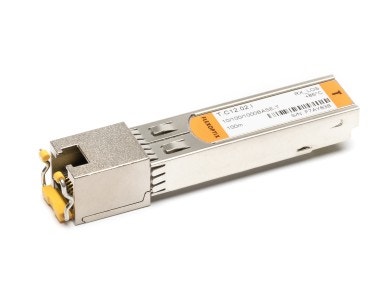

1000BASE-T Industrial Copper SFP 100 m, RJ-45, Preferred Master, RX_LOS, SERDES, 12 Mbit/s - 1.25 Gbit/s

Universal Copper SFP Transceiver
Use FLEXBOX to configure to almost any vendor
Supported Data Rates: 12.5 Mbit/s - 1.25 Gbit/s
Up to 100 m via CAT5e Cable
RJ-45 connector
Operating Temperature from -40°C to 85°C
Specs
  • Copper
  • 100 m
  • 1.25 G
  • Industrial
Protocols
  • 100M ETH
  • 10M ETH
  • 1G ETH
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
T.C12.02.I:Sx

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor SFP
Connector / Polish RJ-45
Interface Copper
Compliance Code T
Distance 100 m
Temperature Range -40°C - 85°C
Bandwidth 12.5 Mbit/s - 1.25 Gbit/s
Digital Diagnostic Management (DDM) not implemented
Power Consumption 1.05 W
Supported Protocols Ethernet, Fast Ethernet, Gigabit Ethernet

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
Your vendor / compatibility is missing?
