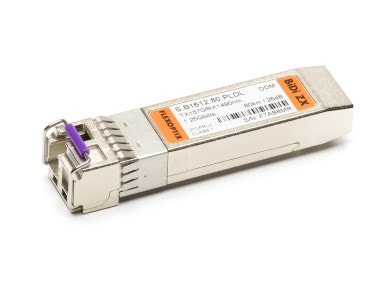

1G SFP BiDi ZX 80 km, ᵀˣ1570 / ᴿˣ1490 nm, DDM, LC-Simplex, Singlemode
- 1570 nm
- 80 km
- 1.25 G
- BiDi
- 100M ETH
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi ZX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 80 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 26 dB |
| Transmit min/max per lane | 0 dBm / 5 dBm |
| Receiver min/max per lane | -26 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1570 nm |
| Wavelength TX (Range) | 1563.5 - 1577 nm |
|---|---|
| Wavelength RX (Typical) | 1490 nm |
| Wavelength RX (Range) | 1480 - 1500 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Transmit and Dispersion Penalty | 1 dB |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # compatible
- ADTRAN # compatible
- ADVA # compatible
- Alcatel-Lucent Ent. SFP-GIG-LH70 compatible
- Allied Telesis # compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Aruba Networks(ex. HP Network) # compatible
- Avaya (ex. Nortel) # compatible
- Brocade # compatible
- Check Point # compatible
- Ciena (ex. Nortel) # compatible
- Cisco Systems GLC-BX80-D-I compatible
- D-LINK # compatible
- Dell # compatible
- Dell (ex. Force10) # compatible
- Edge Core # compatible
- Ericsson # compatible
- Extreme # compatible
- Extreme (ex. Enterasys) # compatible
- F5 Networks # compatible
- FibroLAN SF1G-ZF57 compatible
- Fluke Networks # compatible
- Fortinet # compatible
- Fujitsu # compatible
- H3C (ex. 3COM) # compatible
- Hirschmann # compatible
- HP H3C # compatible
- Huawei # compatible
- Infinera (ex. Transmode) # compatible
- Intel # compatible
- Juniper (ex BTI Systems) # compatible
- Juniper SFP-1GE-LH compatible
- Keymile # compatible
- KTI Networks # compatible
- LANCOM # compatible
- Lenovo (ex. Blade Network) # compatible
- LevelOne # compatible
- Lynx # compatible
- MikroTik # compatible
- Motorola # compatible
- Moxa SFP-1G40BLC compatible
- MRV SFP-GD-BZ54 compatible
- Netgear # compatible
- Nokia (ex. Alcatel-Lucent) # compatible
- Nokia Siemens Networks V50017-U468.K500 compatible
- Nvidia (ex. Mellanox) # compatible
- Palo Alto Networks # compatible
- Quanta # compatible
- RAD SFP-22B compatible
- Radware # compatible
- Ribbon (ex. ECI) # compatible
- TP-LINK # compatible
- Transition Networks # compatible
- Ubiquiti Networks # compatible
- Waystream (ex. Packetfront) # compatible
- Zyxel # compatible
