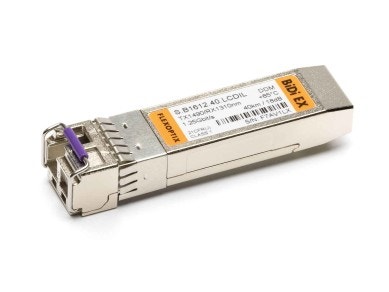

1G SFP BiDi EX Extended 40 km, ᵀˣ1490 / ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode
Universal SFP BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 1000BASE-EX Ethernet links
Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
Up to 40 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -20°C to 85°C, Digital Diagnocstic Monitoring (DDM)
Specs
- 1490 nm
- 40 km
- 1.25 G
- Extended
Protocols
- 100M ETH
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
Part number
S.B1612.40.LCDIL
Availability
4-6 weeks after ordering
Your price
List price
Your price
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
Form Factor | SFP |
---|---|
Connector / Polish | LC-Simplex UPC |
Interface | Singlemode BiDi |
Type | BiDi EX |
Distance | 40 km |
Temperature Range | -20°C - 85°C |
Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1 W |
---|---|
CDR | none |
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 19 dB |
Transmit min/max per lane | -5 dBm / 0 dBm |
Receiver min/max per lane | -24 dBm / -3 dBm (overload) |
Wavelength TX (Typical) | 1490 nm |
Wavelength TX (Range) | 1483.5 - 1497 nm |
---|---|
Wavelength RX (Typical) | 1310 nm |
Wavelength RX (Range) | 1290 - 1330 nm |
Laser | DFB |
Receiver Type | PIN |
Modulation | NRZ |
Extinction Ratio | 9 dB |
Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
1. Insert Into FLEXBOX
- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
2. Select And Configure
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
3. Use With Device
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1442140G1 compatible
- barox AC-SFP-BIB-LXE compatible
- Brocade / Ruckus E1MG-BXD compatible
- Calix 100-01671 compatible
- Ciena (ex. Nortel) NTTP59CFE6 compatible
- Cisco Systems GLC-BX40-DA-I compatible
- Coriant (ex. Tellabs) 81.S1GBEBX1153S compatible
- Extreme 10053 compatible
- Extreme 10056H compatible
- Huawei SFP-GE-LX-SM1550-BIDI compatible
- Perle PSFP-1000D-S1LC40D compatible
- RAD SFP-21B compatible
- Westermo 1100-0568 compatible
