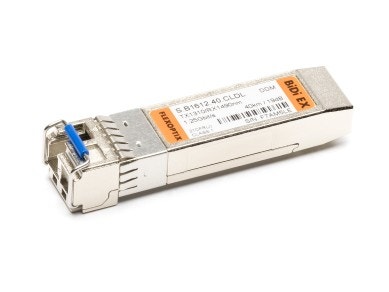

1G SFP BiDi EX 40 km, ᵀˣ1310 / ᴿˣ1490 nm, DDM, LC-Simplex, Singlemode
SFP
BiDi EX
Universal SFP BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 1000BASE-EX Ethernet links
Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
Up to 40 km via Singlemode OS2
LC-Simplex Connector
Digital Diagnocstic Monitoring (DDM)
Specs
- 1310 nm
- 40 km
- 1.25 G
- BiDi
Protocols
- 100M ETH
- 1G ETH
- 1G FC
Part number
S.B1612.40.CLDL
In stock
75 pcs
Your price
List price
Your price
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Type | BiDi EX |
| Distance | 40 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 1 W |
| CDR | none |
|---|---|
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 19 dB |
| Transmit min/max per lane | -5 dBm / 0 dBm |
| Receiver min/max per lane | -24 dBm / -3 dBm (overload) |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1270 - 1350 nm |
| Wavelength RX (Typical) | 1490 nm |
| Wavelength RX (Range) | 1480 - 1500 nm |
|---|---|
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ |
| Transmit and Dispersion Penalty | 1 dB |
| Extinction Ratio | 8.2 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
1. Insert Into FLEXBOX
- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
2. Select And Configure
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
3. Use With Device
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Accedian Networks 7SY-000 compatible
- ADTRAN 1200487G40 compatible
- ADTRAN 1442140G2 compatible
- ADVA 1061705874-01 compatible
- Alcatel-Lucent Ent. SFP-GIG-BX-U compatible
- Alcatel-Lucent Ent. SFP-GIG-BX-U20 compatible
- Aruba Networks(ex. HP Network) J4859C compatible
- Avaya (ex. Nortel) AA1419076-E6 compatible
- barox AC-SFP-BIA-LXE compatible
- Brocade / Ruckus E1MG-BXU compatible
- Calix 100-01670 compatible
- Ciena (ex. Nortel) NTTP58CFE6 compatible
- Cisco Systems (ex. Linksys) MGBBX1 compatible
- Cisco Systems GLC-BX40-U-I compatible
- Cyan 280-0132-00 compatible
- Cyan 280-0334-00 compatible
- Dell (ex. Force10) GP-SFP2-1Y-BXU compatible
- Extreme 10053 compatible
- FiberPlex SFP-SC24BD-3149-B compatible
- Huawei LE2MGSC40DE0 compatible
- Juniper EX-SFP-GE10KT13R14 compatible
- Keymile 37973096 compatible
- Netgear AGM732F compatible
- Nokia (ex. Alcatel-Lucent) 3FE28785AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE04324AA compatible
- Perle PSFP-1000D-S1LC40U compatible
- RAD SFP-21A compatible
- Telco Systems BTI-SFP-GBD40E-DD-31/49S compatible
- Westermo 1100-0567 compatible
