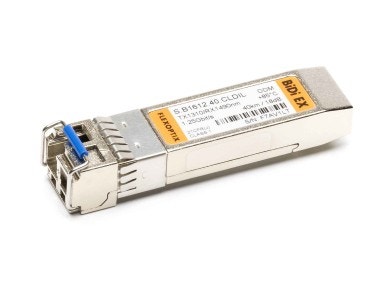

1G SFP BiDi EX Extended 40 km, ᵀˣ1310 / ᴿˣ1490 nm, DDM, LC-Simplex, Singlemode
SFP
BiDi EX
Universal SFP BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 1000BASE-EX Ethernet links
Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
Up to 40 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -20°C to 85°C, Digital Diagnocstic Monitoring (DDM)
Specs
- 1310 nm
- 40 km
- 1.25 G
- Extended
Protocols
- 100M ETH
- 1G ETH
- 1G FC
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi EX |
| Distance | 40 km |
| Temperature Range | -20°C - 85°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 1 W |
|---|---|
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 18 dB |
| Transmit min/max per lane | -5 dBm / 0 dBm |
| Receiver min/max per lane | -23 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1303.5 - 1317 nm |
|---|---|
| Wavelength RX (Typical) | 1490 nm |
| Wavelength RX (Range) | 1470 - 1510 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
1. Insert Into FLEXBOX
- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
2. Select And Configure
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
3. Use With Device
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1200487G40 compatible
- ADTRAN 1442140G2 compatible
- barox AC-SFP-BIA-LXE compatible
- Brocade / Ruckus E1MG-BXU compatible
- Calix 100-01670 compatible
- Ciena (ex. Nortel) NTTP58CFE6 compatible
- Cisco Systems GLC-BX40-U-I compatible
- Coriant (ex. Tellabs) 81.S1GBEBX1133S compatible
- Dell (ex. Force10) GP-SFP2-1Y-BXU compatible
- Extreme 10053 compatible
- Extreme 10057H compatible
- Huawei SFP-GE-LX-SM1310-BIDI compatible
- Perle PSFP-1000D-S1LC40U compatible
- RAD SFP-21A compatible
- Westermo 1100-0567 compatible
