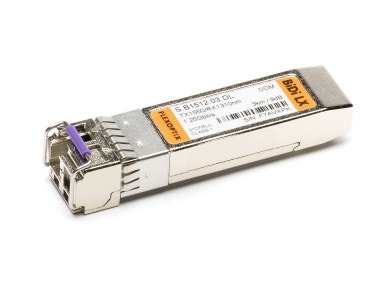

1G SFP BiDi LX 3 km, ᵀˣ1550 / ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode
- 1550 nm
- 3 km
- 1.25 G
- BiDi
- 100M ETH
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 3 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 9 dB |
| Transmit min/max per lane | -14 dBm / -8 dBm |
| Receiver min/max per lane | -23 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1550 nm |
| Wavelength TX (Range) | 1480 - 1580 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1600 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 6 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Cisco Systems GLC-BX-D compatible
- Fortinet FG-TRAN-LX compatible
- Juniper EX-SFP-GE10KT15R13 compatible
- MikroTik S-53LC20D compatible
- Netgear AGM732F compatible
- Planet MGB-LB10 compatible
- Siemens SFP992-1LD compatible
- TP-LINK TL-SM311LS compatible
- Ubiquiti Networks UF-SM-1G-S BD compatible
