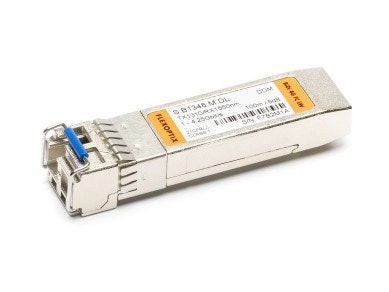

4G Fibre Channel SFP BiDi 100 m, ᵀˣ1310 / ᴿˣ1550 nm, DDM, LC-Simplex, Multimode
- 1310 nm
- 100 m
- 4.25 G
- BiDi
- 1G ETH
- 1G FC
- 2G FC
- 4G FC
- STM-16
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Multimode BiDi |
| Compliance Code | BiDi 4G FC LW |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 100 m |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 1 Gbit/s - 4.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 6 dB |
| Transmit min/max per lane | -9 dBm / -2 dBm |
| Receiver min/max per lane | -15 dBm / 0 dBm (overload) @4G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1270 - 1360 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1500 - 1600 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @4G |
| Supported Protocols | 1G Fibre Channel, 2G Fibre Channel, 4G Fibre Channel, Gigabit Ethernet, STM-16 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
