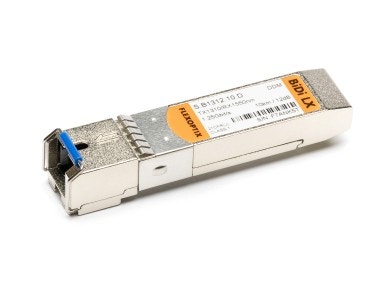

1G SFP BiDi LX 10 km, ᵀˣ1310 / ᴿˣ1550 nm, DDM, SC-Simplex, Singlemode
- 1310 nm
- 10 km
- 1.25 G
- BiDi
- 100M ETH
- 1G ETH
- 1G FC
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | SC-Simplex PC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 10 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 12 dB |
| Transmit min/max per lane | -9 dBm / -3 dBm |
| Receiver min/max per lane | -21 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1270 - 1350 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1530 - 1570 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADVA 0061003012 compatible
- Allnet ALL4761 compatible
- Aruba Networks(ex. HP Network) J4859C compatible
- Calix 100-01666 compatible
- Ciena XCVR-B10U31 compatible
- Cisco Systems GLC-BX-U compatible
- Dell 407-BBOO compatible
- Ericsson RDH10248/1 compatible
- Huawei SFP-GE-LX-SM1310-BIDI compatible
- Juniper EX-SFP-GE10KT13R15 compatible
- MikroTik S-35LC20D compatible
- Moxa SFP-1G10ALC compatible
- Netgear AGM732F compatible
- Ubiquiti Networks UF-SM-1G-S BU compatible
- Westermo 1100-0558 compatible
- Zyxel SFP-BX1310-10 compatible
