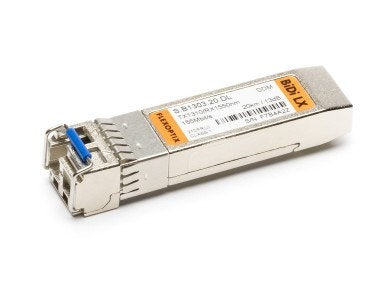

100M SFP BiDi LX 20 km, ᵀˣ1310 / ᴿˣ1550 nm, DDM, LC-Simplex, Singlemode
- 1310 nm
- 20 km
- 155 M
- BiDi
- 100M ETH
- STM-1
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi LX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 20 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 155 Mbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 13 dB |
| Transmit min/max per lane | -15 dBm / -8 dBm |
| Receiver min/max per lane | -28 dBm / -8 dBm (overload) @100M - 800M |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1360 nm |
|---|---|
| Wavelength RX (Typical) | 1550 nm |
| Wavelength RX (Range) | 1500 - 1600 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @100M - 800M |
| Extinction Ratio | 8.2 dB |
| Supported Protocols | Fast Ethernet, STM-1 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # compatible
- ADTRAN 1442702PG1 compatible
- ADVA # compatible
- Alcatel-Lucent Ent. SFP-100-BX-U compatible
- Allied Telesis AT-SPFXBD-LC-13 compatible
- Arris # compatible
- Aruba Networks # compatible
- Aruba Networks(ex. HP Network) # compatible
- Avaya (ex. Nortel) AA1419082-E5 compatible
- Bluecoat # compatible
- Broadcom # compatible
- Brocade # compatible
- Brocade / Ruckus E1MG-100FX-IR compatible
- Check Point # compatible
- Ciena (ex. Nortel) # compatible
- Ciena XCVR-A10S31 compatible
- Cisco (ex. Meraki) # compatible
- Cisco Systems (ex. Linksys) MFEBX1 compatible
- Cisco Systems GLC-FE-100BX-U compatible
- Cisco Systems ONS-SI-155-I1 compatible
- D-LINK # compatible
- Dell # compatible
- Dell (ex. Force10) # compatible
- Edge Core ET3203-BX20 compatible
- Ericsson # compatible
- Extreme (ex. Enterasys) # compatible
- Extreme 10059 compatible
- F5 Networks # compatible
- FiberPlex SFP-SC03BD-3155-B compatible
- FibroLAN # compatible
- Fluke Networks # compatible
- Fortinet # compatible
- Fujitsu # compatible
- H3C (ex. 3COM) # compatible
- Hirschmann SFP-FAST-BA SM/LC EEC compatible
- HP H3C # compatible
- Huawei SFP-FE-LX-SM1310-BIDI compatible
- Infinera (ex. Transmode) # compatible
- Intel # compatible
- Juniper (ex BTI Systems) # compatible
- Juniper EX-SFP-FE20KT13R15 compatible
- Juniper SFP-FE20KT13R15 compatible
- Keymile 37973061 compatible
- Keysight (ex. Ixia) # compatible
- Korenix SFP100SM20B13D compatible
- KTI Networks # compatible
- LANCOM # compatible
- Lenovo (ex. Blade Network) # compatible
- LevelOne SFP-7321 compatible
- Lynx # compatible
- Marconi SU66AA compatible
- Marconi SU66AE compatible
- McAfee # compatible
- MikroTik # compatible
- Motorola # compatible
- Moxa # compatible
- MRV SFP-FD-BX35 compatible
- NetApp # compatible
- Netgear # compatible
- NetOptics # compatible
- Nexans 88645902 compatible
- Nokia (ex. Alcatel-Lucent) 3FE29195AA01 compatible
- Nokia Siemens Networks V50017-U403-K500 compatible
- Nokia-Siemens (ex. Atrica) AT10017-ID-R compatible
- Nvidia (ex. Mellanox) # compatible
- Oracle # compatible
- Orckit-Corrigent # compatible
- Packetlight # compatible
- Palo Alto Networks # compatible
- Perle PSFP-100D-S1LC20U compatible
- Planet MFB-FA20 compatible
- Quanta # compatible
- RAD SFP-10A compatible
- RAD SFP-10AD compatible
- Radware # compatible
- Ribbon (ex. ECI) OTR1_S3BD compatible
- Riedel 1090083 compatible
- SonicWALL # compatible
- Sophos # compatible
- Telco Systems BTI-SFP-FBD20L-31/55S compatible
- TP-LINK # compatible
- Transition Networks TN-SFP-OC3SB21 compatible
- TRENDnet # compatible
- Ubiquiti Networks # compatible
- WatchGuard # compatible
- Waystream (ex. Packetfront) # compatible
- Westermo 1100-0145 compatible
- Zyxel SFP-100BX1310-20 compatible
