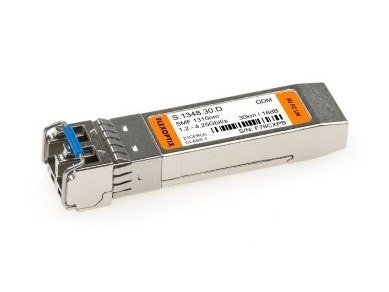

4G Fibre Channel SFP 30 km, λ1310 nm, DDM, LC-Duplex, Singlemode

Universal Fibre Channel SFP Transceiver
Use FLEXBOX to configure to almost any vendor
Fibre Channel (FC) support for storage area network (SAN) interconnect
Supported Data Rates: 1.25 Gbit/s - 4.25 Gbit/s
Up to 30 km via Singlemode OS2
LC-Duplex Connector
Digital Diagnocstic Monitoring (DDM)
Specs
  • 1310 nm
  • 30 km
  • 4.25 G
Protocols
  • 1G ETH
  • 1G FC
  • 2G FC
  • 4G FC
  • STM-16
Request compatibility
Part number
S.1348.30.D
Availability
4-6 weeks after ordering
Your price
83.92 EUR
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor SFP
Connector / Polish LC-Duplex PC
Interface Singlemode
Compliance Code 4G FC LW
Operating Temperature Standard
Modulation NRZ
Distance 30 km
Temperature Range 0°C - 70°C
Bandwidth 1.25 Gbit/s - 4.25 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 1 W
CDR none
SGMII No
Inbuilt FEC No
Powerbudget (dB) 18 dB
Transmit min/max per lane 0 dBm / 5 dBm
Receiver min/max per lane -18 dBm / -3 dBm (overload) @4G
Wavelength TX (Typical) 1310 nm
Wavelength TX (Range) 1260 - 1360 nm
Wavelength RX (Typical) 1310 nm
Wavelength RX (Range) 1260 - 1600 nm
Laser DFB
Receiver Type PIN
Modulation NRZ @4G
Supported Protocols 1G Fibre Channel, 2G Fibre Channel, 4G Fibre Channel, Gigabit Ethernet, STM-16

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • ADVA 0061703805 compatible
  • Brocade XBR-000146 compatible
  • Cisco Systems DS-SFP-FC4G-LW compatible
  • HP Storage (B-Series) AN211A compatible
  • IBM Storage 45W0499 compatible
  • Packetlight SL9 compatible
  • QLogic SFP4-LW-1PK compatible
  • Riedel 1990006 compatible
