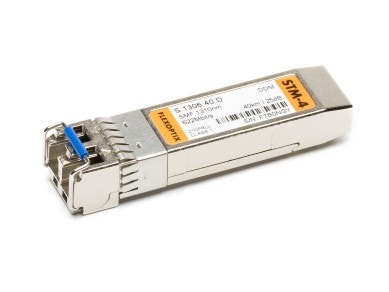

622M SFP STM-4 40 km, λ1310 nm, DDM, LC-Duplex, Singlemode
- 1310 nm
- 40 km
- 622 M
- 100M ETH
- STM-1
- STM-4
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | STM-4 |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 40 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 622 Mbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 25 dB |
| Transmit min/max per lane | -3 dBm / 2 dBm |
| Receiver min/max per lane | -28 dBm / -8 dBm (overload) @100M - 800M |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1274 - 1356 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1600 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @100M - 800M |
| Extinction Ratio | 10 dB |
| Supported Protocols | Fast Ethernet, STM-1, STM-4 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1184544P1 compatible
- ADTRAN 1184544PG1 compatible
- Barnfind BTSFP-LX-SM-0640 compatible
- Brocade / Ruckus OC12-SFP-LR1 compatible
- Ciena (ex. Nortel) NTTP05EF compatible
- Cisco Systems ONS-SI-622-L1 compatible
- Cisco Systems SFP-OC12-LR1 compatible
- Coriant (ex. Tellabs) TR-0005 compatible
- Ericsson RDH90120/C0228 compatible
- Marconi SU67AB compatible
- Net Insight NPA0014-LL11 compatible
- Nokia (ex. Alcatel-Lucent) 1AB196360006 compatible
- Nokia (ex. Alcatel-Lucent) 1AB376360002 compatible
- Nokia (ex. Alcatel-Lucent) OM622M-L4.1 compatible
- Nokia Siemens Networks V50017-U331-K500 compatible
- Packetlight SL7 compatible
- Ribbon (ex. ECI) OTR4_L3 compatible
- SagemCOM 252586245 compatible
- Transition Networks TN-SFP-OC12S4 compatible
