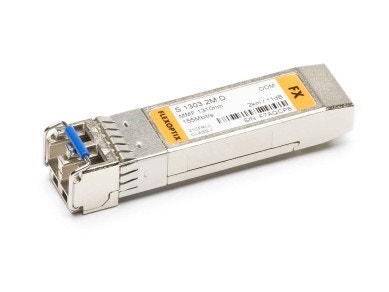

100M SFP FX 2 km, λ1310 nm, DDM, LC-Duplex, Multimode
- 1310 nm
- 2 km
- 155 M
- 100M ETH
- STM-1
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Multimode |
| Compliance Code | FX |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 2 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 100 Mbit/s - 155 Mbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 11 dB |
| Transmit min/max per lane | -19 dBm / -14 dBm |
| Receiver min/max per lane | -30 dBm / -5 dBm (overload) @100M - 800M |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1360 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1620 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @100M - 800M |
| Extinction Ratio | 8.2 dB |
| Supported Protocols | Fast Ethernet, STM-1 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # 13159 compatible
- ABB 1MRK010501-AA compatible
- ADTRAN 1184543P3 compatible
- Advantech SFP-FXM/LC-AE compatible
- Alcatel-Lucent Ent. SFP-100-MM compatible
- Allied Telesis AT-SPFX/2 compatible
- Aruba Networks(ex. HP Network) J9054C compatible
- Avaya (ex. Nortel) AA1419074-E6 compatible
- barox AC-SFP-FXMME compatible
- Brocade # 13163 compatible
- Brocade / Ruckus E1MG-100FX-OM compatible
- Brocade / Ruckus OC12-SFP-MM compatible
- Check Point # 13165 compatible
- Ciena (ex. Nortel) NTTP02AD compatible
- Ciena (ex. Nortel) NTTP08AC compatible
- Cisco Systems (ex. Linksys) MFEFX1 compatible
- Cisco Systems GLC-FE-100FX compatible
- Cisco Systems GLC-FE-100FX-RGD compatible
- Cisco Systems SFP-OC3-MM compatible
- ComNet SFP-2 compatible
- Cyan 280-0228-00 compatible
- D-LINK DEM-211 compatible
- Dell (ex. Force10) GP-SFP2-1F compatible
- Digicomm SFM-5000-L31 compatible
- DirectOut SFP-100FX compatible
- Edge Core ET3201-FXP compatible
- Ericsson RDH90120/10213 compatible
- Extreme (ex. Enterasys) MGBIC-LC04 compatible
- Extreme 10067 compatible
- Ferrofish SFP-FE-MM1310 compatible
- FiberPlex SFP-MC03XC-3131-2 compatible
- FibroLAN # 13169 compatible
- Fluke Networks SFP-100FX compatible
- Fortinet FG-TRAN-LX compatible
- Fortinet FS-TRAN-FX compatible
- Fujitsu # 13171 compatible
- H3C (ex. 3COM) 3CSFP81 compatible
- Hirschmann M-FAST SFP-MM/LC compatible
- HP H3C JD102B compatible
- Huawei SFP-FE-SX-MM1310 compatible
- Infinera (ex. Transmode) # 13189 compatible
- Intel # 13174 compatible
- Juniper (ex BTI Systems) # 13164 compatible
- Keymile # 13175 compatible
- Keymile 37013009 compatible
- Korenix SFP100MMD compatible
- KTI Networks # 13177 compatible
- kvm-tec KT-7008 compatible
- LAWO 981/60-80 compatible
- Lenovo (ex. Blade Network) # 13173 compatible
- LevelOne SFP-1101 compatible
- Marconi SU56AA compatible
- MikroTik SFP FX compatible
- Moxa SFP-1FEMLC-T compatible
- MRV SFP-O3D-M compatible
- Net Insight NPA0016-SS11 compatible
- Netgear AFM735 compatible
- NetOptics SFPKT-FX compatible
- Nexans 88645896 compatible
- Nokia (ex. Alcatel-Lucent) 3FE25778AA compatible
- Nokia Siemens Networks # 13182 compatible
- Overture 3000-078 compatible
- Palo Alto Networks # 13184 compatible
- Perle PSFP-100-M2LC2 compatible
- Planet MFB-FX compatible
- RAD SFP-1D compatible
- Radware # 13185 compatible
- Redback SFP-OC3-MM compatible
- Redlion (ex. Sixnet) FMFIBER-SFP-4K compatible
- Ribbon (ex. ECI) # 13167 compatible
- Riedel 1990002 compatible
- Riverstone SFPFX-01 compatible
- Rockwell 783-SFP100FX compatible
- Telco Systems BTI-SFP-FMM-LC compatible
- Transition Networks TN-SFP-OC3M compatible
- Ubiquiti Networks SFP FX compatible
- Volktek FPM-107 compatible
- Wago 852-202 compatible
- Waystream (ex. Packetfront) # 13183 compatible
- Westermo 1100-0531 compatible
- Zyxel SFP-100FX-2 compatible
