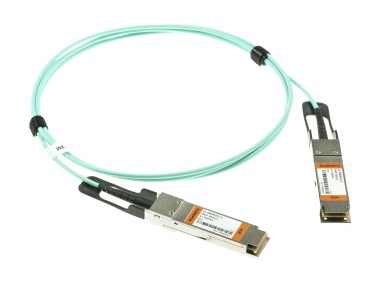

40G QSFP+ AOC Multimode Fiber, 1 - 100 m

Universal Active Optical Cable (AOC), 1 - 100 m
Use FLEXBOX to configure to almost any vendor
QSFP+ to QSFP+
Supports Datarates from 10.31 to 44.8 Gbit/s
Modules are permanently attached to each end
Low power consumption < 3 W (less than 1.5 W per terminal)
Easy cable routing thanks to small diameter (Ø 2 mm) and bend radius
Connect different host systems by configuring each side individually
Specs
  • Fiber
  • 1m - 100m
  • 44.8 G
  • Active
Protocols
  • 10G ETH
  • 40G ETH
Request compatibility
Part number
Q.A8540G.z
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

  • Alternatives

2x
40G QSFP+ SR4 100 m, 4x λ850 nm, MTP/MPO-8/12, Multimode
40G QSFP+ SR4 | 100 m, 4x λ850 nm, MTP/MPO-8/12, Multimode
1393 pcs in stock 87.94 EUR
+
MTP® to MTP® Multimode OM3 cable 8 Cores, MPO compliant, 50/125 µm, aqua, 0.5 m - 100 m
MTP&reg; to MTP&reg; Multimode OM3 cable | 8 Cores, MPO compliant, 50/125 &#181;m, aqua, 0.5 m - 100 m
As low as 96.85 EUR

Specification

Type AOC
Form Factor QSFP+ to QSFP+
Interface Active Optical Cable
Length 70 m
Temperature Range 0°C - 70°C
Bandwidth 41.24 Gbit/s - 44.8 Gbit/s
Digital Diagnostic Management (DDM) not implemented
Power Consumption 3 W (1.5 W + 1.5 W)
CDR none
Modulation NRZ
Supported Protocols 40G Ethernet, 10G Ethernet

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again
