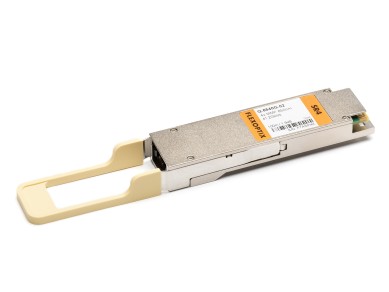

40G QSFP+ SR4 100 m, 4x λ850 nm, MTP/MPO-8/12, Multimode

- 4x 850 nm
- 100 m
- 41.2 G
- MTP/MPO-8/12
- 10G ETH
- 40G ETH
-
Alternatives
-
Matching Products
-
~Jun 10, 2025+780 pcs
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
Form Factor | QSFP+ |
---|---|
Connector / Polish | MTP/MPO-8/12 PC |
Interface | Multimode |
Compliance Code | SR4 |
Operating Temperature | Standard |
Modulation | NRZ |
Distance | 100 m |
Temperature Range | 0°C - 70°C |
Lane Count | 4x (Tx/Rx) |
Bandwidth | 41.2 Gbit/s |
---|---|
Bandwidth Per Lane | 10.3 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1.5 W |
CDR | none |
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 1.9 dB |
Transmit min/max per lane | -7.6 dBm / 1 dBm |
Receiver min/max per lane | -9.5 dBm / 2.4 dBm (overload) @40G |
---|---|
Wavelength TX (Typical) | 4x 850 nm |
Wavelength TX (Range) | 840 - 860 nm |
Wavelength RX (Typical) | 4x 850 nm |
Laser | VCSEL |
Receiver Type | PIN |
Modulation | NRZ @40G |
Extinction Ratio | 3 dB |
Supported Protocols | 40G Ethernet, 10G Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks AXSK-QSFP-SR compatible
- ADVA 1061800774-01 compatible
- ADVA 1061800790-01 compatible
- Alcatel-Lucent Ent. QSFP-40G-SR compatible
- Alcatel-Lucent Ent. QSFP-4X10G-SR compatible
- Allied Telesis AT-QSFPSR4 compatible
- Arista 3rd_Party QSFP-40G-SR4 compatible
- Arista QSFP-40G-SR4 compatible
- Aruba Networks(ex. HP Network) JH231A compatible
- Avaya (ex. Nortel) AA1404005-E6 compatible
- Brocade 40G-QSFP-SR4 compatible
- Brocade 40G-QSFP-SR4-INT compatible
- Brocade XBR-40G-SR4-INT-0286 compatible
- Check Point CPAC-TR-40SR-QSFP-300m compatible
- Check Point CPAC-TR-40SR-SSM160-QSFP compatible
- Chelsio SM40G-SR compatible
- Ciena 160-9503-900 compatible
- Cisco (ex. Meraki) MA-QSFP-40G-SR4 compatible
- Cisco Systems QSFP-40G-SR4 compatible
- Cisco Systems QSFP-40G-SR4-S compatible
- Cumulus Networks QSFP+ SR4 compatible
- Dell (ex. Force10) GP-QSFP-40GE-1SR compatible
- Dell (ex. Force10) QSFP-40G-SR4 compatible
- Dell 407-10929 compatible
- Dell 407-BBOZ compatible
- Dell 430-4593 compatible
- Edge Core QSFP+ SR 4 compatible
- emcore QSFP+ SR4 compatible
- Extreme (ex. Enterasys) 40GB-SR4-QSFP compatible
- Extreme 10319 compatible
- F5 Networks OPT-0025 compatible
- F5 Networks OPT-0036 compatible
- Forcepoint IAC-QSFP-FOT compatible
- Fortinet FN-TRAN-QSFP+SR compatible
- Gigamon QSF-502 compatible
- HP H3C JG325A compatible
- HP H3C JG325B compatible
- Huawei QSFP-40G-iSR4 compatible
- Huawei QSFP-40G-SR4 compatible
- IBM Storage 49Y7884 compatible
- Intel E40GQSFPSR compatible
- Juniper JNP-QSFP-40G-SR4 compatible
- Juniper QFX-QSFP-40G-SR4 compatible
- Juniper QFX-QSFP-40GE-ESR4 compatible
- Juniper QFX-QSFP-40GE-SR4 compatible
- Juniper QSFPP-40GBASE-SR4 compatible
- Juniper QSFPP-4X10GE-SR compatible
- Juniper SRX-QSFP-40G-SR4 compatible
- Kemp Technologies LM-QSFP-40G-SR compatible
- Keysight (ex. Ixia) QMM850-PLUS compatible
- LANCOM SFP-SR-MPO40 compatible
- MikroTik Q+85MP01D compatible
- MRV QSFP-40G-SX compatible
- NetApp X-QSFP-40G-SR4-R6 compatible
- NetApp X65402 compatible
- NetOptics QSFP+KT-50SR4 compatible
- Netscout 321-1646 compatible
- Nokia (ex. Alcatel-Lucent) 3HE07928AA compatible
- Nokia Networks 1AB474800006 compatible
- Nokia Networks P317805 (FOCX) compatible
- NoviFlow 400000509 compatible
- Nvidia (ex. Mellanox) MC2210411-SR4 compatible
- Nvidia (ex. Mellanox) MMA1B00-B150D compatible
- Oracle X2124A-N compatible
- Packetlight QSFP+-SR-1102 compatible
- Palo Alto Networks PAN-QSFP-40GBASE-SR4 compatible
- Penguin Computing QSFP+ SR4 compatible
- Planet QSFP-40G-SR4 compatible
- Pure Storage FA-40Gb-Eth-SFP-SR compatible
- QLogic QSFP+ SR4 compatible
- Quanta QSFP+ SR4 compatible
- Radware 9062226 compatible
- Solarflare SFM40G-SR4 compatible
- SonicWALL 02-SSC-0381 compatible
- Spirent ACC-6076A compatible
- Spirent ACC-6089A compatible
- Stormshield NA-TRANS-QSFP40-SR compatible
- Supermicro AOM-TQSFP-79EQPZ-AVG compatible
- Telco Systems BTI-40GSR-DD-QSFP compatible
- Trend Micro (ex. TippingPoint) TPNN0067 compatible
- VSS monitoring VX_00003 compatible
- WatchGuard WG8022 compatible
