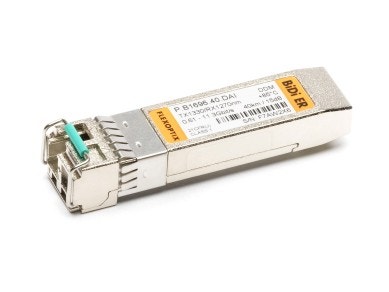

10G SFP+ BiDi ER Industrial 40 km, ᵀˣ1330 / ᴿˣ1270 nm, LC-Simplex, Singlemode
- 1330 nm
- 40 km
- 11.3 G
- Industrial
- 10G ETH
- 10G FC
- 1G ETH
- 1G FC
- 8G FC
- CPRI
- OBSAI
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Compliance Code | BiDi ER |
| Operating Temperature | Industrial |
| Modulation | NRZ |
| Distance | 40 km |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 614 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 15 dB |
| Transmit min/max per lane | 0.5 dBm / 6 dBm |
| Receiver min/max per lane | -14.5 dBm / 0.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1330 nm |
| Wavelength TX (Range) | 1320 - 1340 nm |
|---|---|
| Wavelength RX (Typical) | 1270 nm |
| Wavelength RX (Range) | 1260 - 1280 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 1G Fibre Channel, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Aruba Networks(ex. HP Network) J9151A compatible
- Cisco Systems SFP-10G-BX40D-I compatible
- Juniper SFP-10GE-ER compatible
- Juniper SFPP-10GE-BX40D-IT compatible
- MikroTik S+2332LC40D compatible
- Nokia (ex. Alcatel-Lucent) 3FE55744AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE05036AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE10452AB compatible
- Nokia Networks 475344A (AOXG) compatible
- RAD SFP-P-6ADH compatible
