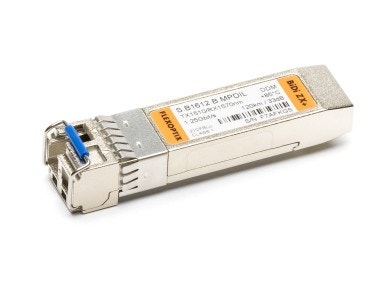

1G SFP BiDi ZX+ Extended 120 km, ᵀˣ1510 / ᴿˣ1570 nm, DDM, LC-Simplex, Singlemode
- 1510 nm
- 120 km
- 1.25 G
- Extended
- 100M ETH
- 1G ETH
- 1G FC
- STM-1
- STM-4
-
Alternativen
-
Passende Produkte
Geh einfach zum Warenkorb und klicke auf Angebot erstellen.
-
Alternativen
-
Passende Produkte
Spezifikation
Form Factor | SFP |
---|---|
Connector / Polish | LC-Simplex UPC |
Interface | Singlemode BiDi |
Compliance Code | BiDi ZX+ |
Distance | 120 km |
Temperature Range | -20°C - 85°C |
Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
Digital Diagnostic Management (DDM) | Yes, internally calibrated |
Power Consumption | 1 W |
CDR | none |
---|---|
SGMII | No |
Inbuilt FEC | No |
Powerbudget (dB) | 33 dB |
Transmit min/max per lane | 0 dBm / 5 dBm |
Receiver min/max per lane | -33 dBm / -8 dBm (overload) @1G |
Wavelength TX (Typical) | 1510 nm |
Wavelength TX (Range) | 1504 - 1517.5 nm |
Wavelength RX (Typical) | 1570 nm |
Wavelength RX (Range) | 1550 - 1590 nm |
---|---|
Laser | DFB |
Receiver Type | APD |
Modulation | NRZ @1G |
Transmit and Dispersion Penalty | 1 dB |
Extinction Ratio | 9 dB |
Supported Protocols | 1G Fibre Channel, Fast Ethernet, Gigabit Ethernet, STM-1, STM-4 |
TRANSCEIVER KONFIGURATION MIT DER FLEXBOX
SO EINFACH GEHT'S!- Lade unsere App herunter und starte sie: FLEXOPTIX App
- Connect your FLEXBOX via USB
- Stecke einen Universal Transceiver ein
- Suche dir einfach Hersteller und Kompatibilität aus
- Drücke Play
- Die Konfiguration dauert nur ein paar Sekunden
- Benutze den Transceiver in deinem Gerät. Das war's!
- Du brauchst ihn für ein anderes Gerät? - Rekonfiguriere ihn einfach immer wieder
Kompatibiltät
Alle zitierten Marken, eingetragenen Unternehmen und Referenzen sind das alleinige Eigentum der jeweiligen Unternehmen und werden ausschließlich zur Identifizierung der Produkte verwendet.
- MSA Standard kompatibel
- A10networks # kompatibel
- ADTRAN # kompatibel
- ADVA # kompatibel
- Allied Telesis # kompatibel
- Arista 3rd_Party SFP-1G-LX kompatibel
- Arista SFP-1G-LX kompatibel
- Aruba Networks(ex. HP Network) # kompatibel
- Avaya (ex. Nortel) # kompatibel
- Brocade # kompatibel
- Check Point # kompatibel
- Ciena (ex. Nortel) # kompatibel
- Cisco Systems GLC-BX80-U-I kompatibel
- D-LINK # kompatibel
- Dell # kompatibel
- Dell (ex. Force10) # kompatibel
- Edge Core # kompatibel
- Ericsson # kompatibel
- Extreme (ex. Enterasys) # kompatibel
- Extreme 10053H kompatibel
- F5 Networks # kompatibel
- FibroLAN # kompatibel
- Fluke Networks # kompatibel
- Fortinet # kompatibel
- Fujitsu # kompatibel
- H3C (ex. 3COM) # kompatibel
- Hirschmann SFP-GIG-AB LX/LC kompatibel
- Hirschmann SFP-GIG-BB LX/LC kompatibel
- HP H3C # kompatibel
- Huawei # kompatibel
- Infinera (ex. Transmode) # kompatibel
- Intel # kompatibel
- Juniper (ex BTI Systems) # kompatibel
- Juniper EX-SFP-GE10KT13R14 kompatibel
- Juniper SRX-SFP-1GE-LX kompatibel
- Keymile 37973096 kompatibel
- KTI Networks # kompatibel
- LANCOM # kompatibel
- Lenovo (ex. Blade Network) # kompatibel
- LevelOne # kompatibel
- Lynx # kompatibel
- MikroTik # kompatibel
- Motorola # kompatibel
- Moxa # kompatibel
- MRV # kompatibel
- Netgear # kompatibel
- Nokia (ex. Alcatel-Lucent) 1AB393080009 kompatibel
- Nokia (ex. Alcatel-Lucent) 3HE01389CA kompatibel
- Nokia Siemens Networks # kompatibel
- Nvidia (ex. Mellanox) # kompatibel
- Palo Alto Networks # kompatibel
- Quanta # kompatibel
- Radware # kompatibel
- Ribbon (ex. ECI) # kompatibel
- TP-LINK # kompatibel
- Transition Networks # kompatibel
- Ubiquiti Networks UF-SM-1G-S BU kompatibel
- Waystream (ex. Packetfront) # kompatibel
- Westermo 1100-0526 kompatibel
- Zyxel # kompatibel
