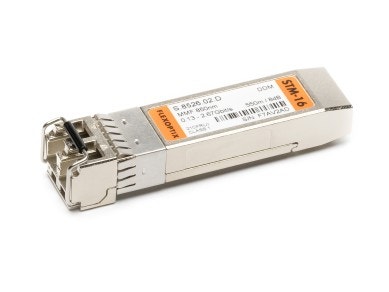

2.67G SFP STM-16 550 m, λ850 nm, DDM, LC-Duplex, Multimode
- 850 nm
- 550 m
- 2.67 G
- 100M ETH
- 1G ETH
- 1G FC
- 2G FC
- STM-1
- STM-16
- STM-4
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Multimode |
| Compliance Code | STM-16 |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 550 m |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 2.67 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 8 dB |
| Transmit min/max per lane | -10 dBm / 0 dBm |
| Receiver min/max per lane | -18 dBm / -3 dBm (overload) @2G |
| Wavelength TX (Typical) | 850 nm |
| Wavelength TX (Range) | 830 - 860 nm |
|---|---|
| Wavelength RX (Typical) | 850 nm |
| Wavelength RX (Range) | 760 - 860 nm |
| Laser | VCSEL |
| Receiver Type | PIN |
| Modulation | NRZ @2G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, 2G Fibre Channel, Fast Ethernet, Gigabit Ethernet, STM-1, STM-16, STM-4 |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Cisco Systems GLC-SX-MMD compatible
- Marconi SU67AA compatible
- Nexans 88646015 compatible
