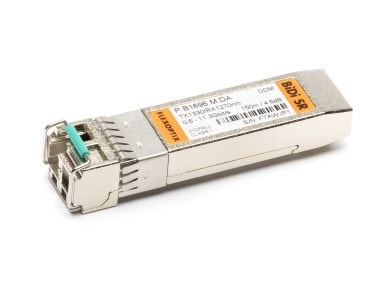

10G SFP+ BiDi SR 150 m, ᵀˣ1330 / ᴿˣ1270 nm, LC-Simplex, Multimode
- 1330 nm
- 150 m
- 11.3 G
- BiDi
- 10G ETH
- 10G FC
- 1G ETH
- 1G FC
- 2.5G ETH
- 2G FC
- 4G FC
- 8G FC
- CPRI
- OBSAI
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Multimode BiDi |
| Compliance Code | BiDi SR |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 150 m |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 600 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 4.6 dB |
| Transmit min/max per lane | -6.5 dBm / 0.5 dBm |
| Receiver min/max per lane | -11.1 dBm / 0.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1330 nm |
| Wavelength TX (Range) | 1320 - 1340 nm |
|---|---|
| Wavelength RX (Typical) | 1270 nm |
| Wavelength RX (Range) | 1260 - 1280 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Extinction Ratio | 6 dB |
| Supported Protocols | 10G Ethernet, 2.5G Ethernet, 10G FC, 1G Fibre Channel, 2G Fibre Channel, 4G Fibre Channel, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 24.33G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Aruba Networks(ex. HP Network) J9150A compatible
- Brocade / Ruckus 10G-SFPP-SR compatible
- Cisco Systems SFP-10G-LRM compatible
- Dell 407-BBOU compatible
- Edge Core ET5402-SR compatible
- Extreme 10301 compatible
- Intel E10GSFPLR compatible
- Juniper JNP-SFP-10G-BX10D compatible
- MikroTik S+2332LC10D compatible
- Nextivity SFP-10G-SRBD-D compatible
- Ubiquiti Networks UF-SM-10G-S BD compatible
