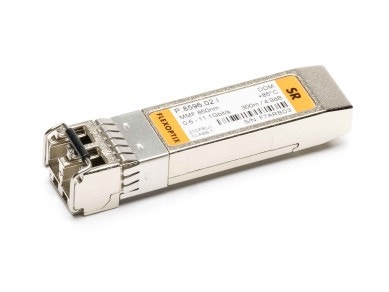

10G SFP+ SR Industrial 300 m, λ850 nm, LC-Duplex, Multimode
- 850 nm
- 300 m
- 10.31 G
- Industrial
- 10G ETH
- 10G FC
- 1G ETH
- 8G FC
- CPRI
- OBSAI
-
Alternatives
-
Matching Products
Just go to cart and click CREATE QUOTE.
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Multimode |
| Compliance Code | SR |
| Operating Temperature | Industrial |
| Modulation | NRZ |
| Distance | 300 m |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 600 Mbit/s - 10.31 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 4.9 dB |
| Transmit min/max per lane | -5 dBm / -1 dBm |
| Receiver min/max per lane | -9.9 dBm / -1 dBm (overload) @10G |
| Wavelength TX (Typical) | 850 nm |
| Wavelength TX (Range) | 840 - 860 nm |
|---|---|
| Wavelength RX (Typical) | 850 nm |
| Wavelength RX (Range) | 840 - 860 nm |
| Laser | VCSEL |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Transmit and Dispersion Penalty | 3.9 dB |
| Extinction Ratio | 3 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks AXSK-SFP+ SR compatible
- Accedian Networks 7SM-500 compatible
- ADTRAN 1442401G1 compatible
- ADVA # 12469 compatible
- Alcatel-Lucent Ent. SFP-10G-GIG-SR compatible
- Alcatel-Lucent Ent. SFP-10G-SR compatible
- Allied Telesis AT-SP10SR compatible
- Arista 3rd_Party SFP-10G-SR compatible
- Arista SFP-10G-SR compatible
- Arris 801147 compatible
- Avaya (ex. Nortel) AA1403015-E6 compatible
- Blackbox LSP431 compatible
- Brocade / Ruckus 10G-SFPP-SR compatible
- Brocade 10G-SFP-SR compatible
- Brocade XBR-000163 compatible
- Calix 100-01514 compatible
- Cambium Networks SFP-10G-SR compatible
- Check Point CPAC-TR-10SR compatible
- Chelsio SM10G-SR compatible
- Ciena 160-9111-900 compatible
- Ciena XCVR-S00Z85 compatible
- Cisco (ex. Meraki) MA-SFP-10GB-SR compatible
- Cisco Systems SFP-10G-SR compatible
- Cisco Systems SFP-10G-SR-X compatible
- Citrix Netscaler EW3F0000710 compatible
- CTC Union SFP-M9000-85-DE compatible
- D-LINK DEM-431XT-DD compatible
- Dell (ex. Force10) GP-10GSFP-1S compatible
- Dell 407-BBEF compatible
- Dell 407-BCBH compatible
- Dell 407-BCBN compatible
- DrayTek SFP+ SR compatible
- Extreme (ex. Enterasys) 10GB-SR-SFPP compatible
- Extreme 10301 compatible
- F5 Networks OPT-0016 compatible
- Fluke Networks OPVXG-SFP-PLUS-SR compatible
- Fortinet FG-TRAN-SFP+SR compatible
- Fujitsu S26361-F3986-E3 compatible
- Fujitsu S26361-F3986-L3 compatible
- Hirschmann M-SFP-10-SR/LC EEC compatible
- HP H3C JD092B compatible
- Huawei OMXD30000 compatible
- Infinera (ex. Transmode) TRX100103 compatible
- Intel E10GSFPSRX compatible
- Juniper SFP-10GE-SR compatible
- Juniper SRX-SFPP-10G-SR-ET compatible
- Keymile # 12492 compatible
- KTI Networks SFP-10G-SR-A compatible
- LANCOM SFP-SX-LC10 compatible
- Lenovo (ex. Blade Network) BN-CKM-SP-SR compatible
- LevelOne SFP-6101 compatible
- Luminex LU9001116 compatible
- Luminex LU9001117 compatible
- MikroTik S+85DLC03D compatible
- Moxa SFP-10GSRLC-T compatible
- MRV SFP-10GD-SX compatible
- Net Insight NPA0077-SRD1 compatible
- NetApp X6599A-R6 compatible
- Netgear AXM761 compatible
- Nokia (ex. Alcatel-Lucent) 3FE63264AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE04824AA compatible
- Nokia Networks 1AB390930004 compatible
- Nokia Networks 1AB474800008 compatible
- Nokia Networks P206937 compatible
- Nokia Siemens Networks V50017-U620-K500 compatible
- Novastar SFP-10G-SR compatible
- Nvidia (ex. Mellanox) MFM1T02A-SR compatible
- Packetlight SL111 compatible
- Packetlight SL113 compatible
- Palo Alto Networks PAN-SFP-PLUS-SR compatible
- Planet MTB-TSR compatible
- QNAP SFP+ SR compatible
- RAD SFP-P-4DH compatible
- Radware 9062206 compatible
- Sophos ITFZTCHXF compatible
- Supermicro AOC-E10GSFPSR compatible
- Synology SFP+ SR compatible
- TP-LINK TL-SM5110-SR compatible
- Ubiquiti Networks UF-MM-10G compatible
