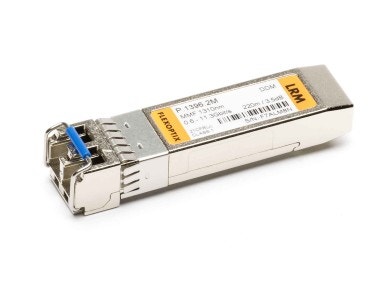

10G SFP+ LRM 220 m, λ1310 nm, LC-Duplex, Multimode
- 1310 nm
- 220 m
- 11.3 G
- 10G ETH
- 10G FC
- 1G ETH
- 8G FC
- CPRI
- OBSAI
-
~May 23, 2025+10 pcs
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Multimode |
| Compliance Code | LRM |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 220 m |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 600 Mbit/s - 11.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
|---|---|
| Power Consumption | 1 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 3.5 dB |
| Transmit min/max per lane | -6.5 dBm / 0.5 dBm |
| Receiver min/max per lane | -10 dBm / 1.5 dBm (overload) @10G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1355 nm |
|---|---|
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1260 - 1555 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @10G |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 10G Ethernet, 10G FC, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI |
Transceiver Configuration with FLEXBOX
It's that easy to use- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- A10networks # 12243 compatible
- ADTRAN 1442401G1 compatible
- ADVA # 12244 compatible
- Aerohive Networks AH-ACC-SFP- 10G-LRM compatible
- Alcatel-Lucent Ent. SFP-10G-LRM compatible
- Allied Telesis AT-SP10LRM compatible
- Arista 3rd_Party SFP-10G-SR compatible
- Arista SFP-10G-SR compatible
- Aruba Networks JW090A compatible
- Aruba Networks(ex. HP Network) R9D18A compatible
- Avaya (ex. Nortel) AA1403017-E6 compatible
- Brocade / Ruckus 10G-SFPP-LRM compatible
- Brocade 10G-SFPP-LRM compatible
- Brocade Brocade - XBR-000163 compatible
- Check Point # 12248 compatible
- Chelsio # 12249 compatible
- Ciena (ex. Nortel) # 12250 compatible
- Cisco (ex. Meraki) MA-SFP-10GB-LRM compatible
- Cisco Systems SFP-10G-LRM compatible
- Citrix Netscaler EW3F0000711 compatible
- ComNet SFP-10G-LRM compatible
- D-LINK DEM-435XT compatible
- D-LINK DEM-435XT-DD compatible
- Dell (ex. Force10) GP-10GSFP-1L compatible
- Dell 407-10459 compatible
- Dell 407-11196 compatible
- Dell 407-BBED compatible
- Dell 407-BBON compatible
- Dell 430-4135 compatible
- Delock 86171 compatible
- Edge Core ET5402-SR compatible
- Extreme (ex. Enterasys) 10GB-LRM-SFPP compatible
- Extreme 10302 compatible
- Extreme 10303 compatible
- F5 Networks # 12252 compatible
- FibroLAN SFPP-13-10 compatible
- Fluke Networks OPVXG-SFP-PLUS-LRM compatible
- Fortinet # 12254 compatible
- Fortinet FS-TRAN-SFP+LRM compatible
- Fujitsu S26361-F3986-E4 compatible
- HP H3C JD093B compatible
- Huawei OSXD22N00 compatible
- Infinera (ex. Transmode) # 12268 compatible
- Intel E10GSFPSR compatible
- Juniper EX-SFP-10GE-LRM compatible
- Juniper SFP-10GE-LRM compatible
- Juniper SFPP-10GE-LRM compatible
- Keymile # 12257 compatible
- Keysight (ex. Ixia) LRM1310-PLUS compatible
- KTI Networks # 12258 compatible
- LANCOM SFP-SX-LC10 compatible
- Lenovo (ex. Blade Network) # 12256 compatible
- LevelOne SFP-6121 compatible
- MikroTik S+31DLC10D compatible
- Motorola # compatible
- Moxa # 12262 compatible
- MRV SFP-10GD-LRM compatible
- Netgear AXM763 compatible
- Nokia (ex. Alcatel-Lucent) 3HE04823AA compatible
- Nokia Siemens Networks # 12265 compatible
- Nvidia (ex. Mellanox) MFM1T02A-SR compatible
- Oracle # compatible
- Packetlight SL113 compatible
- Palo Alto Networks PAN-SFP-PLUS-LR compatible
- Perle PSFP-10GD-M2LC02 compatible
- ProfiTap SFP+ LRM compatible
- Radware # 12267 compatible
- Ribbon (ex. ECI) # compatible
- Solarflare SFM10G-LRM compatible
- Supermicro AOC-E10GSFPLRM compatible
- TP-LINK # compatible
- Transition Networks # compatible
- Ubiquiti Networks UF-MM-10G compatible
- ZTE 180000278955 compatible
- Zyxel # compatible
