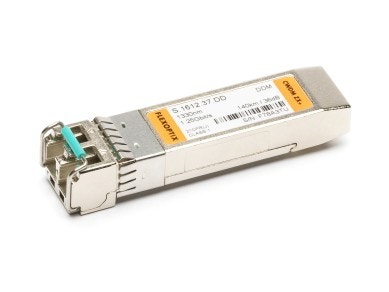

1G SFP CWDM ZX+ ~140 km / 36 dB, 1270 nm - 1610 nm, DDM, LC-Duplex

Universal SFP Transceiver - CWDM
Use FLEXBOX to configure to almost any vendor
CWDM for multiple applications over one duplex fiber
For 1000BASE-ZX+ Ethernet links
Supported Data Rates: 1.05 Gbit/s - 1.25 Gbit/s
Powerbudget of 36 dB for up to 140 km using an OS2 ITU-T G.652 fiber
Digital Diagnostic Monitoring (DDM)
Specs
  • pl_lambda CWDM
  • pl_distance ~140 km / 36 dB
  • pl_datarate 1.25 G
Protocols
  • 1G ETH
  • 1G FC
information-circle
Selection "S2":
Country of Origin
Germany,
Belgium,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
S.1612.37.xD

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
information-circle You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.
pdp_spec

Specification

Form Factor SFP
Connector / Polish LC-Duplex PC
Interface CWDM
Compliance Code CWDM ZX+
Operating Temperature Standard
Distance 140 km
Temperature Range 0°C - 70°C
Bandwidth 1.05 Gbit/s - 1.25 Gbit/s
Digital Diagnostic Monitoring (DDM) Yes, internally calibrated
Power Consumption 1 W
CDR none
Inbuilt FEC No
Powerbudget (dB) 36 dB
Transmit min/max per lane 2 dBm / 5 dBm
Receiver min/max per lane -34 dBm / -10 dBm (overload) @1G
Wavelength TX (Typical) Channel R - 1610 nm
Wavelength RX (Range) 1260 - 1600 nm
Laser DFB
Receiver Type APD
Modulation NRZ @1G
Transmit and Dispersion Penalty 1 dB
Extinction Ratio 8.2 dB
Supported Protocols 1G Fibre Channel, Gigabit Ethernet
FLEXBOX

Transceiver Configuration with FLEXBOX

It's that easy to use
insert
Insert into the FLEXBOX
select
Select and Configure
use
Use with Device
pdp_comp

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • Accedian Networks 7SX-006 compatible
  • ADTRAN 1442351G8 compatible
  • Alcatel-Lucent Ent. CWDM-SFP-1610 compatible
  • Allied Telesis AT-SPZX140 compatible
  • Aruba Networks(ex. HP Network) J4860C compatible
  • Avaya (ex. Nortel) AA1419068-E6 compatible
  • Brocade / Ruckus E1MG-CWDM80-1610 compatible
  • Ciena (ex. Nortel) NTK591TB compatible
  • Ciena XCVR-A80D61 compatible
  • Cisco Systems CWDM-SFP-1610 compatible
  • D-LINK DEM-314GT compatible
  • Dell (ex. Force10) GP-SFP2-1Z compatible
  • Dell 320-2879 compatible
  • Extreme 10053 compatible
  • FibroLAN SF1G-LX6C-61 compatible
  • Fortinet FG-TRAN-LX compatible
  • H3C (ex. 3COM) 3CSFP97 compatible
  • Hirschmann M-SFP-LH/LC compatible
  • Huawei S-SFP-GE-LH80-SM1550 compatible
  • Infinera (ex. Transmode) TRX100027/61 compatible
  • Juniper SFP-1GE-LH compatible
  • Motorola 525893-001-00 compatible
  • MRV SFP-GDCWEZX61 compatible
  • Netgear AGM733 compatible
  • Nokia (ex. Alcatel-Lucent) 1AB196350033 compatible
  • Nokia (ex. Alcatel-Lucent) 3FE25771DH compatible
  • Nokia (ex. Alcatel-Lucent) 3HE00070BH compatible
  • Nokia Siemens Networks V50017-U3161-K500 compatible
  • Nortel / Juniper / NSN SFP-CWDM-37dB-1610 compatible
  • OpenGear 569026 compatible
  • Packetlight UL-CWDM-1G-HP-CH1610 compatible
  • RAD SFP-7D compatible
  • Transition Networks TN-SFP-LX8-C61 compatible
  • Waystream (ex. Packetfront) SFP-1000CWDM-61 compatible
  • Zyxel SFP-LHX1310-40 compatible
