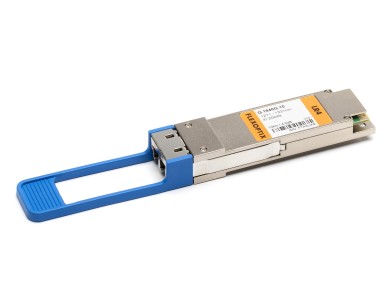

40G QSFP+ LR4 10 km, λ1271-1331 nm, LC-Duplex, Singlemode
QSFP+
LR4
Universal QSFP+ Transceiver
Use FLEXBOX to configure to almost any vendor
For 40GBASE-LR4 Ethernet links
Supported Data Rates: 41.2 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Specs
- int. Mux
- 10 km
- 41.2 G
- LC
Protocols
- 10G ETH
- 40G ETH
-
Alternatives
-
Matching Products
-
Alternatives
-
Matching Products
Specification
| Form Factor | QSFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | LR4 |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 10 km |
| Temperature Range | 0°C - 70°C |
| Lane Count | 4x (Tx/Rx) |
| Bandwidth | 41.2 Gbit/s |
|---|---|
| Bandwidth Per Lane | 10.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 3.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 4.5 dB |
| Transmit min/max per lane | -7 dBm / 2.3 dBm |
| Receiver min/max per lane | -11.5 dBm / 2.3 dBm (overload) @40G |
|---|---|
| Wavelength TX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Wavelength RX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @40G |
| Transmit and Dispersion Penalty | 2.6 dB |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 40G Ethernet, 10G Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
1. Insert Into FLEXBOX
- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
2. Select And Configure
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
3. Use With Device
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ADTRAN 1445500F2C compatible
- Alcatel-Lucent Ent. QSFP-40G-LR compatible
- Allied Telesis AT-QSFPLR4 compatible
- Arista 3rd_Party QSFP-40G-LR4 compatible
- Arista QSFP-40G-LR4 compatible
- Aruba Networks JH232A compatible
- Avaya (ex. Nortel) AA1404001-E6 compatible
- Axon QSFP+ LR4 compatible
- Bittware QSFP+ LR4 compatible
- Brocade 40G-QSFP-LR4 compatible
- Check Point CPAC-TR-40LR-QSFP-10KM compatible
- Chelsio SM40G-LR compatible
- Ciena 160-9501-900 compatible
- Cisco (ex. Meraki) MA-QSFP-40G-LR4 compatible
- Cisco Systems QSFP-40G-LR4 compatible
- Cisco Systems QSFP-40G-LR4-S compatible
- Cumulus Networks QSFP+ LR4 compatible
- Dell (ex. Force10) GP-QSFP-40GE-1LR compatible
- Dell 407-BBGL compatible
- Dell 407-BBGN compatible
- Edge Core QSFP+ LR4 compatible
- Extreme (ex. Enterasys) 40GB-LR4-QSFP compatible
- Extreme 10320 compatible
- F5 Networks OPT-0030 compatible
- Fluke Networks VX_00017 compatible
- Fortinet FG-TRAN-QSFP+LR compatible
- Gigamon QSF-503 compatible
- Grassvalley QSFP+ LR4 compatible
- HP H3C JG661A compatible
- Huawei QSFP-40G-LR4 compatible
- Juniper JNP-QSFP-40G-LR4 compatible
- Juniper QSFPP-40GBASE-LR4 compatible
- Juniper SRX-QSFP-40G-LR4 compatible
- Keymile QSFP+ LR4 compatible
- Keysight (ex. Ixia) QLR4-PLUS compatible
- LANCOM SFP-LR-LC40 compatible
- Lenovo (ex. Blade Network) 00D6222 compatible
- MikroTik Q+85MP01D compatible
- MRV QSFP-40G-LR compatible
- napatech 802-0082-01-10 compatible
- Netgear AXLM762 compatible
- NetOptics QSFP+KT-LR compatible
- Netscout 321-1659 compatible
- Nokia (ex. Alcatel-Lucent) 3FE46362AA compatible
- Nokia (ex. Alcatel-Lucent) 3HE06485AA compatible
- Nvidia (ex. Mellanox) MC2210511-LR4 compatible
- Packetlight QSFP+-LR-1102 compatible
- Palo Alto Networks PAN-QSFP-40GBASE-LR4 compatible
- Planet QSFP-40G-LR4 compatible
- Pure Storage FA-40Gb-Eth-SFP-LR compatible
- Quanta QSFP+ LR4 compatible
- RAD QSFPP-1D compatible
- Radware 9062216 compatible
- Raisecom UQSP-40G/S1/SW compatible
- Ribbon (ex. ECI) OTP40_LR4 compatible
- Solarflare QSFP+ LR4 compatible
- SonicWALL QSFP+ LR4 compatible
- Sophos QSFP-40G-SR4 compatible
- Spirent ACC-6077A compatible
- Stormshield NA-TRANS-QSFP40-LR compatible
- Telco Systems BTI-40GLR-DD-QSFP compatible
- Trend Micro (ex. TippingPoint) TPNN0327 compatible
