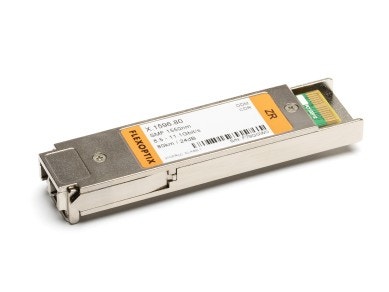

10G XFP ZR with dual CDR 80 km, λ1550 nm, LC-Duplex, Singlemode

Universal XFP Transceiver
Use FLEXBOX to configure to almost any vendor
For 10GBASE-ZR Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 8.5 Gbit/s - 11.1 Gbit/s
Up to 80 km via Singlemode OS2
LC-Duplex Connector
Specs
  • 1550 nm
  • 80 km
  • 11.1 G
Protocols
  • 10G ETH
  • 10G FC
  • 8G FC
  • OTU2
  • STM-64
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
X.1596.80:Sx

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor XFP
Connector / Polish LC-Duplex PC
Interface Singlemode
Compliance Code ZR
Distance 80 km
Temperature Range 0°C - 70°C
Bandwidth 8.5 Gbit/s - 11.1 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 3.5 W
CDR TX and RX
SGMII No
Inbuilt FEC No
Powerbudget (dB) 24 dB
Transmit min/max per lane 0 dBm / 4 dBm
Receiver min/max per lane -24 dBm / -7 dBm (overload) @10G
Wavelength TX (Typical) 1550 nm
Wavelength TX (Range) 1530 - 1565 nm
Wavelength RX (Typical) 1550 nm
Wavelength RX (Range) 1270 - 1600 nm
Laser EML
Receiver Type APD
Modulation NRZ @10G
Extinction Ratio 9 dB
Supported Protocols 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • MSA Standard (8G) compatible
  • ADTRAN 1442940G1C compatible
  • ADVA 0061701812 compatible
  • Allied Telesis AT-XPER80 compatible
  • Arris 780244 compatible
  • Avaya (ex. Nortel) AA1403006-E5 compatible
  • Brocade / Ruckus 10G-XFP-ZR compatible
  • Calix 100-01507 compatible
  • Ciena (ex. Nortel) NTTP81KA compatible
  • Ciena XCVR-080V55 compatible
  • Cisco Systems ONS-XC-10G-L2 compatible
  • Cisco Systems XFP-10GZR-OC192LR compatible
  • Coriant (ex. Tellabs) 81.73T-X004-15S-R6 compatible
  • Coriant (ex. Tellabs) 81.XO192IR2151S compatible
  • Cyan 280-0016-00 compatible
  • Dell (ex. Force10) GP-XFP-1Z compatible
  • Edge Core ET5302-ZR compatible
  • Extreme (ex. Enterasys) 10GBASE-ZR-XFP compatible
  • Extreme 10125 compatible
  • Fortinet FG-TRAN-XFPLR compatible
  • Fujitsu FIM31053/120 compatible
  • H3C (ex. 3COM) # 13368 compatible
  • Hirschmann # 13371 compatible
  • Hitachi # 13372 compatible
  • HP H3C JD107A compatible
  • Huawei XFP-STM64-SM1550-80km compatible
  • Infinera (ex. Transmode) TRX100051 compatible
  • Infinera TOM-10G-LR2 compatible
  • Juniper (ex BTI Systems) BP3AM4LI compatible
  • Juniper EX-XFP-10GE-ZR compatible
  • Juniper XFP-10G-Z-OC192-LR2 compatible
  • Keysight (ex. Ixia) XSM1310 compatible
  • LevelOne # 13373 compatible
  • Marconi SU69BD compatible
  • Marconi SU69CD compatible
  • MikroTik # 13374 compatible
  • Moxa # 13375 compatible
  • MRV XFP-10GD-LR2 compatible
  • Net Insight NPA0038-LR21 compatible
  • NetOptics XFPKT-ER compatible
  • Nokia (ex. Alcatel-Lucent) 1AB217280002 compatible
  • Nokia (ex. Alcatel-Lucent) 1AB217280003 compatible
  • Nokia (ex. Alcatel-Lucent) 1AB375380004 compatible
  • Nokia (ex. Alcatel-Lucent) 3FE50712DA compatible
  • Nokia (ex. Alcatel-Lucent) 3HE01545AA compatible
  • Nokia (ex. Alcatel-Lucent) 3HE05833CA compatible
  • Nokia Siemens Networks V50017-U773-K500 compatible
  • Nortel / Juniper / NSN XFP-ZR compatible
  • OTN Systems V30813-S27-A1 compatible
  • OTN Systems V30913-S28-A2 compatible
  • Packetlight SL104 compatible
  • Palo Alto Networks PAN-XFP-ZR compatible
  • RAD XFP-2D compatible
  • Radware # 13378 compatible
  • Raisecom UXFP-192/S3 compatible
  • Redback XFP-10GE-ZR compatible
  • Ribbon (ex. ECI) OTR103_ZR compatible
  • Ribbon (ex. ECI) OTR64_AL5 compatible
  • Transition Networks TN-XFP-ZR compatible
