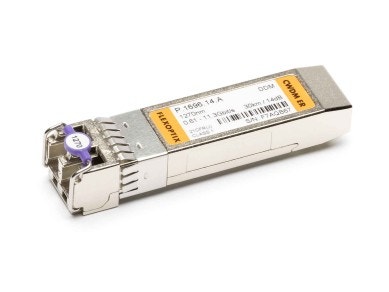

10G SFP+ CWDM ER ~30 km / 14 dB, 1270 nm - 1610 nm, LC-Duplex

Universal SFP+ Transceiver - CWDM
Use FLEXBOX to configure to almost any vendor
CWDM for multiple applications over one duplex fiber
For 10GBASE-ER Ethernet links
Supported Data Rates: 614 Mbit/s - 11.3 Gbit/s
Powerbudget of 14 dB for up to 30 km using an OS2 ITU-T G.652 fiber
Specs
  • CWDM
  • ~30 km / 14 dB
  • 11.3 G
Protocols
  • 10G ETH
  • 1G ETH
  • 1G FC
  • 2G FC
  • 4G FC
  • 8G FC
  • CPRI
  • OBSAI
  • OTU2
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
P.1696.14.x

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor SFP+
Connector / Polish LC-Duplex PC
Interface CWDM
Compliance Code CWDM ER
Operating Temperature Standard
Modulation NRZ
Distance 40 km
Temperature Range 0°C - 70°C
Bandwidth 614 Mbit/s - 11.3 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 1.5 W
CDR none
Inbuilt FEC No
Powerbudget (dB) 14.8 dB
Transmit min/max per lane -1 dBm / 3 dBm
Receiver min/max per lane -15.8 dBm / -1 dBm (overload) @10G
Wavelength TX (Typical) Channel R - 1610 nm
Wavelength RX (Range) 1260 - 1620 nm
Laser EML
Receiver Type PIN
Modulation NRZ @10G
Transmit and Dispersion Penalty 2 dB
Chromatic Dispersion Tolerance 0 ps/nm to 720 ps/nm @10G
Extinction Ratio 8.2 dB
Supported Protocols 10G Ethernet, 10G FC, 1G Fibre Channel, 2G Fibre Channel, 4G Fibre Channel, 8G Fibre Channel, Gigabit Ethernet, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • MSA Standard (8G) compatible
  • A10networks AXSK-10GF-LR compatible
  • Accedian Networks 7SX-406 compatible
  • ADTRAN 1442471F8 compatible
  • ADVA 1061702198-01 compatible
  • Alcatel-Lucent Ent. SFP-10G-ER compatible
  • Allied Telesis AT-SP10ER40/I compatible
  • Arista 3rd_Party SFP-10G-ER compatible
  • Arista SFP-10G-ER compatible
  • Aruba Networks(ex. HP Network) J9153A compatible
  • Avaya (ex. Nortel) AA1403160-E6 compatible
  • Brocade / Ruckus 10G-SFPP-ER compatible
  • Brocade 10G-SFPP-ER compatible
  • Brocade XBR-000174 compatible
  • Brocade XBR-000217 compatible
  • Calix 100-03934 compatible
  • Check Point CPAC-TR-10LR-C compatible
  • Check Point CPAC-TR-10LR-SSM160-SFP+ compatible
  • Chelsio SM10G-LR compatible
  • Ciena 160-9218-900 compatible
  • Ciena XCVR-C70D61 compatible
  • Cisco Systems CWDM-SFP10G-1610 compatible
  • Cisco Systems DS-CWDM8G1610 compatible
  • Cisco Systems DS-SFP-FC8G-ER compatible
  • Cisco Systems DS-SFP-FC8G-LW compatible
  • D-LINK DEM-433XT compatible
  • Dell (ex. Force10) GP-10GSFP-1E compatible
  • Dell 407-BBOV compatible
  • Dell 430-4585 compatible
  • Edge Core ET5402-ER-I compatible
  • Extreme (ex. Enterasys) 10GB-ER-SFPP compatible
  • Extreme 10309 compatible
  • F5 Networks OPT-0017 compatible
  • FibroLAN SFPP-C30-61-CWDM compatible
  • Fluke Networks OPVXG-SFP-PLUS-LR compatible
  • Fortinet FG-TRAN-SFP+LR compatible
  • Fujitsu S26361-F3986-E4 compatible
  • H3C (ex. 3COM) 0231A0A8 compatible
  • Hitachi 10G-SFPP-LR.P compatible
  • HP H3C JG234A compatible
  • HP Storage (B-Series) AW538A compatible
  • Huawei OSX040N01 compatible
  • IBM Storage 45W1216 compatible
  • Infinera (ex. Transmode) TRX100106/08 compatible
  • Intel E10GSFPER compatible
  • Intel E10GSFPLR compatible
  • Juniper QFX-SFP-10GE-ER compatible
  • Juniper SFP-10GE-ER compatible
  • Juniper SFPP-10GE-ER-IT compatible
  • Keymile 37973312 compatible
  • KTI Networks SFP-10G-ER-A compatible
  • LANCOM SFP-LX-LC10 compatible
  • Lenovo (ex. Blade Network) BN-CKM-SP-ER compatible
  • Lenovo (ex. IBM) 90Y9415 compatible
  • LevelOne SFP-6141 compatible
  • MikroTik S+31DLC10D compatible
  • Moxa SFP-10GERLC compatible
  • MRV SFP-10GCWER-61 compatible
  • Net Insight NPA0105-161D compatible
  • NetApp X6569-R6 compatible
  • Netgear AXM762 compatible
  • Nevion SFP-TR10-C1610-ER compatible
  • Nokia (ex. Alcatel-Lucent) 3FE65831AA compatible
  • Nokia (ex. Alcatel-Lucent) 3HE07161CH compatible
  • Nokia Networks 475339A.101 compatible
  • Nokia Networks FOSP 472949A.101 compatible
  • Nokia Siemens Networks V50017-U624-K500 compatible
  • Nortel / Juniper / NSN SFP+-CWDM-14dB-1610 compatible
  • Nvidia (ex. Mellanox) MFM1T02A-LR compatible
  • Palo Alto Networks PAN-SFP-PLUS-LR compatible
  • QLogic SFP8-LW-1PK compatible
  • Radware 9062196 compatible
  • Ribbon (ex. ECI) OTP10C_PS61 compatible
  • Solarflare SFM10G-SR compatible
  • Sophos ITFZTCHLR compatible
  • Supermicro AOC-E10GSFPLR compatible
  • Telco Systems BTI-CW-ER-61-SFP+ compatible
  • Ubiquiti Networks UF-SM-10G compatible
  • WatchGuard WG8583-LR compatible
  • Waystream (ex. Packetfront) SFP-10GE-LR compatible
  • Zyxel SFP10G-ER compatible
Your vendor / compatibility is missing?
