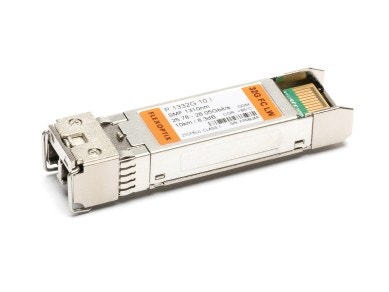

32G Fibre Channel SFP28 Industrial with dual CDR 10 km, λ1310 nm, LC-Duplex, Singlemode

Universal Fibre Channel SFP28 Transceiver
Use FLEXBOX to configure to almost any vendor
Fibre Channel (FC) support for storage area network (SAN) interconnect
Integrated Clock-Data-Recovery (CDR)
Does not work in Brocade Gen7 (Secure SFPs)
Supported Data Rates: 25.78 Gbit/s - 28.05 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Operating Temperature from -40°C to 85°C
Specs
  • 1310 nm
  • 10 km
  • 28.05 G
  • Industrial
Protocols
  • 25G ETH
  • 32G FC
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
P.1332G.10.I:Sx

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor SFP28
Connector / Polish LC-Duplex PC
Interface Singlemode
Compliance Code 32G FC LW
Operating Temperature Industrial
Modulation NRZ
Distance 10 km
Temperature Range -40°C - 85°C
Bandwidth 25.78 Gbit/s - 28.05 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 1.5 W
CDR TX and RX
SGMII No
Inbuilt FEC No
Powerbudget (dB) 8.3 dB
Transmit min/max per lane -5 dBm / 2 dBm
Receiver min/max per lane -13.3 dBm / 2 dBm (overload) @32G
Wavelength TX (Typical) 1310 nm
Wavelength TX (Range) 1295 - 1325 nm
Wavelength RX (Typical) 1310 nm
Wavelength RX (Range) 1260 - 1370 nm
Laser DFB
Receiver Type PIN
Modulation NRZ @32G
Transmit and Dispersion Penalty 2.7 dB
Extinction Ratio 3.5 dB
Supported Protocols 25G Ethernet, 32G Fibre Channel

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • Brocade XBR-000238 compatible
  • Ciena 160-9701-900 compatible
  • Cisco Systems DS-SFP-FC32G-LW compatible
  • Pure Storage FA-XR2-32G-FC-SFP-LR compatible
