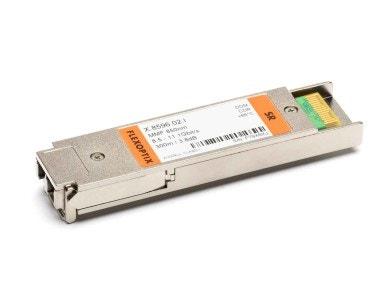

10G XFP SR Industrial with dual CDR 300 m, λ850 nm, LC-Duplex, Multimode

Universal XFP Transceiver
Use FLEXBOX to configure to almost any vendor
For 10GBASE-SR Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 8.5 Gbit/s - 11.1 Gbit/s
Up to 300 m via Multimode OM3
LC-Duplex Connector
Operating Temperature from -40°C to 85°C
Specs
  • 850 nm
  • 300 m
  • 11.1 G
  • Industrial
Protocols
  • 10G ETH
  • 10G FC
  • 8G FC
  • OTU2
  • STM-64
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Part number
X.8596.02.I:Sx

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

Specification

Form Factor XFP
Connector / Polish LC-Duplex PC
Interface Multimode
Compliance Code SR
Operating Temperature Industrial
Modulation NRZ
Distance 300 m
Temperature Range -40°C - 85°C
Bandwidth 8.5 Gbit/s - 11.1 Gbit/s
Digital Diagnostic Management (DDM) Yes, internally calibrated
Power Consumption 3.5 W
CDR TX and RX
SGMII No
Inbuilt FEC No
Powerbudget (dB) 3.8 dB
Transmit min/max per lane -7.3 dBm / -1 dBm
Receiver min/max per lane -11.1 dBm / 1 dBm (overload) @10G
Wavelength TX (Typical) 850 nm
Wavelength TX (Range) 840 - 860 nm
Wavelength RX (Typical) 850 nm
Wavelength RX (Range) 840 - 860 nm
Laser VCSEL
Receiver Type PIN
Modulation NRZ @10G
Extinction Ratio 3.5 dB
Supported Protocols 10G Ethernet, 10G FC, 8G Fibre Channel, OTU2, STM-64

Transceiver Configuration with FLEXBOX

It's that easy to use
Insert Transceiver into FLEXBOX
1. Insert Into FLEXBOX
Select and Configure
2. Select And Configure
  • Choose vendor and compatibility
  • Press play
  • Configuration only takes a few seconds
Use with Device
3. Use With Device
  • Use the transceiver in your device. That's it!
  • Need it for another device? - Re-configure it again and again

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • ADTRAN 1442901G1 compatible
  • ADVA 1061701845-01 compatible
  • Allied Telesis # 13412 compatible
  • Avaya (ex. Nortel) # 13413 compatible
  • Ciena XCVR-A00Z85 compatible
  • Cisco Systems # 13408 compatible
  • Cyan 280-0120-00 compatible
  • Dell (ex. Force10) # 13418 compatible
  • Extreme # 13417 compatible
  • Extreme (ex. Enterasys) # 13416 compatible
  • H3C (ex. 3COM) # 13409 compatible
  • Hirschmann M-XFP SR/LC compatible
  • Hitachi # 13420 compatible
  • HP H3C # 13421 compatible
  • Huawei # 13423 compatible
  • Infinera (ex. Transmode) # 13432 compatible
  • Juniper (ex BTI Systems) # 13414 compatible
  • Juniper SRX-XFP-10GE-SR-ET compatible
  • Juniper XFP-10G-S compatible
  • LevelOne # 13425 compatible
  • MikroTik # 13426 compatible
  • Moxa # 13427 compatible
  • MRV # 13428 compatible
  • Nokia (ex. Alcatel-Lucent) 1AB375380011 compatible
  • Nokia Siemens Networks # 13429 compatible
  • Packetlight SL102 compatible
  • Palo Alto Networks # 13430 compatible
  • RAD XFP-4DH compatible
  • Radware # 13431 compatible
  • Ribbon (ex. ECI) # 13415 compatible
