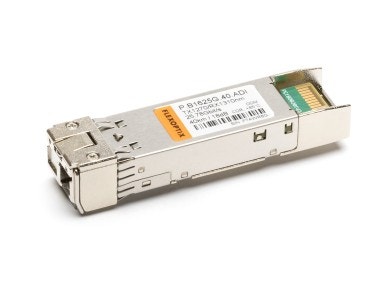

25G SFP28 BiDi ER Industrial with dual CDR 40 km, ᵀˣ1270 / ᴿˣ1310 nm, LC-Simplex, Singlemode
SFP28
BiDi ER
Universal SFP28 BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 25GBASE-ER Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 25.78 Gbit/s
Up to 40 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -40°C to 85°C
Specs
- 1270 nm
- 40 km
- 25.78 G
- Industrial
Protocols
- 25G ETH
Part number
P.B1625G.40.ADI
In stock
9 pcs
Your price
List price
Your price
You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.
Just go to cart and click CREATE QUOTE.
Specification
| Form Factor | SFP28 |
|---|---|
| Connector / Polish | LC-Simplex UPC |
| Interface | Singlemode BiDi |
| Type | BiDi ER |
| Distance | 40 km |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 25.78 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 1.5 W |
| CDR | TX and RX |
|---|---|
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 18 dB |
| Transmit min/max per lane | -1 dBm / 6 dBm |
| Receiver min/max per lane | -19 dBm / -4 dBm (overload) |
| Wavelength TX (Typical) | 1270 nm |
| Wavelength TX (Range) | 1260 - 1280 nm |
| Wavelength RX (Typical) | 1310 nm |
| Wavelength RX (Range) | 1300 - 1320 nm |
|---|---|
| Laser | DFB |
| Receiver Type | APD |
| Modulation | NRZ |
| Transmit and Dispersion Penalty | 2.7 dB |
| Extinction Ratio | 4 dB |
| Supported Protocols | 25G Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
1. Insert Into FLEXBOX
- Download and start our FLEXOPTIX App
- Connect your FLEXBOX via USB
- Insert a Universal Transceiver
2. Select And Configure
- Choose vendor and compatibility
- Press play
- Configuration only takes a few seconds
3. Use With Device
- Use the transceiver in your device. That's it!
- Need it for another device? - Re-configure it again and again
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Cisco Systems SFP-25G-LR-S compatible
- Dell 407-BBWK compatible
