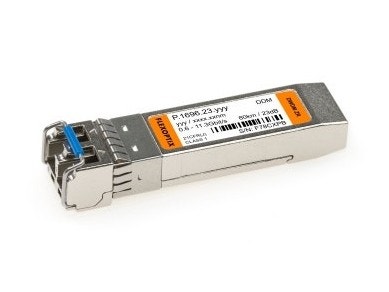

10G SFP+, 50 GHz Grid - C-Band DWDM ZR 80 km / 23 dB, LC-Duplex

Universal SFP+ Transceiver - 50 GHz Grid - C-Band
Use FLEXBOX to configure to almost any vendor
DWDM for multiple applications over one duplex fiber
For 10GBASE-ZR Ethernet links
Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
Powerbudget of 23 dB for up to 80 km using an OS2 ITU-T G.652 fiber
Specs
  • pl_lambda DWDM 50 GHz
  • pl_distance 80 km
  • pl_datarate 11.3 G
Protocols
  • 10G ETH
  • 10G FC
  • CPRI
  • OBSAI
information-circle
Selection "S2":
Country of Origin
Germany,
Thailand,
Taiwan,
Vietnam and
Malaysia
Request compatibility chevron-right
Part number
P.1696.23.yyy

Add Product to Quote

If you add products discounts in this quote won't be valid anymore!
x Cancel OK chevron-right
information-circle You can create a quote from your cart.
Just go to cart and click CREATE QUOTE.

  • Alternatives

    chevron-down

  • Matching Products

    chevron-down
pl_industrial Higher Temperature Range
10G SFP+, 50 GHz Grid - C-Band DWDM ZR Extended 80 km / 23 dB, LC-Duplex
10G SFP+, 50 GHz Grid - C-Band DWDM ZR Extended | 80 km / 23 dB, LC-Duplex
As low as 503.12 EUR
pl_distance Lower Power Budget
10G SFP+, 50 GHz Grid - C-Band DWDM ER 40 km / 14 dB, LC-Duplex
10G SFP+, 50 GHz Grid - C-Band DWDM ER | 40 km / 14 dB, LC-Duplex
As low as 381.15 EUR
10G SFP+ Tunable DWDM ZR 80 km, 95 Channels, 50GHz Grid, C-Band, LC-Duplex, Singlemode
10G SFP+ Tunable DWDM ZR | 80 km, 95 Channels, 50GHz Grid, C-Band, LC-Duplex, Singlemode
25 pcs in stock As low as 1,128.38 EUR
pdp_spec

Specification

Form Factor SFP+
Connector / Polish LC-Duplex PC
Interface DWDM
Compliance Code DWDM ZR
Operating Temperature Standard
Modulation NRZ
Distance 80 km
Temperature Range 0°C - 70°C
Bandwidth 600 Mbit/s - 11.3 Gbit/s
Digital Diagnostic Monitoring (DDM) Yes, internally calibrated
Power Consumption 1.5 W
CDR none
Inbuilt FEC No
Powerbudget (dB) 23 dB
Transmit min/max per lane 0 dBm / 5 dBm
Receiver min/max per lane -23 dBm / -8 dBm (overload) @10G
Wavelength TX (Typical) Channel 595 - 1529.94 nm
Wavelength RX (Range) 1260 - 1620 nm
Laser EML
Receiver Type APD
Modulation NRZ @10G
Transmit and Dispersion Penalty 3.5 dB
Chromatic Dispersion Tolerance -500 ps/nm to 1,600 ps/nm @10G
Extinction Ratio 3.5 dB
Supported Protocols 10G Ethernet, 10G FC, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI
FLEXBOX

Transceiver Configuration with FLEXBOX

It's that easy to use
insert
Insert into the FLEXBOX
select
Select and Configure
use
Use with Device
How to get your free FLEXBOX? chevron-right
pdp_comp

Compatibility

All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.

  • MSA Standard compatible
  • ADVA 1061702002-01 compatible
  • Juniper SFP-10GE-ZR compatible
  • Supermicro AOC-E10GSFPLR compatible
Your vendor / compatibility is missing?
