Universal Transceiver - One Transceiver for Various Switch Vendors
Tired of searching the right transceiver for your system?
You can use our Universal Transceiver in devices from about 200 vendors.
Use our
to configure them on your own or just order them pre-configured.
For DWDM, we also provide tunable DWDM transceiver. Additionally to the vendor compatibility, you can also tune the channel/wavelength within seconds.
Our DWDM transceiver |
Our CWDM transceiver |

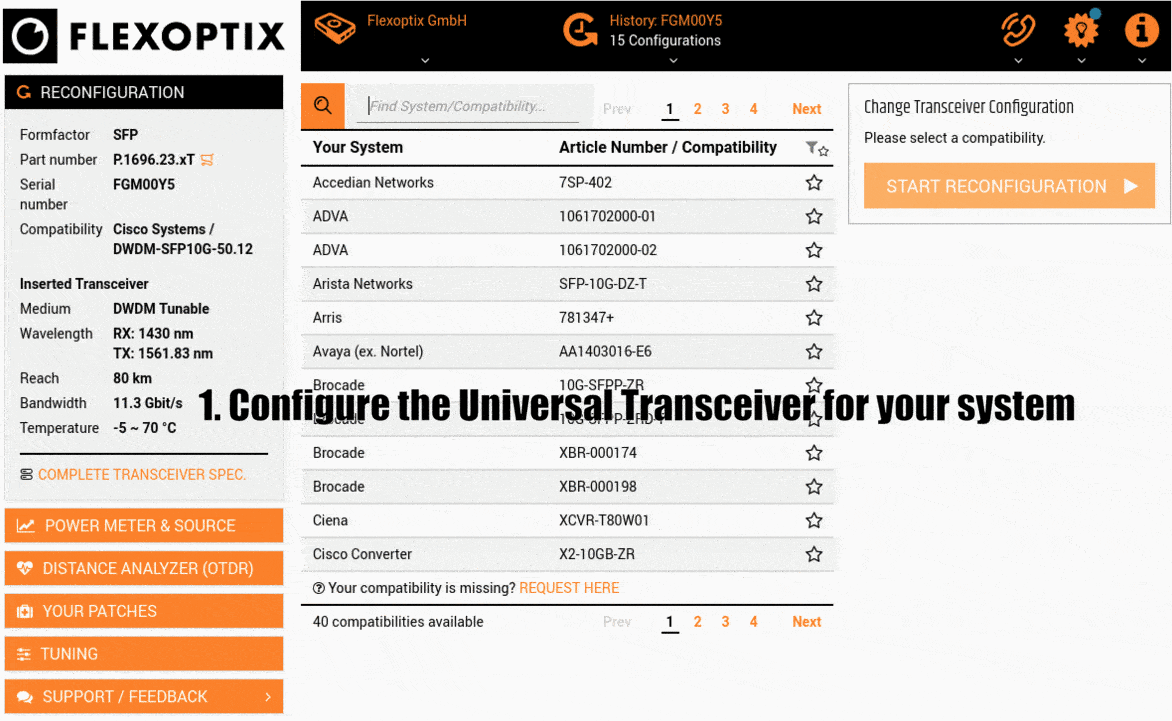

How to configure Universal Transceivers
DWDM Channel Grid
DWDM ITU Channel | Wavelength (in nm) | Frequency (in THz) |
Cisco DWDM Channel |
Cisco DWDM Channel (ONS series) |
ADVA DWDM Channel |
1604.03 | 186.90 | Cisco L-Band Channel 32 | |||
1603.17 | 187.00 | Cisco L-Band Channel 31 | ADVA Channel 18700 (#D64) | ||
1602.31 | 187.10 | Cisco L-Band Channel 30 | ADVA Channel 18710 (#D63) | ||
1601.46 | 187.20 | Cisco L-Band Channel 29 | ADVA Channel 18720 (#D62) | ||
1600.60 | 187.30 | Cisco L-Band Channel 28 | ADVA Channel 18730 (#D61) | ||
1599.75 | 187.40 | Cisco L-Band Channel 27 | ADVA Channel 18740 (#DL8) | ||
1598.89 | 187.50 | Cisco L-Band Channel 26 | ADVA Channel 18750 (#D60) | ||
1598.04 | 187.60 | Cisco L-Band Channel 25 | ADVA Channel 18760 (#D59) | ||
1597.19 | 187.70 | Cisco L-Band Channel 24 | ADVA Channel 18770 (#D58) | ||
1596.34 | 187.80 | Cisco L-Band Channel 23 | ADVA Channel 18780 (#D57) | ||
1595.49 | 187.90 | Cisco L-Band Channel 22 | ADVA Channel 18790 (#DL7) | ||
1594.64 | 188.00 | Cisco L-Band Channel 21 | ADVA Channel 18800 (#D56) | ||
1593.79 | 188.10 | Cisco L-Band Channel 20 | ADVA Channel 18810 (#D55) | ||
1592.95 | 188.20 | Cisco L-Band Channel 19 | ADVA Channel 18820 (#D54) | ||
1592.10 | 188.30 | Cisco L-Band Channel 18 | ADVA Channel 18830 (#D53) | ||
1591.26 | 188.40 | Cisco L-Band Channel 17 | ADVA Channel 18840 (#DL6) | ||
1590.41 | 188.50 | Cisco L-Band Channel 16 | ADVA Channel 18850 (#D52) | ||
1589.57 | 188.60 | Cisco L-Band Channel 15 | ADVA Channel 18860 (#D51) | ||
1588.73 | 188.70 | Cisco L-Band Channel 14 | ADVA Channel 18870 (#D50) | ||
1587.88 | 188.80 | Cisco L-Band Channel 13 | ADVA Channel 18880 (#D49) | ||
1587.04 | 188.90 | Cisco L-Band Channel 12 | ADVA Channel 18890 (#DL5) | ||
1586.20 | 189.00 | Cisco L-Band Channel 11 | ADVA Channel 18900 (#DL9) | ||
1585.36 | 189.10 | Cisco L-Band Channel 10 | ADVA Channel 18910 (#DL4) | ||
1584.53 | 189.20 | Cisco L-Band Channel 9 | ADVA Channel 18920 (#D48) | ||
1583.69 | 189.30 | Cisco L-Band Channel 8 | ADVA Channel 18930 (#D47) | ||
1582.85 | 189.40 | Cisco L-Band Channel 7 | ADVA Channel 18940 (#D46) | ||
1582.02 | 189.50 | Cisco L-Band Channel 6 | ADVA Channel 18950 (#D45) | ||
1581.18 | 189.60 | Cisco L-Band Channel 5 | ADVA Channel 18960 (#DL3) | ||
1580.35 | 189.70 | Cisco L-Band Channel 4 | ADVA Channel 18970 (#D44) | ||
1579.52 | 189.80 | Cisco L-Band Channel 3 | ADVA Channel 18980 (#D43) | ||
1578.69 | 189.90 | Cisco L-Band Channel 2 | ADVA Channel 18990 (#D42) | ||
1577.86 | 190.00 | Cisco L-Band Channel 1 | ADVA Channel 19000 (#D41) | ||
DWDM ITU Channel 1 | 1577.03 | 190.10 | ADVA Channel 19010 (#DL2) | ||
DWDM ITU Channel 1.5 | 1576.61 | 190.15 | |||
DWDM ITU Channel 2 | 1576.20 | 190.20 | ADVA Channel 19020 (#D40) | ||
DWDM ITU Channel 2.5 | 1575.78 | 190.25 | |||
DWDM ITU Channel 3 | 1575.37 | 190.30 | ADVA Channel 19030 (#D39) | ||
DWDM ITU Channel 3.5 | 1574.95 | 190.35 | |||
DWDM ITU Channel 4 | 1574.54 | 190.40 | ADVA Channel 19040 (#D38) | ||
DWDM ITU Channel 4.5 | 1574.13 | 190.45 | |||
DWDM ITU Channel 5 | 1573.71 | 190.50 | ADVA Channel 19050 (#D37) | ||
DWDM ITU Channel 5.5 | 1573.30 | 190.55 | |||
DWDM ITU Channel 6 | 1572.89 | 190.60 | ADVA Channel 19060 (#DL1) | ||
DWDM ITU Channel 6.5 | 1572.48 | 190.65 | |||
DWDM ITU Channel 7 | 1572.06 | 190.70 | ADVA Channel 19070 (#D36) | ||
DWDM ITU Channel 7.5 | 1571.65 | 190.75 | |||
DWDM ITU Channel 8 | 1571.24 | 190.80 | ADVA Channel 19080 (#D35) | ||
DWDM ITU Channel 8.5 | 1570.83 | 190.85 | |||
DWDM ITU Channel 9 | 1570.42 | 190.90 | ADVA Channel 19090 (#D34) | ||
DWDM ITU Channel 9.5 | 1570.01 | 190.95 | |||
DWDM ITU Channel 10 | 1569.59 | 191.00 | ADVA Channel 19100 (#D33) | ||
DWDM ITU Channel 10.5 | 1569.18 | 191.05 | |||
DWDM ITU Channel 11 | 1568.77 | 191.10 | |||
DWDM ITU Channel 11.5 | 1568.36 | 191.15 | |||
DWDM ITU Channel 12 | 1567.95 | 191.20 | |||
DWDM ITU Channel 12.5 | 1567.54 | 191.25 | ADVA Channel 19125 | ||
DWDM ITU Channel 13 | 1567.13 | 191.30 | ADVA Channel 19130 | ||
DWDM ITU Channel 13.5 | 1566.72 | 191.35 | Cisco Channel 1 | ADVA Channel 19135 | |
DWDM ITU Channel 14 | 1566.31 | 191.40 | Cisco Channel 2 | ADVA Channel 19140 | |
DWDM ITU Channel 14.5 | 1565.90 | 191.45 | Cisco Channel 3 | ADVA Channel 19145 | |
DWDM ITU Channel 15 | 1565.50 | 191.50 | Cisco Channel 4 | ADVA Channel 19150 | |
DWDM ITU Channel 15.5 | 1565.09 | 191.55 | Cisco Channel 5 | ADVA Channel 19155 | |
DWDM ITU Channel 16 | 1564.68 | 191.60 | Cisco Channel 6 | ADVA Channel 19160 | |
DWDM ITU Channel 16.5 | 1564.27 | 191.65 | Cisco Channel 7 | ADVA Channel 19165 | |
DWDM ITU Channel 17 | 1563.86 | 191.70 | Cisco Channel 8 | ADVA Channel 19170 | |
DWDM ITU Channel 17.5 | 1563.45 | 191.75 | Cisco Channel 9 | ADVA Channel 19175 | |
DWDM ITU Channel 18 | 1563.05 | 191.80 | Cisco Channel 10 | ADVA Channel 19180 | |
DWDM ITU Channel 18.5 | 1562.64 | 191.85 | Cisco Channel 11 | ADVA Channel 19185 | |
DWDM ITU Channel 19 | 1562.23 | 191.90 | Cisco Channel 12 | ADVA Channel 19190 | |
DWDM ITU Channel 19.5 | 1561.83 | 191.95 | Cisco Channel 13 | ADVA Channel 19195 | |
DWDM ITU Channel 20 | 1561.42 | 192.00 | Cisco Channel 14 | ADVA Channel 19200 (#D32) | |
DWDM ITU Channel 20.5 | 1561.01 | 192.05 | Cisco Channel 15 | ADVA Channel 19205 | |
DWDM ITU Channel 21 | 1560.61 | 192.10 | Cisco Channel 16 | Cisco C-Band Channel 32 | ADVA Channel 19210 (#D31) |
DWDM ITU Channel 21.5 | 1560.20 | 192.15 | Cisco Channel 17 | ADVA Channel 19215 | |
DWDM ITU Channel 22 | 1559.79 | 192.20 | Cisco Channel 18 | Cisco C-Band Channel 31 | ADVA Channel 19220 (#D30) |
DWDM ITU Channel 22.5 | 1559.39 | 192.25 | Cisco Channel 19 | ADVA Channel 19225 | |
DWDM ITU Channel 23 | 1558.98 | 192.30 | Cisco Channel 20 | Cisco C-Band Channel 30 | ADVA Channel 19230 (#D29) |
DWDM ITU Channel 23.5 | 1558.58 | 192.35 | Cisco Channel 21 | ADVA Channel 19235 | |
DWDM ITU Channel 24 | 1558.17 | 192.40 | Cisco Channel 22 | Cisco C-Band Channel 29 | ADVA Channel 19240 (#DC8) |
DWDM ITU Channel 24.5 | 1557.77 | 192.45 | Cisco Channel 23 | ADVA Channel 19245 | |
DWDM ITU Channel 25 | 1557.36 | 192.50 | Cisco Channel 24 | ADVA Channel 19250 (#D28) | |
DWDM ITU Channel 25.5 | 1556.96 | 192.55 | Cisco Channel 25 | ADVA Channel 19255 | |
DWDM ITU Channel 26 | 1556.55 | 192.60 | Cisco Channel 26 | Cisco C-Band Channel 28 | ADVA Channel 19260 (#D27) |
DWDM ITU Channel 26.5 | 1556.15 | 192.65 | Cisco Channel 27 | ADVA Channel 19265 | |
DWDM ITU Channel 27 | 1555.75 | 192.70 | Cisco Channel 28 | Cisco C-Band Channel 27 | ADVA Channel 19270 (#D26) |
DWDM ITU Channel 27.5 | 1555.34 | 192.75 | Cisco Channel 29 | ADVA Channel 19275 | |
DWDM ITU Channel 28 | 1554.94 | 192.80 | Cisco Channel 30 | Cisco C-Band Channel 26 | ADVA Channel 19280 (#D25) |
DWDM ITU Channel 28.5 | 1554.54 | 192.85 | Cisco Channel 31 | ADVA Channel 19285 | |
DWDM ITU Channel 29 | 1554.13 | 192.90 | Cisco Channel 32 | Cisco C-Band Channel 25 | ADVA Channel 19290 (#DC7) |
DWDM ITU Channel 29.5 | 1553.73 | 192.95 | Cisco Channel 33 | ADVA Channel 19295 | |
DWDM ITU Channel 30 | 1553.33 | 193.00 | Cisco Channel 34 | ADVA Channel 19300 (#D24) | |
DWDM ITU Channel 30.5 | 1552.93 | 193.05 | Cisco Channel 35 | ADVA Channel 19305 | |
DWDM ITU Channel 31 | 1552.52 | 193.10 | Cisco Channel 36 | Cisco C-Band Channel 24 | ADVA Channel 19310 (#D23) |
DWDM ITU Channel 31.5 | 1552.12 | 193.15 | Cisco Channel 37 | ADVA Channel 19315 | |
DWDM ITU Channel 32 | 1551.72 | 193.20 | Cisco Channel 38 | Cisco C-Band Channel 23 | ADVA Channel 19320 (#D22) |
DWDM ITU Channel 32.5 | 1551.32 | 193.25 | Cisco Channel 39 | ADVA Channel 19325 | |
DWDM ITU Channel 33 | 1550.92 | 193.30 | Cisco Channel 40 | Cisco C-Band Channel 22 | ADVA Channel 19330 (#D21) |
DWDM ITU Channel 33.5 | 1550.52 | 193.35 | Cisco Channel 41 | ADVA Channel 19335 | |
DWDM ITU Channel 34 | 1550.12 | 193.40 | Cisco Channel 42 | Cisco C-Band Channel 21 | ADVA Channel 19340 (#DC6) |
DWDM ITU Channel 34.5 | 1549.72 | 193.45 | Cisco Channel 43 | ADVA Channel 19345 | |
DWDM ITU Channel 35 | 1549.32 | 193.50 | Cisco Channel 44 | ADVA Channel 19350 (#D20) | |
DWDM ITU Channel 35.5 | 1548.91 | 193.55 | Cisco Channel 45 | ADVA Channel 19355 | |
DWDM ITU Channel 36 | 1548.51 | 193.60 | Cisco Channel 46 | Cisco C-Band Channel 20 | ADVA Channel 19360 (#D19) |
DWDM ITU Channel 36.5 | 1548.11 | 193.65 | Cisco Channel 47 | ADVA Channel 19365 | |
DWDM ITU Channel 37 | 1547.72 | 193.70 | Cisco Channel 48 | Cisco C-Band Channel 19 | ADVA Channel 19370 (#D18) |
DWDM ITU Channel 37.5 | 1547.32 | 193.75 | Cisco Channel 49 | ADVA Channel 19375 | |
DWDM ITU Channel 38 | 1546.92 | 193.80 | Cisco Channel 50 | Cisco C-Band Channel 18 | ADVA Channel 19380 (#D17) |
DWDM ITU Channel 38.5 | 1546.52 | 193.85 | Cisco Channel 51 | ADVA Channel 19385 | |
DWDM ITU Channel 39 | 1546.12 | 193.90 | Cisco Channel 52 | Cisco C-Band Channel 17 | ADVA Channel 19390 (#DC5) |
DWDM ITU Channel 39.5 | 1545.72 | 193.95 | Cisco Channel 53 | ADVA Channel 19395 | |
DWDM ITU Channel 40 | 1545.32 | 194.00 | Cisco Channel 54 | ADVA Channel 19400 (#DC9) | |
DWDM ITU Channel 40.5 | 1544.92 | 194.05 | Cisco Channel 55 | ADVA Channel 19405 | |
DWDM ITU Channel 41 | 1544.53 | 194.10 | Cisco Channel 56 | Cisco C-Band Channel 16 | ADVA Channel 19410 (#DC4) |
DWDM ITU Channel 41.5 | 1544.13 | 194.15 | Cisco Channel 57 | ADVA Channel 19415 | |
DWDM ITU Channel 42 | 1543.73 | 194.20 | Cisco Channel 58 | Cisco C-Band Channel 15 | ADVA Channel 19420 (#D16) |
DWDM ITU Channel 42.5 | 1543.33 | 194.25 | Cisco Channel 59 | ADVA Channel 19425 | |
DWDM ITU Channel 43 | 1542.94 | 194.30 | Cisco Channel 60 | Cisco C-Band Channel 14 | ADVA Channel 19430 (#D15) |
DWDM ITU Channel 43.5 | 1542.54 | 194.35 | Cisco Channel 61 | ADVA Channel 19435 | |
DWDM ITU Channel 44 | 1542.14 | 194.40 | Cisco Channel 62 | Cisco C-Band Channel 13 | ADVA Channel 19440 (#D14) |
DWDM ITU Channel 44.5 | 1541.75 | 194.45 | Cisco Channel 63 | ADVA Channel 19445 | |
DWDM ITU Channel 45 | 1541.35 | 194.50 | Cisco Channel 64 | ADVA Channel 19450 (#D13) | |
DWDM ITU Channel 45.5 | 1540.95 | 194.55 | Cisco Channel 65 | ADVA Channel 19455 | |
DWDM ITU Channel 46 | 1540.56 | 194.60 | Cisco Channel 66 | Cisco C-Band Channel 12 | ADVA Channel 19460 (#DC3) |
DWDM ITU Channel 46.5 | 1540.16 | 194.65 | Cisco Channel 67 | ADVA Channel 19465 | |
DWDM ITU Channel 47 | 1539.77 | 194.70 | Cisco Channel 68 | Cisco C-Band Channel 11 | ADVA Channel 19470 (#D12) |
DWDM ITU Channel 47.5 | 1539.37 | 194.75 | Cisco Channel 69 | ADVA Channel 19475 | |
DWDM ITU Channel 48 | 1538.98 | 194.80 | Cisco Channel 70 | Cisco C-Band Channel 10 | ADVA Channel 19480 (#D11) |
DWDM ITU Channel 48.5 | 1538.58 | 194.85 | Cisco Channel 71 | ADVA Channel 19485 | |
DWDM ITU Channel 49 | 1538.19 | 194.90 | Cisco Channel 72 | Cisco C-Band Channel 9 | ADVA Channel 19490 (#D10) |
DWDM ITU Channel 49.5 | 1537.79 | 194.95 | Cisco Channel 73 | ADVA Channel 19495 | |
DWDM ITU Channel 50 | 1537.40 | 195.00 | Cisco Channel 74 | ADVA Channel 19500 (#D09) | |
DWDM ITU Channel 50.5 | 1537.00 | 195.05 | Cisco Channel 75 | ADVA Channel 19505 | |
DWDM ITU Channel 51 | 1536.61 | 195.10 | Cisco Channel 76 | Cisco C-Band Channel 8 | ADVA Channel 19510 (#DC2) |
DWDM ITU Channel 51.5 | 1536.22 | 195.15 | Cisco Channel 77 | ADVA Channel 19515 | |
DWDM ITU Channel 52 | 1535.82 | 195.20 | Cisco Channel 78 | Cisco C-Band Channel 7 | ADVA Channel 19520 (#D08) |
DWDM ITU Channel 52.5 | 1535.43 | 195.25 | Cisco Channel 79 | ADVA Channel 19525 | |
DWDM ITU Channel 53 | 1535.04 | 195.30 | Cisco Channel 80 | Cisco C-Band Channel 6 | ADVA Channel 19530 (#D07) |
DWDM ITU Channel 53.5 | 1534.64 | 195.35 | Cisco Channel 81 | ADVA Channel 19535 | |
DWDM ITU Channel 54 | 1534.25 | 195.40 | Cisco Channel 82 | Cisco C-Band Channel 5 | ADVA Channel 19540 (#D06) |
DWDM ITU Channel 54.5 | 1533.86 | 195.45 | Cisco Channel 83 | ADVA Channel 19545 | |
DWDM ITU Channel 55 | 1533.47 | 195.50 | Cisco Channel 84 | ADVA Channel 19550 (#D05) | |
DWDM ITU Channel 55.5 | 1533.07 | 195.55 | Cisco Channel 85 | ADVA Channel 19555 | |
DWDM ITU Channel 56 | 1532.68 | 195.60 | Cisco Channel 86 | Cisco C-Band Channel 4 | ADVA Channel 19560 (#DC1) |
DWDM ITU Channel 56.5 | 1532.29 | 195.65 | Cisco Channel 87 | ADVA Channel 19565 | |
DWDM ITU Channel 57 | 1531.90 | 195.70 | Cisco Channel 88 | Cisco C-Band Channel 3 | ADVA Channel 19570 (#D04) |
DWDM ITU Channel 57.5 | 1531.51 | 195.75 | Cisco Channel 89 | ADVA Channel 19575 | |
DWDM ITU Channel 58 | 1531.12 | 195.80 | Cisco Channel 90 | Cisco C-Band Channel 2 | ADVA Channel 19580 (#D03) |
DWDM ITU Channel 58.5 | 1530.72 | 195.85 | Cisco Channel 91 | ADVA Channel 19585 | |
DWDM ITU Channel 59 | 1530.33 | 195.90 | Cisco Channel 92 | Cisco C-Band Channel 1 | ADVA Channel (#D02) |
DWDM ITU Channel 59.5 | 1529.94 | 195.95 | Cisco Channel 93 | ADVA Channel 19595 | |
DWDM ITU Channel 60 | 1529.55 | 196.00 | Cisco Channel 94 | ADVA Channel 19600 (#D01) | |
DWDM ITU Channel 60.5 | 1529.16 | 196.05 | Cisco Channel 95 | ||
DWDM ITU Channel 61 | 1528.77 | 196.10 | Cisco Channel 96 | ||
DWDM ITU Channel 61.5 | 1528.38 | 196.15 | |||
DWDM ITU Channel 62 | 1527.99 | 196.20 | |||
DWDM ITU Channel 62.5 | 1527.60 | 196.25 | |||
DWDM ITU Channel 63 | 1527.22 | 196.30 | |||
DWDM ITU Channel 63.5 | 1526.83 | 196.35 | |||
DWDM ITU Channel 64 | 1526.44 | 196.40 | |||
DWDM ITU Channel 64.5 | 1526.05 | 196.45 | |||
DWDM ITU Channel 65 | 1525.66 | 196.50 | |||
DWDM ITU Channel 65.5 | 1525.27 | 196.55 | |||
DWDM ITU Channel 66 | 1524.89 | 196.60 | |||
DWDM ITU Channel 66.5 | 1524.50 | 196.65 | |||
DWDM ITU Channel 67 | 1524.11 | 196.70 | |||
DWDM ITU Channel 67.5 | 1523.72 | 196.75 | |||
DWDM ITU Channel 68 | 1523.34 | 196.80 | |||
DWDM ITU Channel 68.5 | 1522.95 | 196.85 | |||
DWDM ITU Channel 69 | 1522.56 | 196.90 | |||
DWDM ITU Channel 69.5 | 1522.18 | 196.95 | |||
DWDM ITU Channel 70 | 1521.79 | 197.00 | |||
DWDM ITU Channel 70.5 | 1521.40 | 197.05 | |||
DWDM ITU Channel 71 | 1521.02 | 197.10 | |||
DWDM ITU Channel 71.5 | 1520.63 | 197.15 | |||
DWDM ITU Channel 72 | 1520.25 | 197.20 | |||
DWDM ITU Channel 72.5 | 1519.86 | 197.25 | |||
DWDM ITU Channel 73 | 1519.48 | 197.30 | |||
DWDM ITU Channel 73.5 | 1519.09 | 197.35 | |||
DWDM ITU Channel 74 | 1518.71 | 197.40 | |||
DWDM ITU Channel 74.5 | 1518.32 | 197.45 | |||
DWDM ITU Channel 75 | 1517.94 | 197.50 | |||
DWDM ITU Channel 75.5 | 1517.55 | 197.55 | |||
DWDM ITU Channel 76 | 1517.17 | 197.60 | |||
DWDM ITU Channel 76.5 | 1516.78 | 197.65 | |||
DWDM ITU Channel 77 | 1516.40 | 197.70 | |||
DWDM ITU Channel 77.5 | 1516.02 | 197.75 | |||
DWDM ITU Channel 78 | 1515.63 | 197.80 | |||
DWDM ITU Channel 78.5 | 1515.25 | 197.85 | |||
DWDM ITU Channel 79 | 1514.87 | 197.90 | |||
DWDM ITU Channel 79.5 | 1514.49 | 197.95 |
CWDM ITU Channels
Wavelength (in nm) | Frequency (in THz) |
---|---|
1271 | 235.87 |
1291 | 232.22 |
1311 | 228.67 |
1331 | 225.24 |
1351 | 221.90 |
1371 | 218.67 |
1391 | 215.52 |
1411 | 212.47 |
1431 | 209.50 |
1451 | 206.61 |
1471 | 203.80 |
1491 | 201.07 |
1511 | 198.41 |
1531 | 195.81 |
1551 | 193.29 |
1571 | 190.83 |
1591 | 188.43 |
1611 | 186.09 |
Information for the different wavelength bands:
- O-Band: 1270nm to 1370nm
- E-Band: 1371nm to 1470nm
- S-Band: 1471nm to 1530nm
- C-Band: 1531nm to 1570nm
- L-Band: 1571nm to 1611nm
