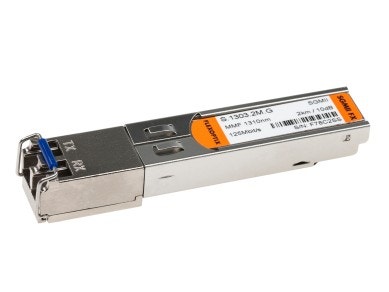

1G SFP SX SGMII 2 km, λ1310 nm, DDM, LC-Duplex, Multimode
- 1310 nm
- 2 km
- 1.25 G
- 100M ETH
- 1G ETH
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Multimode |
| Compliance Code | SX SGMII |
| Operating Temperature | Standard |
| Distance | 2 km |
| Temperature Range | 0°C - 70°C |
| Bandwidth | 125 Mbit/s - 1.25 Gbit/s |
| Digital Diagnostic Monitoring (DDM) | Yes, internally calibrated |
| Power Consumption | 1 W |
|---|---|
| CDR | none |
| SGMII | Yes |
| Inbuilt FEC | No |
| Powerbudget (dB) | 10.5 dB |
| Transmit min/max per lane | -11.5 dBm / -3 dBm |
| Receiver min/max per lane | -22 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1360 nm |
| Wavelength RX (Typical) | 1310 nm |
|---|---|
| Wavelength RX (Range) | 1260 - 1620 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | Fast Ethernet, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to useCompatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- Nokia (ex. Alcatel-Lucent) 3HE04116AA compatible
- Siemens 6GK6000-8FE50-0AA0 compatible
