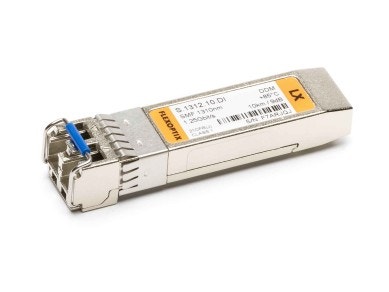

1G SFP LX Industrial 10 km, λ1310 nm, DDM, LC-Duplex, Singlemode
SFP
LX
Universal SFP Transceiver
Use FLEXBOX to configure to almost any vendor
For 1000BASE-LX Ethernet links
Supported Data Rates: 1.05 Gbit/s - 1.25 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Operating Temperature from -40°C to 85°C, Digital Diagnocstic Monitoring (DDM)
Specs
- 1310 nm
- 10 km
- 1.25 G
- Industrial
Protocols
- 1G ETH
- 1G FC
-
Alternatives
-
Matching Products
-
Alternatives
-
Matching Products
Specification
| Form Factor | SFP |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | LX |
| Operating Temperature | Industrial |
| Distance | 10 km |
| Temperature Range | -40°C - 85°C |
| Bandwidth | 1.05 Gbit/s - 1.25 Gbit/s |
| Digital Diagnostic Monitoring (DDM) | Yes, internally calibrated |
| Power Consumption | 1 W |
|---|---|
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 9 dB |
| Transmit min/max per lane | -9 dBm / -3 dBm |
| Receiver min/max per lane | -18 dBm / -3 dBm (overload) @1G |
| Wavelength TX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1260 - 1360 nm |
| Wavelength RX (Typical) | 1310 nm |
|---|---|
| Wavelength RX (Range) | 1260 - 1600 nm |
| Laser | FP |
| Receiver Type | PIN |
| Modulation | NRZ @1G |
| Extinction Ratio | 9 dB |
| Supported Protocols | 1G Fibre Channel, Gigabit Ethernet |
Transceiver Configuration with FLEXBOX
It's that easy to use
Insert into the FLEXBOX
Select and Configure
Use with Device
Compatibility
All trademarks, registered companies & references cited are the sole property of their respective company and are used solely to assist in the identification of products.
- MSA Standard compatible
- ABB 3BSE080219R1 compatible
- ADTRAN 1184561PG1 compatible
- ADVA 1061705850-02 compatible
- Alcatel-Lucent Ent. ISFP-GIG-LX compatible
- Allied Telesis AT-SPLX10/I compatible
- Allnet ALL4751-INDU compatible
- Arista 3rd_Party SFP-1G-LX compatible
- Arista SFP-1G-LX compatible
- Aruba Networks(ex. HP Network) J4859C compatible
- Aruba Networks(ex. HP Network) J4859D compatible
- Aviat Networks 079-422656-001 compatible
- Axis T8611 compatible
- barox AC-SFP-LX-E-10 compatible
- Blackbox LFP413 compatible
- Broadcom SFP LX compatible
- Brocade / Ruckus E1MG-LX-OM compatible
- Brocade E1MG-LX-OM compatible
- Calix 100-01662 compatible
- Cambium Networks SFP-1G-LX compatible
- Ceragon SFP-GE-LX-EXT-TEMP compatible
- Ciena XCVR-010Y31 compatible
- Ciena XCVR-A10Y31 compatible
- Cisco (ex. Meraki) MA-SFP-1GB-LX10 compatible
- Cisco Systems (ex. Linksys) MGBLX1 compatible
- Cisco Systems GLC-LH-SMD compatible
- Cisco Systems GLC-LX-SM-RGD compatible
- Cisco Systems SFP-GE-L compatible
- ComNet SFP-6 compatible
- CTC Union ISFP-S7020-31-D compatible
- D-LINK DEM-310GT compatible
- Dell 320-2879 compatible
- Dell 331-5309 compatible
- Dell 407-BBOO compatible
- Digitus DN-81011 compatible
- Extreme (ex. Enterasys) I-MGBIC-GLX compatible
- Extreme 10052H compatible
- FibroLAN SF1G-LX1 compatible
- Fortinet FN-TRAN-LX compatible
- Fortinet FR-TRAN-LX compatible
- Guntermann & Drunck SFP-LXI compatible
- Hirschmann M-SFP-LX/LC EEC compatible
- HP H3C JD119B compatible
- Huawei eSFP-GE-LX-SM1310 compatible
- Infinera (ex. Transmode) TRX100075 compatible
- Intel SFP LX compatible
- Juniper EX-SFP-1GE-LX compatible
- Juniper QFX-SFP-1GE-LX compatible
- Juniper SFP-1GE-LX compatible
- Juniper SRX-SFP-1GE-LX-ET compatible
- Keymile 37973010 compatible
- Korenix SFPGLX10D-w compatible
- KTI Networks SFP-GLS-10A-A compatible
- kvm-tec KT-7010 compatible
- LANCOM SFP-LX-LC1 compatible
- Lantronix TN-SFP-LX1T compatible
- LevelOne SFP-4210 compatible
- Luminex LU9000871 compatible
- MikroTik S-31DLC20D compatible
- Moxa SFP-1GLXLC-T compatible
- Net Insight NPA0012-L101 compatible
- Nexans 88645870 compatible
- Nexans 88646016 compatible
- Nokia (ex. Alcatel-Lucent) 1AB376720002 compatible
- Nokia (ex. Alcatel-Lucent) 3CC50396AA compatible
- Nokia (ex. Alcatel-Lucent) 3FE25774AA01 compatible
- Nokia (ex. Alcatel-Lucent) 3HE00028CA compatible
- Nokia Networks FOSC 471880A.101 compatible
- Nokia-Siemens (ex. Atrica) AT10006-ID-R compatible
- OpenGear 569025 compatible
- Overture 3000-167 compatible
- Packetlight SL6 compatible
- Palo Alto Networks PAN-SFP-LX compatible
- Perle PSFP-1000D-S2LC10-XT compatible
- Phoenix Contact FL SFP LX10-B compatible
- Planet MGB-TLX compatible
- RAD SFP-6DH compatible
- Radware 9062066 compatible
- Redlion NTSFP-LX-10 compatible
- Ribbon (ex. ECI) OTGBE-LX compatible
- Rockwell 1783-SFP1GLX compatible
- SAF Tehnika I0AOM001 compatible
- Siemens 6GK5992-1AM00-8AA0 compatible
- Siemens SFP992-1LD compatible
- SonicWALL 01-SSC-9790 compatible
- Sophos ITFZTCHLX compatible
- Telco Systems BTI-MGBIC-GLX-DD-T-LC compatible
- Teleste MSG211A compatible
- Teleste MWG211A compatible
- Teltonika DS-SFP112X-ECE0_1.25G SR SFP TX-A1 compatible
- TP-LINK TL-SM311LS compatible
- Transition Networks TN-SFP-LX compatible
- Ubiquiti Networks SFP LX compatible
- Wago 852-1210 compatible
- Westermo 1100-0541 compatible
- Zyxel SFP-LX-10-D compatible
Your vendor / compatibility is missing?
